MFX009S-7A2-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MFX009S-7A2-1

MFX009S-7A2-1: DescriptionD Microminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size157KB，2 Pages; ManufacturerCristek Interconnects Inc

Download Datasheet Parametric View All

MFX009S-7A2-1 Overview

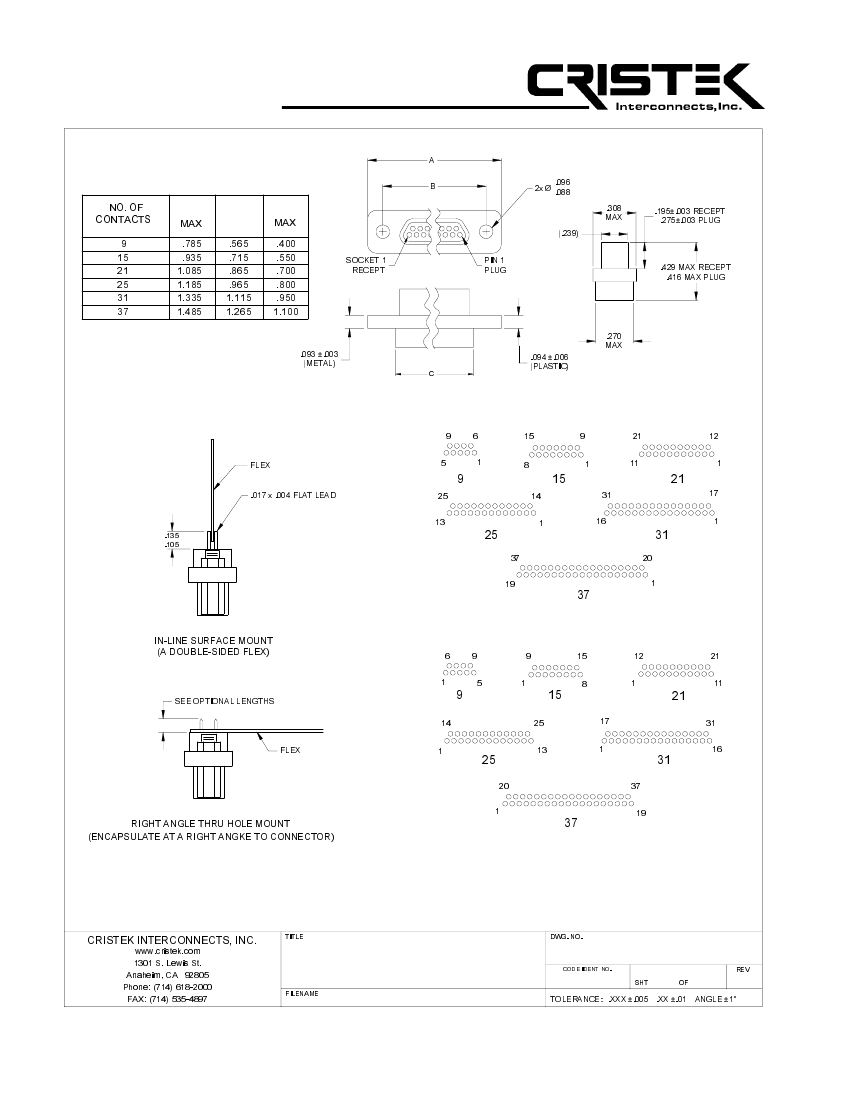

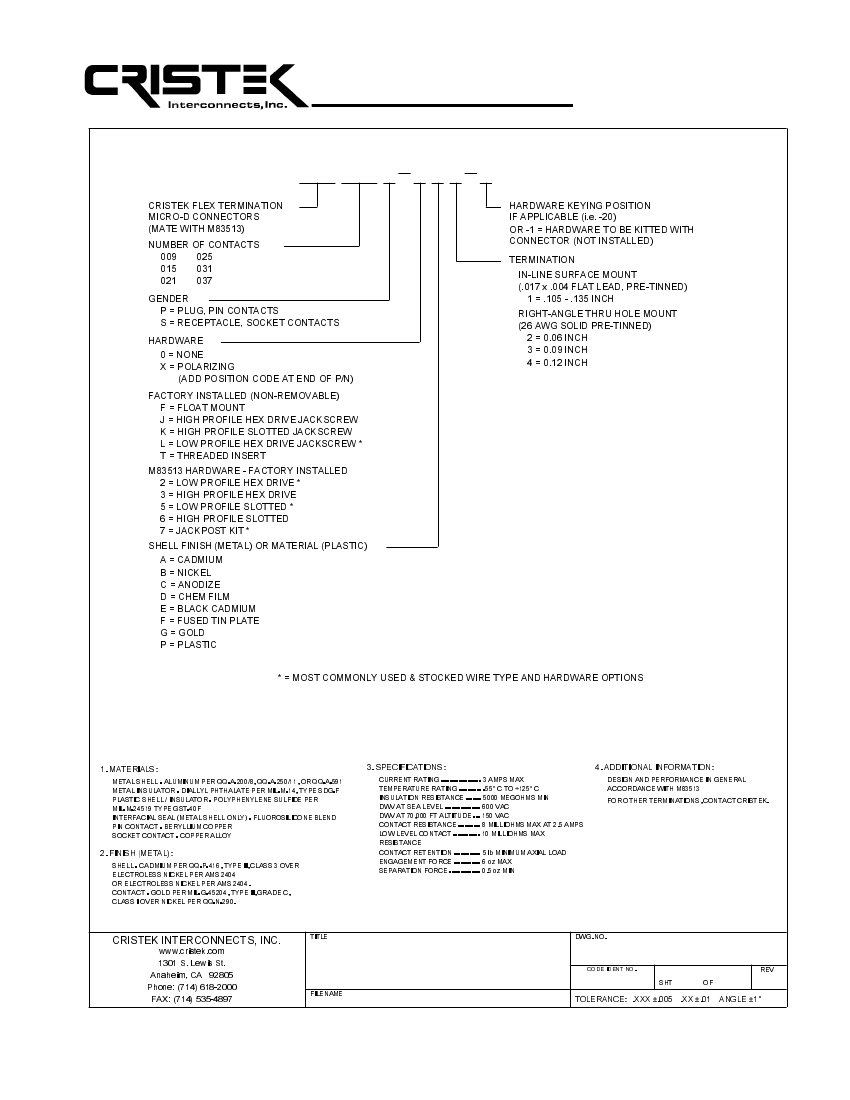

D Microminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,

MFX009S-7A2-1 Parametric

Parameter Name	Attribute value
Maker	Cristek Interconnects Inc
Reach Compliance Code	compliant
Other features	STANDARDS: MIL-PRF-83513
Body/casing type	RECEPTACLE
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	MFX
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Housing size	A
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All
