Datasheet> All Categories > Discrete semiconductor> diode> LS55

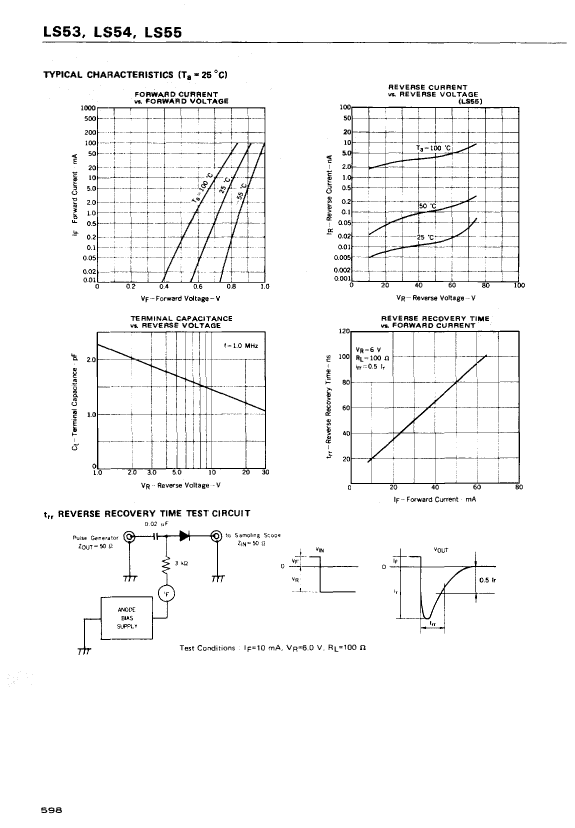

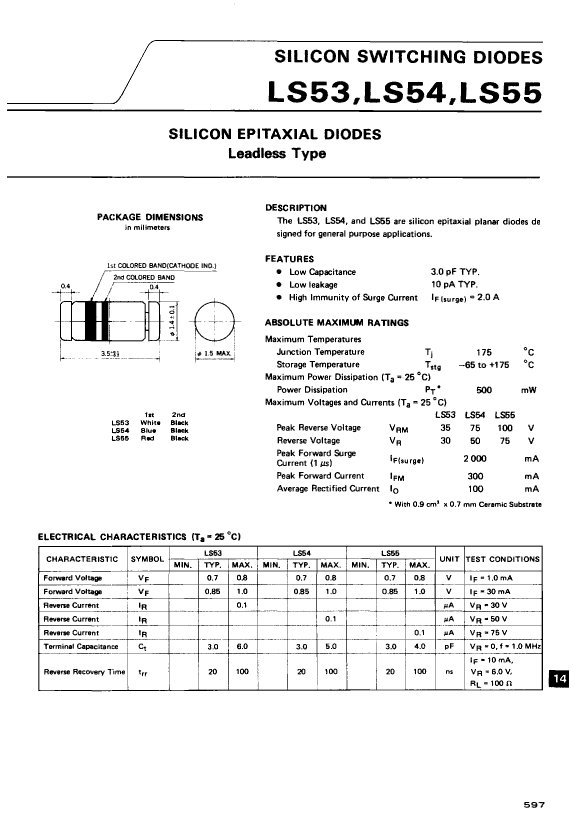

Preview

LS55: DescriptionRectifier Diode, 1 Element, 0.1A, Silicon, GLASS PACKAGE-2; CategoryDiscrete semiconductor diode; File Size56KB，2 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

LS55 Overview

Rectifier Diode, 1 Element, 0.1A, Silicon, GLASS PACKAGE-2

LS55 Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	GLASS PACKAGE-2
Reach Compliance Code	unknown
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	O-LELF-R2
Maximum non-repetitive peak forward current	2 A
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	0.1 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Maximum reverse current	0.1 µA
Maximum reverse recovery time	0.1 µs
surface mount	YES
Terminal form	WRAP AROUND
Terminal location	END

Preview

Download Datasheet

View All

LS55 Related Products

	LS55	LS54-T2	LS55-T1	LS55-T2	LS54	LS54-T1
Description	Rectifier Diode, 1 Element, 0.1A, Silicon, GLASS PACKAGE-2	Rectifier Diode, 1 Element, 0.1A, Silicon, GLASS PACKAGE-2	Rectifier Diode, 1 Element, 0.1A, Silicon, GLASS PACKAGE-2	Rectifier Diode, 1 Element, 0.1A, Silicon, GLASS PACKAGE-2	Rectifier Diode, 1 Element, 0.1A, Silicon, GLASS PACKAGE-2	Rectifier Diode, 1 Element, 0.1A, Silicon, GLASS PACKAGE-2
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	GLASS PACKAGE-2	GLASS PACKAGE-2	GLASS PACKAGE-2	GLASS PACKAGE-2	GLASS PACKAGE-2	GLASS PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V
JESD-30 code	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Maximum non-repetitive peak forward current	2 A	2 A	2 A	2 A	2 A	2 A
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum power dissipation	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA
Maximum reverse recovery time	0.1 µs	0.1 µs	0.1 µs	0.1 µs	0.1 µs	0.1 µs
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END	END	END
