J01001A0014: DescriptionRF BNC Connector, Female, Panel Mount, Cable Mount, Clamp Solder Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerTelegartner Karl Gartner GmbH; Websitehttps://www.telegaertner.com

Download Datasheet Parametric View All

J01001A0014 Overview

RF BNC Connector, Female, Panel Mount, Cable Mount, Clamp Solder Terminal, Jack, ROHS COMPLIANT

J01001A0014 Parametric

Parameter Name	Attribute value
Maker	Telegartner Karl Gartner GmbH
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARD: IEC 61169-8, 75 OHMS ALSO AVAILABLE, VSWR MAX AT 3 GHZ, APPLICABLE CABLE: RG 316/U
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	COPPER NICKEL GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	PE PTFE
JESD-609 code	e4
MIL compliance	NO
Plug information	NO
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CLAMP SOLDER
voltage standing wave ratio	1.22

Preview

Download Datasheet

View All

www.telegaertner.com

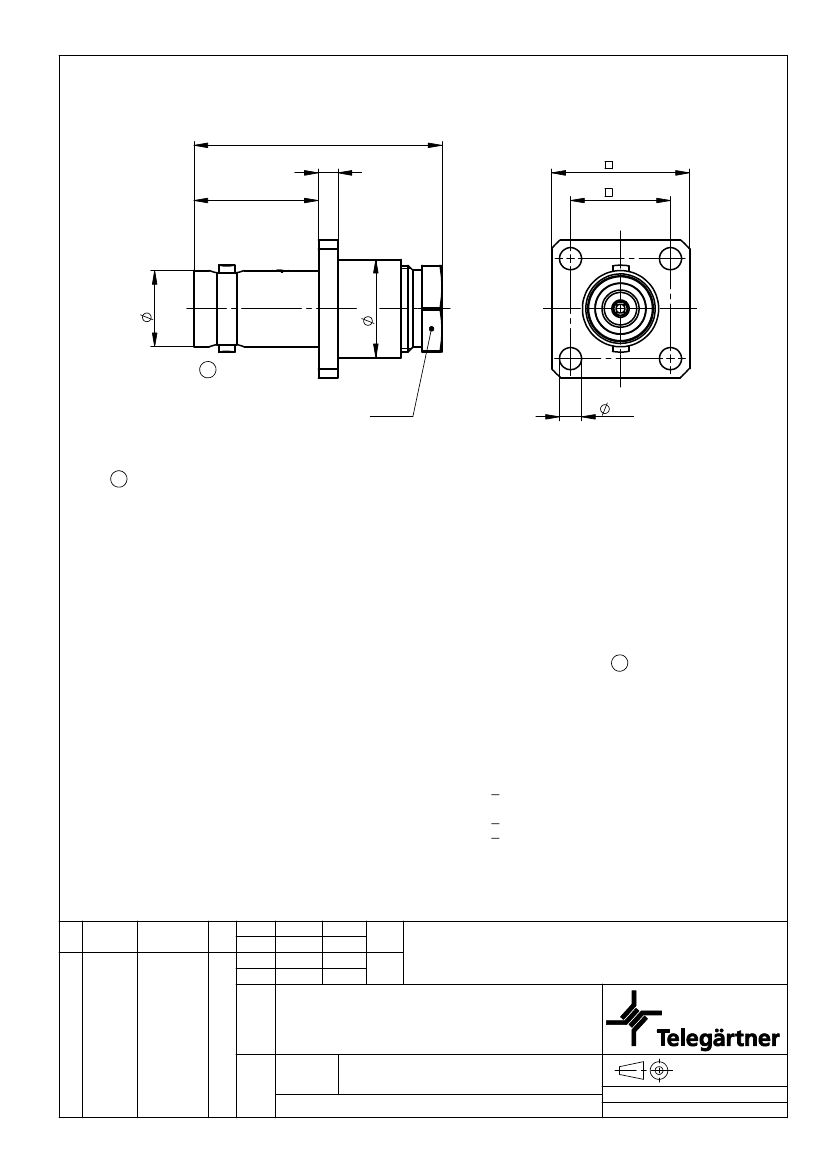

31,5

2,5

15,8

17,5

12,7

Fax: +49 7157/125-120

Phone: +49 7157/125-0

a

hex 11

2,8

Germany

a

D-71144 Steinenbronn Lerchenstrasse 35

Mechanical characteristics

cable group

interface dimensions acc. to

assembly code

centre conductor

outer conductor

mating life

panel piercing

Components

centre contact

other metal parts

insulator

gasket

impedance

frequency

voltage proof

insulation resistance

contact resistance

centre contact

outer contact

Mechanische Eigenschaften

Kabelgruppe

G 7: KX 22A, KX 3B, RG-174/U,

RG-188A/U, RG-316/U

Steckgesicht nach

Montageanleitung

Innenleiter

Außenleiter

Steckzyklen

Montagebohrung

Bauteile

Innenkontakt

sonstige Metallteile

Isolierung

Dichtung

IEC 61169-8

A09

solder / löt

clamp / klemm

>500

Z005

Materials / Material Finish / Oberfläche

CuBe2Pb

b NiP Au

CuZn39Pb3

Cu2Ni5

PTFE

silicone / Silikon

50

0 - 4 GHz

1,5 kV

eff

/ 50 Hz

>5G

< 20 m

<5m

2002/95/EC

K.Gärtner GmbH

Electrical characteristics

Elektrische Eigenschaften

Wellenwiderstand

Frequenz

Prüfspannung

Isolationswiderstand

Durchgangswiderstand

Innenkontakt

Außenkontakt

Umgebung

RoHS konform

Environmental

RoHS compliant

Änd./

rev.

Index

Änderungs-Nr. /

revision code

Datum/

date

Name/

name

Datum/

date

Name/

name

Gewicht/

weight

gez./

drawn

18.02.2013

MA

[g]

gepr./

appr.

11.04.2013

Benennung/

title

BJ

Maßstab/

scale

2:1

untol. Maße/

dim. without

tolerances

according to

BNC Bulkhead Jack

BNC-Kabeleinbaubuchse

Unterl./

doc. type

b

a

24609 18.02.2013 MA

20563 02.03.2009 BJ

K

Zeichnungsnr./

drawing no.

12,5

ca./approx.

9,7

J01001A0014

Maße/

dimensions

: mm

Original : DIN A4

Blatt/

sheet

1 von/

of

1

Ersatz für/

replaces

Zeichnung vom 08.03.1990
