803-99-056-10-004 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 803-99-056-10-004

803-99-056-10-004: DescriptionBoard Connector, 56 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

803-99-056-10-004 Overview

Board Connector, 56 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle

803-99-056-10-004 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: 1313-0-15-01-18-01-04-0
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	803
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	56
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

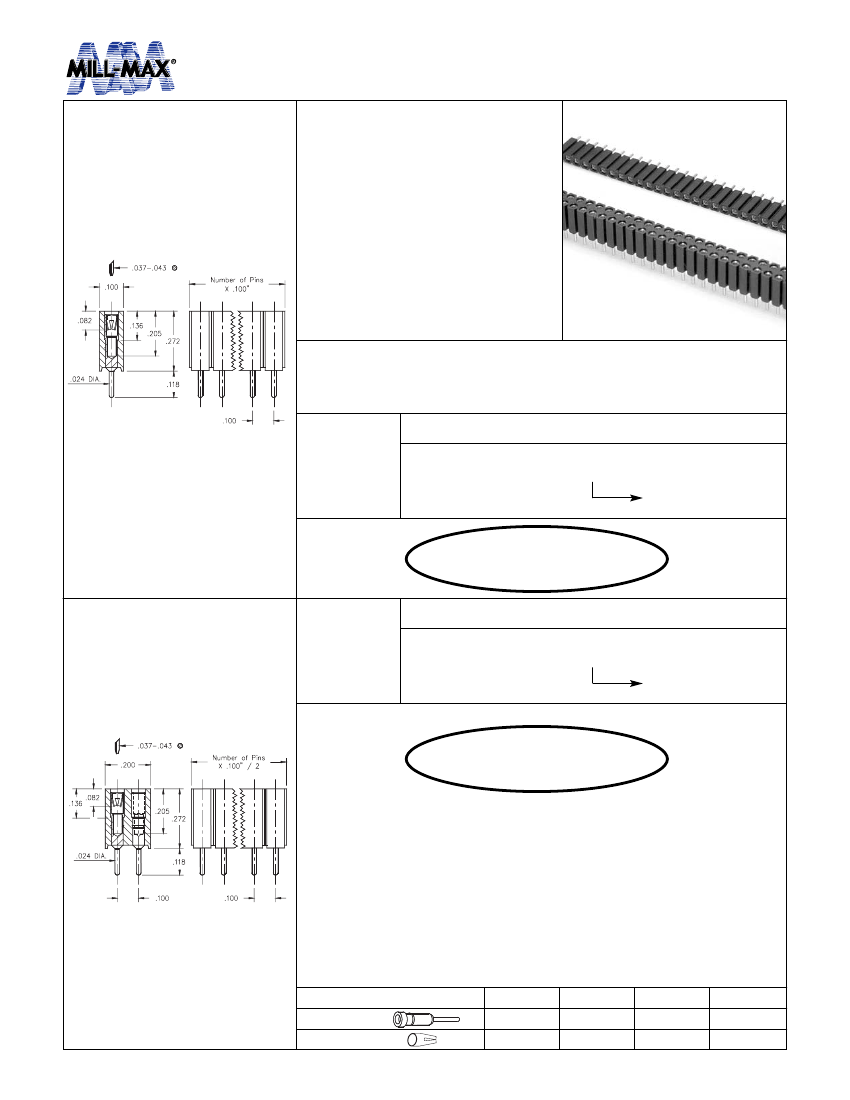

INTERCONNECTS

.040” dia. Pins

Single and Double Row

Series 801, 803

•

Receptacles accept .037”-.041”

diameter pins.

(MM# 1313 receptacles for

details see page 149)

Ordering Information

Single Row

Fig. 1

801-XX-0_ _-10-004

Specify # of pins

01-50

XX=

Plating Code

See Below

Double Row

Fig. 2

803-XX-_ _ _-10-004

Specify # of pins

002-100

XX=

Plating Code

See Below

Fig. 2

SPECIFY PLATING CODE XX=

30µ” Au

200µ”Sn/Pb

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb 200µ”Sn/Pb

w w w. m i l l - m a x . c o m

516-922-6000
