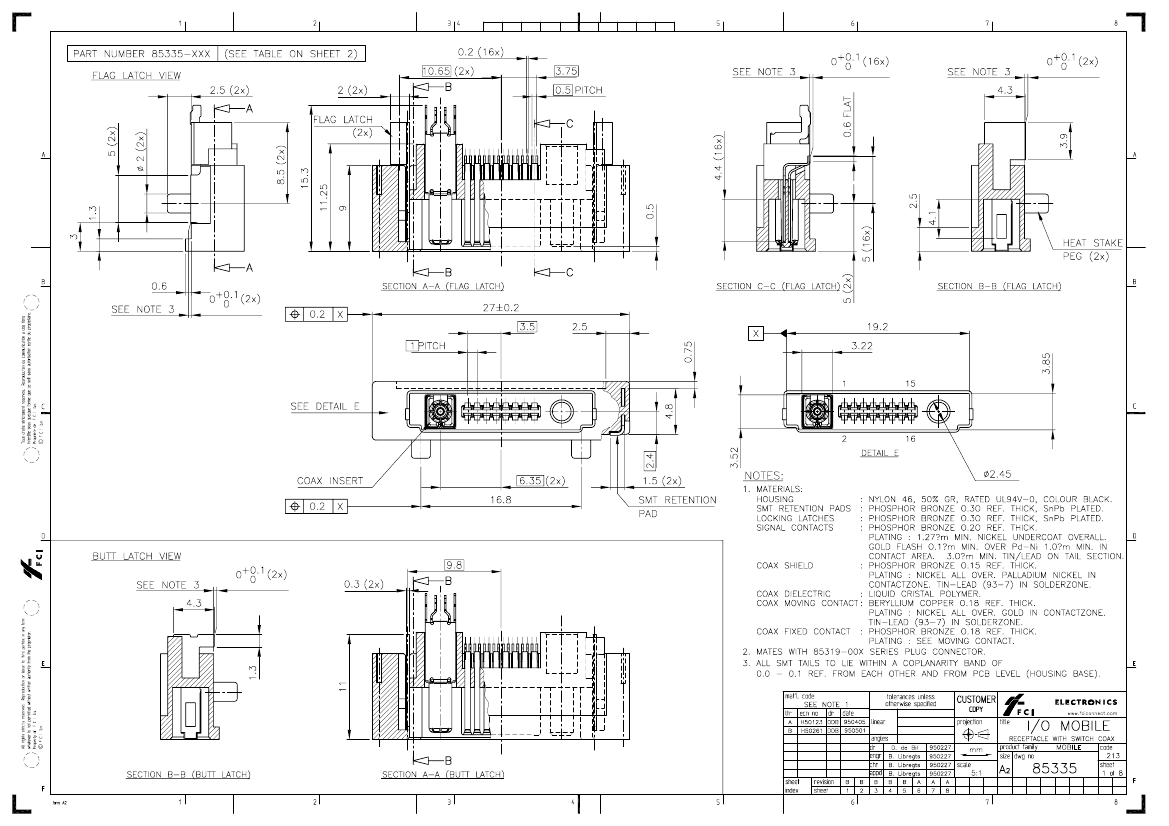

Preview

85335-111: DescriptionTelecom and Datacom Connector, 18 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size597KB，8 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

85335-111 Overview

Telecom and Datacom Connector, 18 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle

85335-111 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	LATCHED
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (4) OVER PALLADIUM NICKEL/NICKEL PALLADIUM GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD (118) OVER NICKEL/TIN LEAD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	85335
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	SURFACE MOUNT
Total number of contacts	18
UL Flammability Code	94V-0

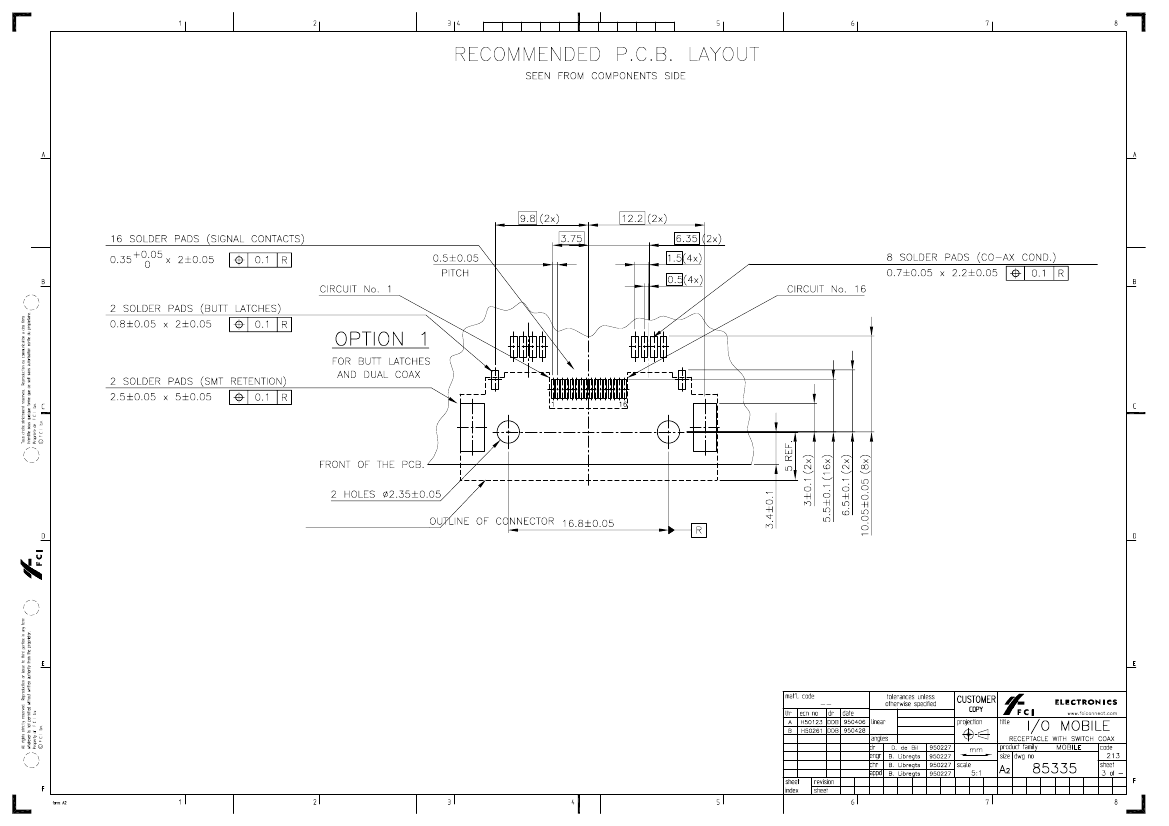

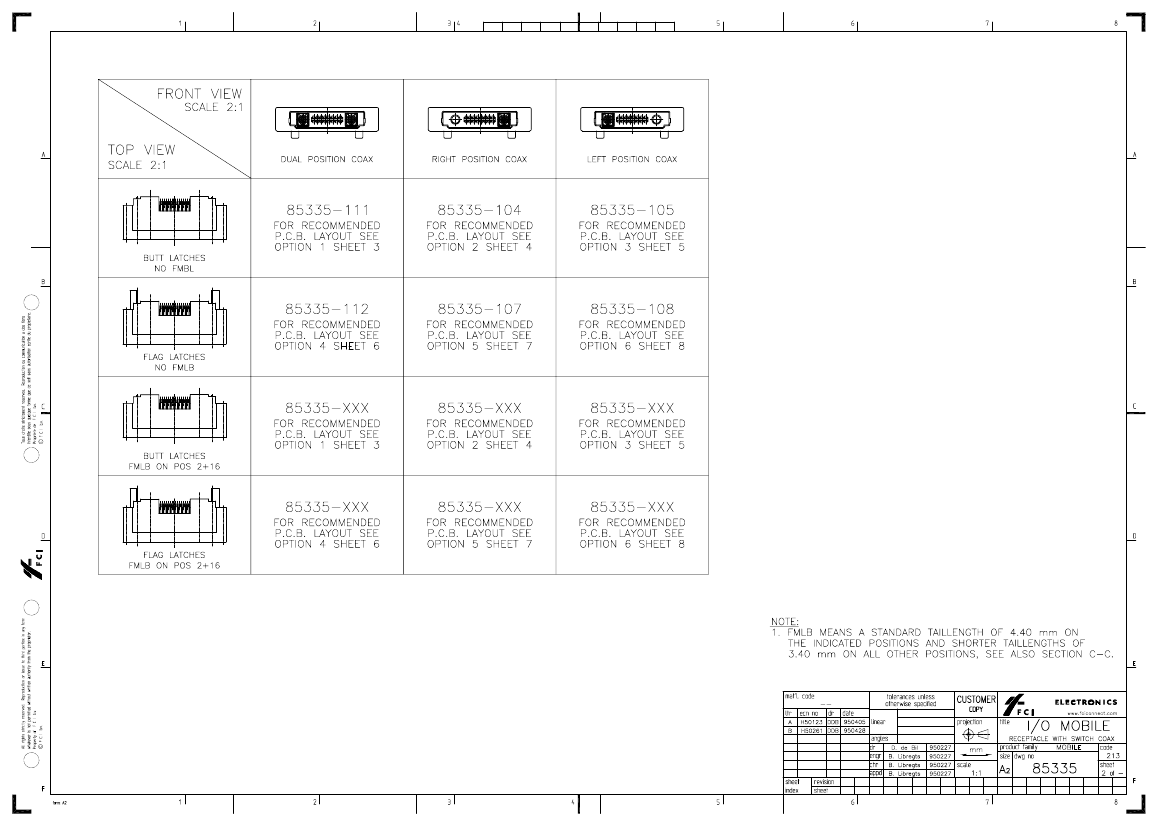

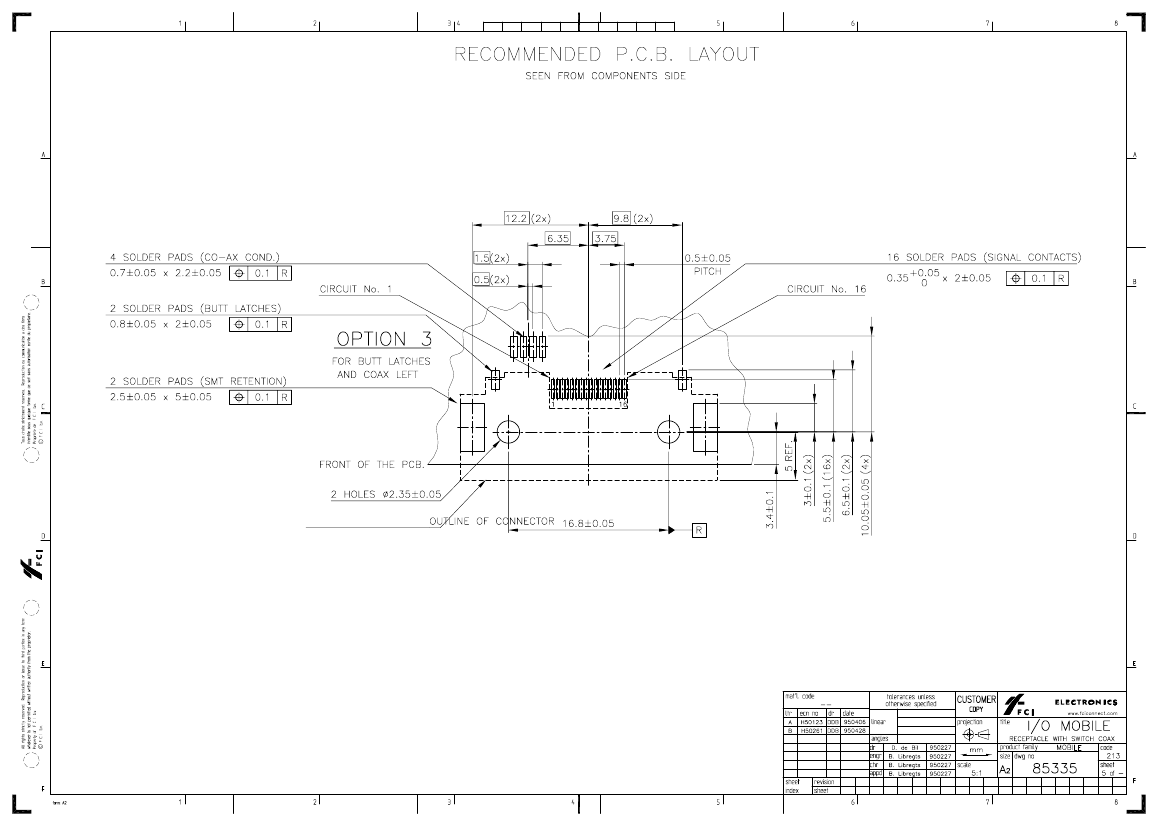

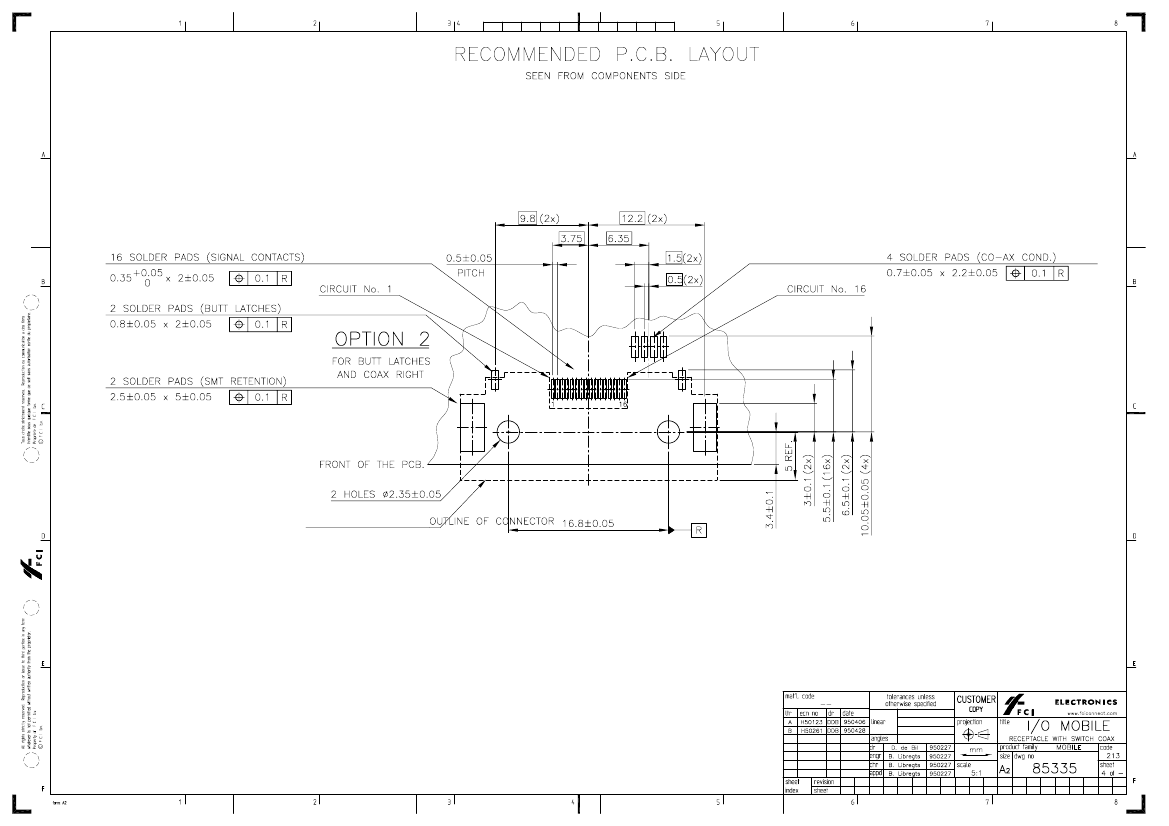

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Sep 29, 2009

.
