ASP4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> ASP4

ASP4: DescriptionElectric Fuse, 4A, 1000A (IR),; CategoryCircuit protection Circuit protection; File Size251KB，1 Pages; ManufacturerMersen; Websitehttps://www.mersen.com/; With over 135 years of experience, more than 50 industrial sites and 18 R&D centers in 35 countries, Mersen Electrical Power is a global expert in power and advanced materials for high-tech industries. They offer a broad portfolio of electrical protection and control products and provide solutions for power management applications. The Mersen team works with customers around the world to design and deliver custom solutions and essential products for the commercial, industrial, renewable energy, power electronics and electric vehicle markets. Mersen's mission is to make its customers' applications safer and more reliable.

Download Datasheet Parametric View All

ASP4 Overview

Electric Fuse, 4A, 1000A (IR),

ASP4 Parametric

Parameter Name	Attribute value
Maker	Mersen
Reach Compliance Code	compliant
body width	4 mm
body height	9 mm
Body length or diameter	11.2 mm
Circuit protection type	Electric Fuse
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	11.2mm x 4mm x 9mm
Rated breaking capacity	1000 A
Rated current	4 A
Rated voltage	32 V
Guideline	UL
Terminal shape	TAB/BLADE

ASP4 Preview

Download Datasheet

View All

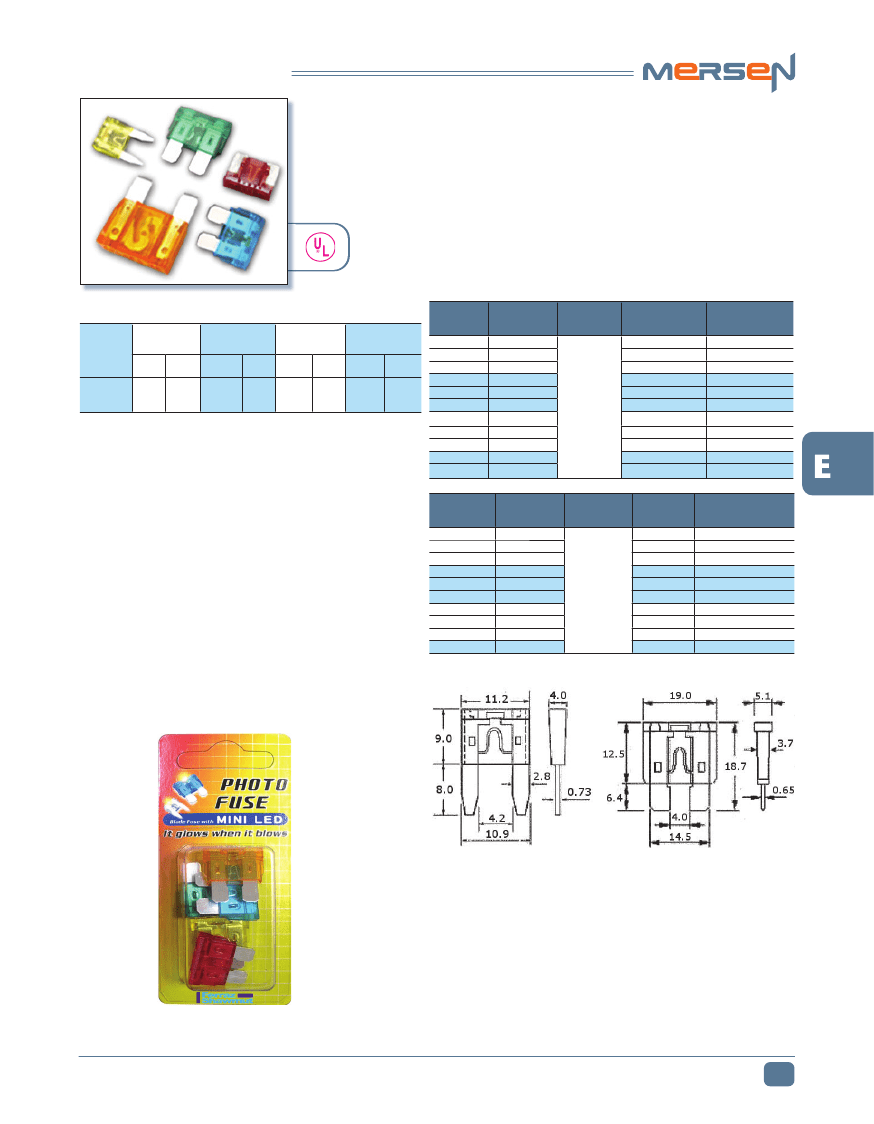

Automotive Fuses

Type ASP/ATP

Automotive Indicating

Electrical Characteristics

Rated

Current

2 ~ 40A

1.1 In

1.35 In

2 In

3.5 In

MIN MAX MIN MAX MIN MAX MIN MAX

100

Hrs

0.75 s 1.8 s 0.15 s

5 s 0.08 s 0.25 s

Part

Number

ATP3

ATP4

ATP5

ATP7-1/2

ATP10

ATP15

ATP20

ATP25

ATP30

ATP35

ATP40

Ampere

Rating [In]

7.5

Voltage

Rating (V)

Color

Code

Violet

Pink

Tan

Brown

Red

Blue

Yellow

Natural

Green

Blue Green

Amber

Cold Resistance

(Ohms)

0.031

0.023

0.018

0.011

0.0077

0.0048

0.0033

0.0025

0.0018

0.0016

0.0014

Interrupting Ratings

1000A at 32V

Precondition

J-STD-020 (Baking at 85C for 24hrs, Moisture storage at 85C /

60% R.H. for 165hrs)

Operating Life Test

JESD22-A113

Part

Number

ASP2

ASP3

ASP4

ASP5

ASP7-1/2

ASP10

ASP15

ASP20

ASP25

ASP30

Ampere

Rating [In]

7, 5

Voltage

Rating (V)

Color

Code

Grey

Violet

Pink

Tan

Brown

Red

Blue

Yellow

Natural

Green

Cold Resistance

(Ohms)

0, 056

0, 034

0, 024

0, 018

0, 011

0, 0077

0, 0045

0, 0032

0, 0023

0, 0018

Temperature Cycle

Solderability

Packaging:

JESD-A104-A (-40C 15min; +85C 15min 300 cycles, steady

within 5min.)

JESD22-B102-B (Accelerated aging 155C/24hrs)

Blister Pack:

5 pcs per pack

In Bulk:

100 pcs

ASP Series

ATP Series

Mersen Canada Toronto Inc.

88 Horner Avenue, Toronto,Ontario M8Z 5Y3

Tel: (416) 252-9381

Fax: (416) 252-6572

Web: www.ca-ferrazshawmut.mersen.com

E-mail: customerservice.tor@mersen.com
