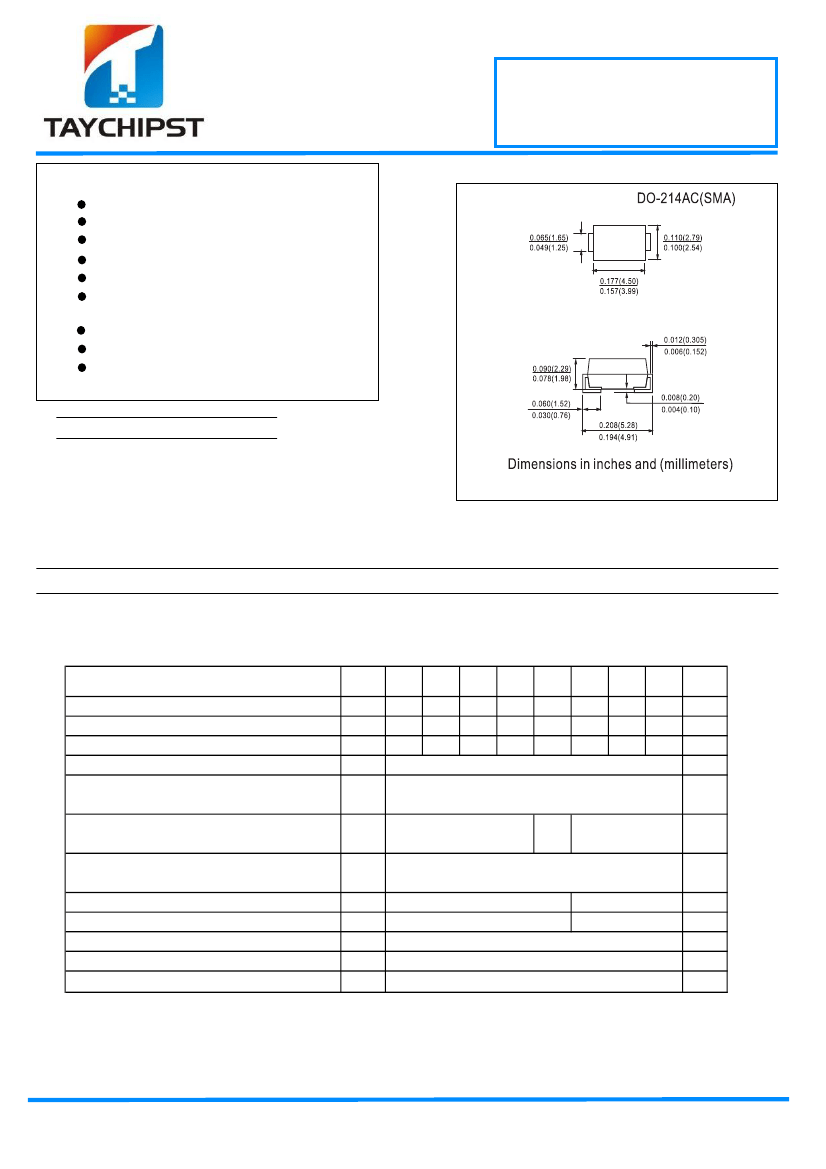

HS2AA THRU HS2MA
High Efficient Surface Mount Rectifiers
50V-1000V 1.5A
FEATURES
UL Recognized File # E-326243
Glass passivated junction chip.
For surface mounted application
Low forward voltage drop
Low profile package
Built-in stain relief, ideal for automatic
placement
Fast switching for high efficiency
High temperature soldering:
260℃/10 seconds at terminals
MECHANICAL DATA
Case: Molded plastic
Terminal: Pure tin plated, lead free
Polarity: Indicated by cathode band
Packing: 12mm tape per EIA STD RS-481
Weight: 0.064 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-
wave Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@ 1.5A
Maximum Reverse Current @ Rated VR T
A
=25
℃
T
A
=125
℃
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance (Note 4)
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θjA
T
J
T
STG
HS
2AA
50
35
50
HS
2BA
100
70
100
HS
2DA
200
140
200
HS
2FA
300
210
300
1.5
50
HS
2GA
400
280
400
HS
2JA
600
420
600
HS
2KA
800
560
800
HS
2MA
1000
700
1000
Unit
V
V
V
A
A
1.0
5
100
50
50
80
1.3
1.7
V
uA
75
30
O
nS
pF
C/W
O
O
- 55 to + 150
- 55 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Note 4: PCB Mount on 5mm x 5mm Copper Pad Area
E-mail: sales@taychipst.com
1 of 2
Web Site: www.taychipst.com
HS2AA THRU HS2MA
High Efficient Surface Mount Rectifiers
50V-1000V 1.5A
HS2AA THRU HS2MA

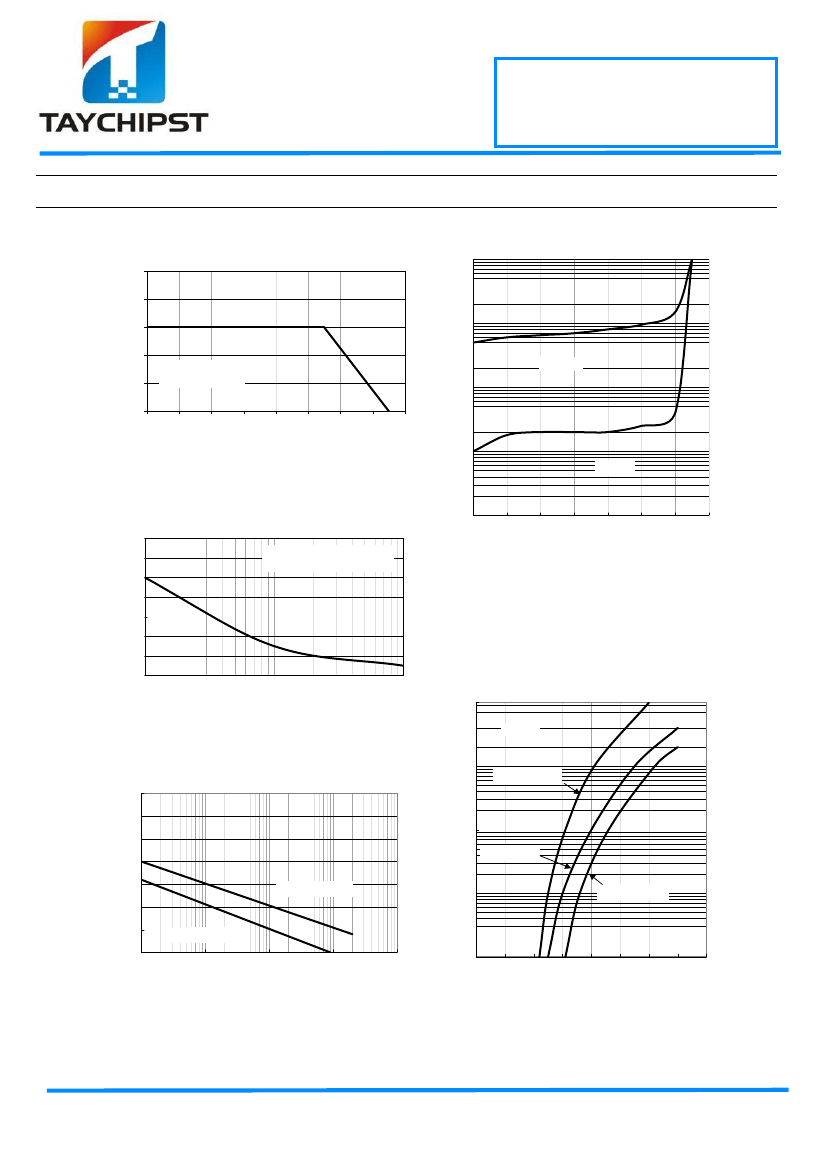

RATINGS AND CHARACTERISTIC CURVES
FIG.1 FORWARD CURRENT DERATING CURVE
2.5
AVERAGE FORWARD
CURRENT (A)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
1000
2
INSTANTANEOUS REVERSE CURRENT (uA)
1.5
1
0.5
0
0
20
40
60
80
100
120
LEAD TEMPERATURE (
o
C)
140
160
RESISTIVE OR
INDUCTIVE LOAD
100
TA=125℃
10
1
TA=25℃
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT
70
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
PEAK FORWARD SURGE
URRENT (A)
60
50
40
30
20
10
0
1
8.3mS Single Half Sine Wave
JEDEC Method
10
NUMBER OF CYCLES AT 60 Hz
100
10
FIG. 5 TYPICAL FORWARD CHARACTERISRICS
TA=25℃
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4 TYPICAL JUNCTION CAPACITANCE
175
150
CAPACITANCE (pF)
1
HS2AA-HS2DA
0.1
HS2GA
125
100
75
50
25
0
0.1
1
10
REVERSE VOLTAGE (V)
HS2JA-HS2MA
HS2AA-HS2GA
0.01
HS2JA-HS2MA
0.001
100
1000
0
0.2
0.4
0.6
0.8
1
FORWARD VOLTAGE (V)
1.2
1.4
1.6
E-mail: sales@taychipst.com
2 of 2
Web Site: www.taychipst.com
