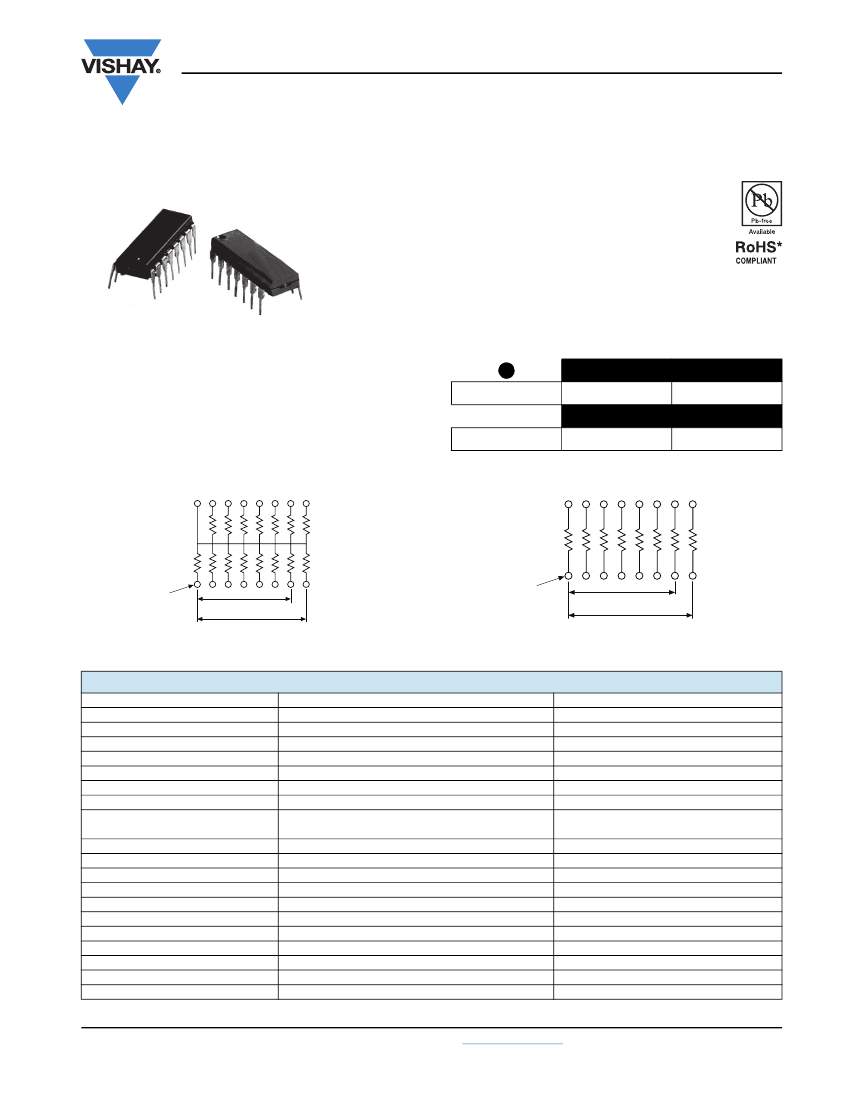

TDP
Vishay Thin Film
Molded, Dual-In-Line Resistor, Through Hole Network
FEATURES
• Standard rugged, molded case construction
(14 pins and 16 pins)
• Highly stable thin film (500 ppm at + 70 °C
at 2000 h)
• Low temperature coefficient (± 25 ppm/°C)
• Compatible with automatic insertion equipment
• Standard isolated pin one common schematic
•
Compliant to RoHS directive 2002/95/EC
Actual Size
Vishay Thin Film offers two standard circuits in a 14 pins and
16 pins molded dual-in-line over a 100
Ω
to 100 kΩ
resistance range. The networks feature ratio tolerance to
0.05 % with a TCR tracking of 5 ppm/°C.
TYPICAL PERFORMANCE
ABSOLUTE
TCR
25
ABSOLUTE
TOL.
0.1
TRACKING
5
RATIO
0.05
SCHEMATIC
Schematic TDP01
Schematic TDP03
Pin 1
Pin 1
TDP-1401
TDP-1601
TDP-1403
TDP-1603
Models: TDP1403 and TDP1603
7 or 8 isolated resistors
Models: TDP1401 and TDP1601
13 or 15 resistors
with
one pin common
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Pin/Lead Number
Resistance Range
TCR: Absolute
TCR: Tracking
Tolerance: Absolute
Tolerance: Ratio
Power Rating: Resistor
Power Rating: Package
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Thermal EMF
Shelf Life Stability: Absolute
Shelf Life Stability: Ratio
SPECIFICATIONS
Passivated nichrome
14, 16
100
Ω
to 100 kΩ
± 25 ppm/°C
± 5 ppm/°C
± 0.1 %
± 0.05 % to ± 0.5 %
0.05 W/resistor = 01 circuit
0.10 W/resistor = 03 circuit
0.8 W/package
ΔR
± 0.05 %
ΔR
± 0.015 %
< 1 ppm/V (typical)
100 V
- 55 °C to + 125 °C
- 55 °C to + 150 °C
< - 30 dB
0.08 μV/°C
ΔR
± 0.01 %
ΔR
± 0.002 %
CONDITIONS
-
-
-
- 55 °C to + 125 °C
- 55 °C to + 125 °C
+ 25 °C
+ 25 °C
at + 25 °C
Maximum at + 70 °C
2000 h at + 70 °C
2000 h at + 70 °C
-
-
-
-
-
-
1 year at + 25 °C
1 year at + 25 °C
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 60045
Revision: 27-Jan-10
For technical questions, contact:
thinfilm@vishay.com
www.vishay.com
111
TDP
Vishay Thin Film
Molded, Dual-In-Line Resistor, Through Hole Network

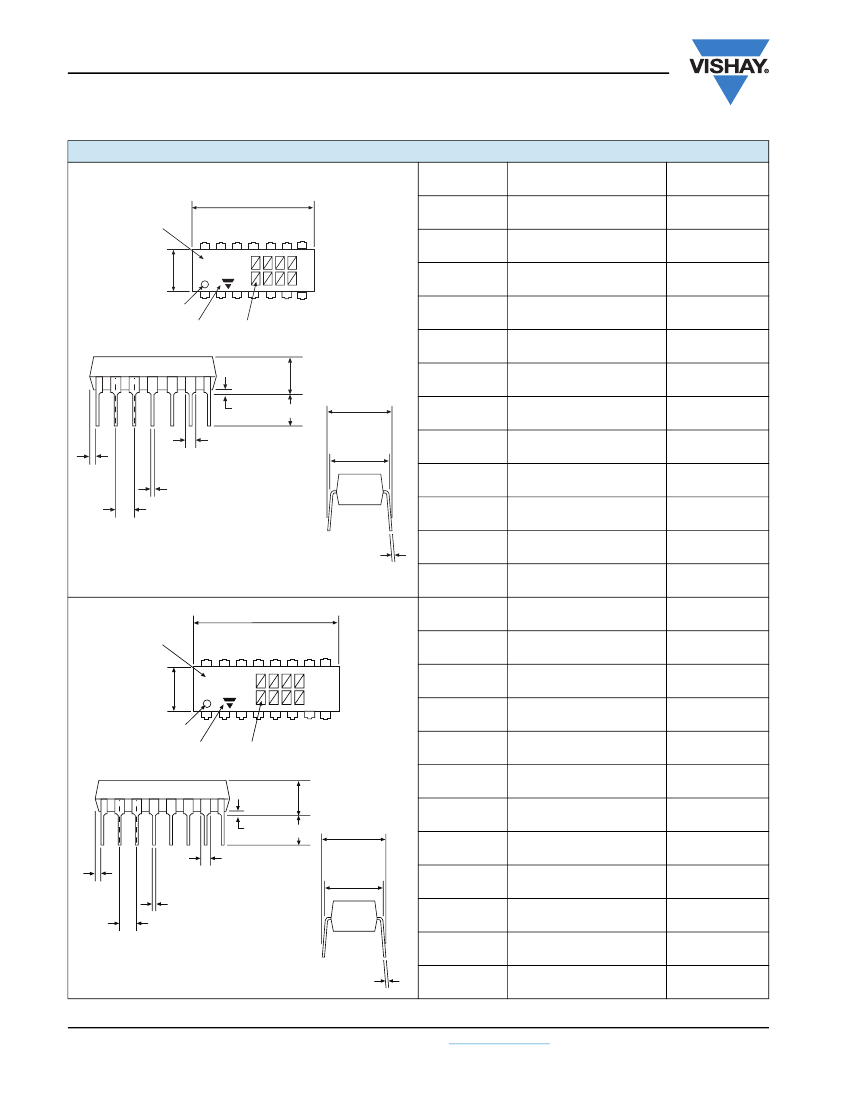

DIMENSIONS AND IMPRINTING
in inches and millimeters
DIMENSION
A
INCHES
0.755
0.250
0.075
0.100
0.018
0.060
0.025
0.190
0.130
0.320
0.310
0.010
0.755
0.250
0.025
0.100
0.018
0.060
0.025
0.190
0.130
0.320
0.310
0.010
MILLIMETERS
19.18
6.35
1.91
2.54
0.46
1.52
0.64
4.83
3.30
8.13
7.87
0.25
19.18
6.35
0.64
2.54
0.46
1.52
0.64
4.83
3.30
8.13
7.87
0.25
A
Part
B
B
TDP14XX
C
D
Vishay
Logo
Date Code
Pin 1
E
H
G
F
K
J
G
H
J
K
L
M
F
C
E
D
L
M
A
Part
A
B
B
TDP16XX
C
D
Pin 1
Vishay
Logo
Date Code
E
F
H
G
G
J
K
H
F
C
E
D
L
J
K
L
M
M
www.vishay.com
112
For technical questions, contact:
thinfilm@vishay.com
Document Number: 60045
Revision: 27-Jan-10
TDP
Molded, Dual-In-Line Resistor, Through Hole Network
Vishay Thin Film
MECHANICAL SPECIFICATIONS
Resistive Element
Substrate Material
Body
Terminals
Tin/Lead Option
Lead (Pb)-free Option
Tin/Lead and Lead (Pb)-free Finish
Passivated nichrome
Alumina
Conformal coated
Copper alloy
Sn90
100 % matte tin
Hot solder dip
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: TDP14031002BUF
T
T
D
D
P
PINS
14
16
P
T
1
1
4
6
0
0
3
3
1
1
0
0
0
0
2
3
B
A
U
U
F
F
GLOBAL MODEL
(3 or 4 digits)
TDP
(Tin lead)
TDPT
(Lead (Pb)-free)
(e3)
SCHEMATICS
01
= 13 or 15
resistors with
1 common pin
03
= 7 or 8
isolated resistors
RESISTANCE
First 3 digits are
significant figures
and the last digit
specifies the
number of zeroes
to follow.
e.g.: 1001 = 1K
1002 = 10K
TOLERANCE AND
RATIO TOLERANCE
Absolute
A
= ± 0.1 %
(1)
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
= ± 1.0 %
Ratio
± 0.05 %
± 0.1 %
± 0.1 %
± 0.1 %
± 0.5 %
PACKAGING
UF
= Tubed
Historical Part Number example: TDP14031001F (for reference purposes only)
TDP
SERIES
14
PINS
03
SCHEMATIC
1001
RESISTANCE
F
TOLERANCE AND
RATIO TOLERANCE
Document Number: 60045
Revision: 27-Jan-10
For technical questions, contact:
thinfilm@vishay.com
www.vishay.com
113
