CFP0519-0301F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CFP0519-0301F

Preview

CFP0519-0301F: DescriptionCard Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,; CategoryThe connector The connector; File Size173KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric View All

CFP0519-0301F Overview

Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,

CFP0519-0301F Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ZIF, LOW PROFILE
Board mount options	SOLDER HOLDING POSTS
body width	0.094 inch
subject depth	0.272 inch
body length	0.972 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	19
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

FPC Connectors

FP-10

SU

SL

Series

1.0mm Pitch (SMT)

-03

F (Upper Contact)

Hold Down Packing Style

01

02

1.0

C

2.4

With

Without

Embossed Taping

B

A

No. of Pins /

極数

●

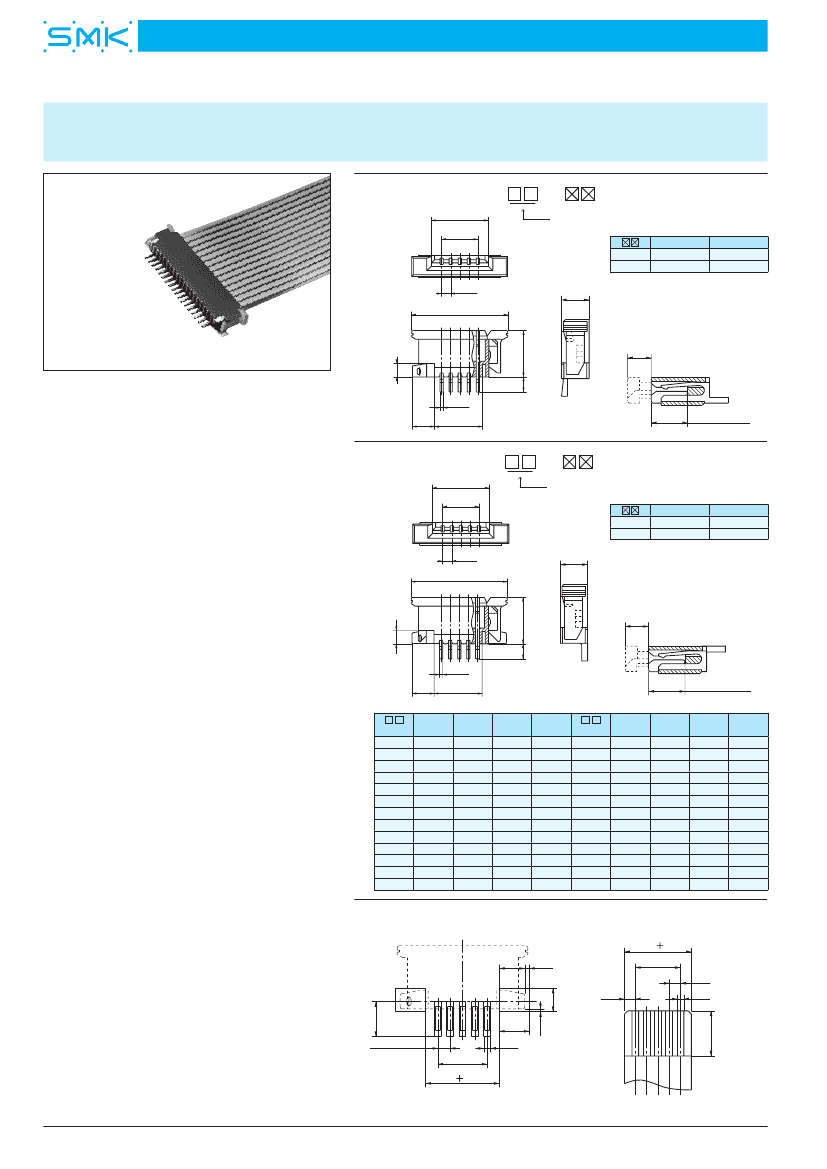

SU Series CFP05

1.5

■

Features

1. Either upper or lower contact available.

2. Using the ZIF structure.

3. Low profile of 2.4mm height when mounted.

4. Supplied in the embossed taping with automatic

mounter.

0.3

2.4

D

3.4

(Inserted size)

●

SL Series CFP15

B

A

1.7

5.2

(2.0)

-04

F (Lower Contact)

Hold Down Packing Style

01

02

With

Without

Embossed Taping

No. of Pins /

極数

■

Specifications

1. Rating : 0.5A, 50V AC/DC

2. Contact Resistance : 30mΩ max., initially

3. Insulation Resistance : 1000MΩ min. at 500V DC

4. Withstanding Voltage : 500V AC (for one minute)

5. Operating Temperature Range : –40˚C to +85˚C

1.0

C

2.4

Housing : Thermoplastic Resin,

Natural Color, 94V-0

●

Cover : Thermoplastic Resin,

Natural Color, 94V-0

●

Contact : Cu Alloy, Au Plating

●

Hold down : Cu Alloy, SnCu Plating

●

1.5

0.3

2.4

D

3.4

(Inserted size)

No. of Pins

A

3.0

4.0

5.0

6.0

7.0

8.0

9.0

10.0

11.0

12.0

13.0

14.0

15.0

B

5.1

6.1

7.1

8.1

9.1

10.1

11.1

12.1

13.1

14.1

15.1

16.1

17.1

C

9.7

10.7

11.7

12.7

13.7

14.7

15.7

16.7

17.7

18.7

19.7

20.7

21.7

1.7

5.2

■

Material and Plating

(2.0)

D

4.5

5.5

6.5

7.5

8.5

9.5

10.5

11.5

12.5

13.5

14.5

15.5

16.5

No. of Pins

17

18

19

20

21

22

23

24

25

26

28

29

30

A

16.0

17.0

18.0

19.0

20.0

21.0

22.0

23.0

24.0

25.0

27.0

28.0

29.0

B

18.1

19.1

20.1

21.1

22.1

23.1

24.1

25.1

26.1

27.1

29.1

30.1

31.1

C

22.7

23.7

24.7

25.7

26.7

27.7

28.7

29.7

30.7

31.7

33.7

34.7

35.7

D

17.5

18.5

19.5

20.5

21.5

22.5

23.5

24.5

25.5

26.5

28.5

29.5

30.5

■ 特　　長

1.

2.

3.

4.

接触部の½½は上側と下側タイプがあります。

ZIF 構造を採用しています。

実装高さは 2.4mm です。

自動マウンタ対応でエンボステーピング方式に

よる供給です。

■ 仕　　様

1. 定格電圧電流：AC/DC 50V 0.5A

2. 接触抵抗：初期 30mΩ 以下

3. 絶縁抵抗：DC 500V 1000MΩ 以上

4. 耐　電　圧：AC 500V（1 分間）

5. ½用温度範囲：–40℃〜

+85℃

04

05

06

07

08

09

10

11

12

13

14

15

16

■

P.C. Board Dimension

取付基板参考図

2.4

0.5

■

Applicable FPC Dimension

(A 2)

A

1.0

2

1.0

適合 FPC 参考寸法

(t=0.3±0.05)

■ 材質・表面処理

●

2.6

(Pitch)1.0

A

(D 0.6)

0.5

FPC plating to recommend : Au plating

推奨 FPC めっき

:

金めっき

●

18

4 min.

ハウジング：熱可塑性樹脂原色 94V-0

●

カ　バ　ー：熱可塑性樹脂原色 94V-0

●

コンタクト：銅合金金めっき

●

ホールドダウン：銅合金すず銅めっき

0.6

3.0

0.25
