CX12CZ-A0B2C240-FREQ2DS datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CX12CZ-A0B2C240-FREQ2DS

CX12CZ-A0B2C240-FREQ2DS: DescriptionSeries - Fundamental Quartz Crystal, 26MHz Min, 41MHz Max; CategoryPassive components Crystal/resonator; File Size99KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CX12CZ-A0B2C240-FREQ2DS Overview

Series - Fundamental Quartz Crystal, 26MHz Min, 41MHz Max

CX12CZ-A0B2C240-FREQ2DS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cardinal Components
Reach Compliance Code	compliant
Other features	TAPE AND REEL; AT CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
Manufacturer's serial number	CX12C
Installation features	SURFACE MOUNT
Maximum operating frequency	41 MHz
Minimum operating frequency	26 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L7XB5XH1.25 (mm)
Series resistance	40 Ω
surface mount	YES

Preview

Download Datasheet

View All

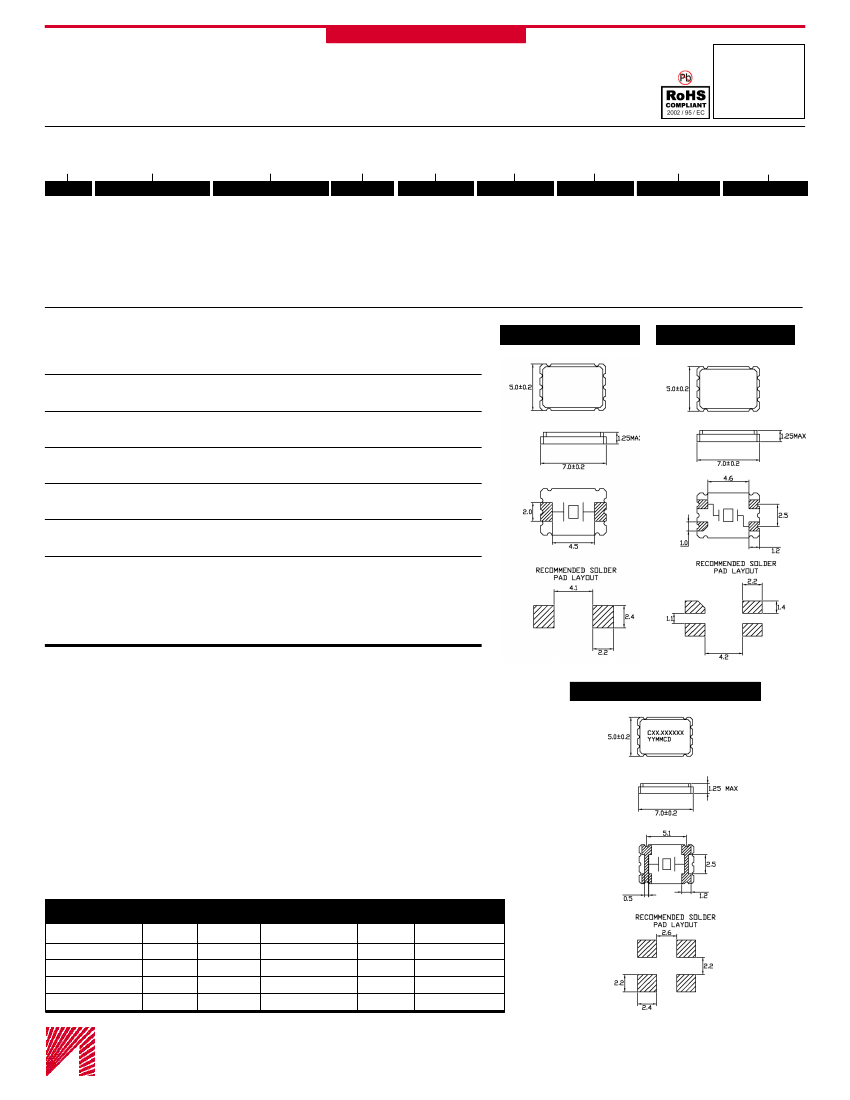

CARDINAL COMPONENTS

Ceramic Surface Mount

• 1.25 mm height

• Glass-sealed housing for high reliability

• Three industry standard footprints

• Economic cost

Series CX12A

CX12B

CX12C

D18

-3

Part Numbering Example: CX12A Z - A1 B2 C2 60 - 9.83 D18 - 3

CX12A

A1*

9.83

SERIES ADDED FEATURES OPERATING TEMP. STABILITY TOLERANCE RESISTANCE FREQUENCY LOAD CAP.

OVERTONE

CX12A BLANK = BULK PACK A0 = -10°C ~ +60°C B1 = ±100 C1 = ±100 SEE CHART

D16,18,20,ETC. BLANK: FUND.

-3: 3rd OT

BELOW

DS = SERIES

Z = TAPE AND REEL A1 = -10°C ~ +70°C B2 = ± 50 C2 = ± 50

-5: 5th OT

B3 = ± 30 C3 = ± 30

A2 = -40°C ~ +85°C

-7: 7th OT

A3 = -55°C ~ +125°C B4 = ± 10 C4 = ± 10

-BT: BT Cut

*NOTE:

The above ABC combinations cover basic specification options. We tailor our crystal specifications

to meet customer requirements. Please contact our sales department if you don’t see exactly what you need.

Specifications:

Frequency Range:

Operating Temperature:

Frequency Stability:

Frequency Tolerance:

(at 25°C)

Load Capacitance:

Resistance:

Standard:

9.83 ~ 100.000 MHz

-10°C ~ +60°C

-40°C ~ +85°C

±100 ppm

± 50 ppm

CX12A

Standard

CX12B

Standard

Standard 18 pF or series.

Other values are available.

Maximum resistance corresponds to frequency.

See chart below.

Mode: Fundamental or 3rd Overtone

Shunt Capacitance: 5 pF Max

Aging: ± 5 ppm/year

Drive Level: 0.1 mW

Packaging: Tape and Reel (1K per Reel)

CX12C

Resistance Chart:

All resistances are maximum values.

EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE), AND CUT

Frequency MHz

9.83~11.999

12.000~15.999

16.000~25.999

26.000~41.000

ESR(Ω)

60 Max

40 Max

Mode/cut

Fund./AT

Frequency MHz

28.000~30.999

31.000~34.999

35.000~49.999

50.000~100.000

ESR (Ω)

100 Max

60 Max

Mode/cut

3rd Overtone/AT

Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053

http://www.cardinalxtal.com

E-Mail: cardinal@cardinalxtal.com
