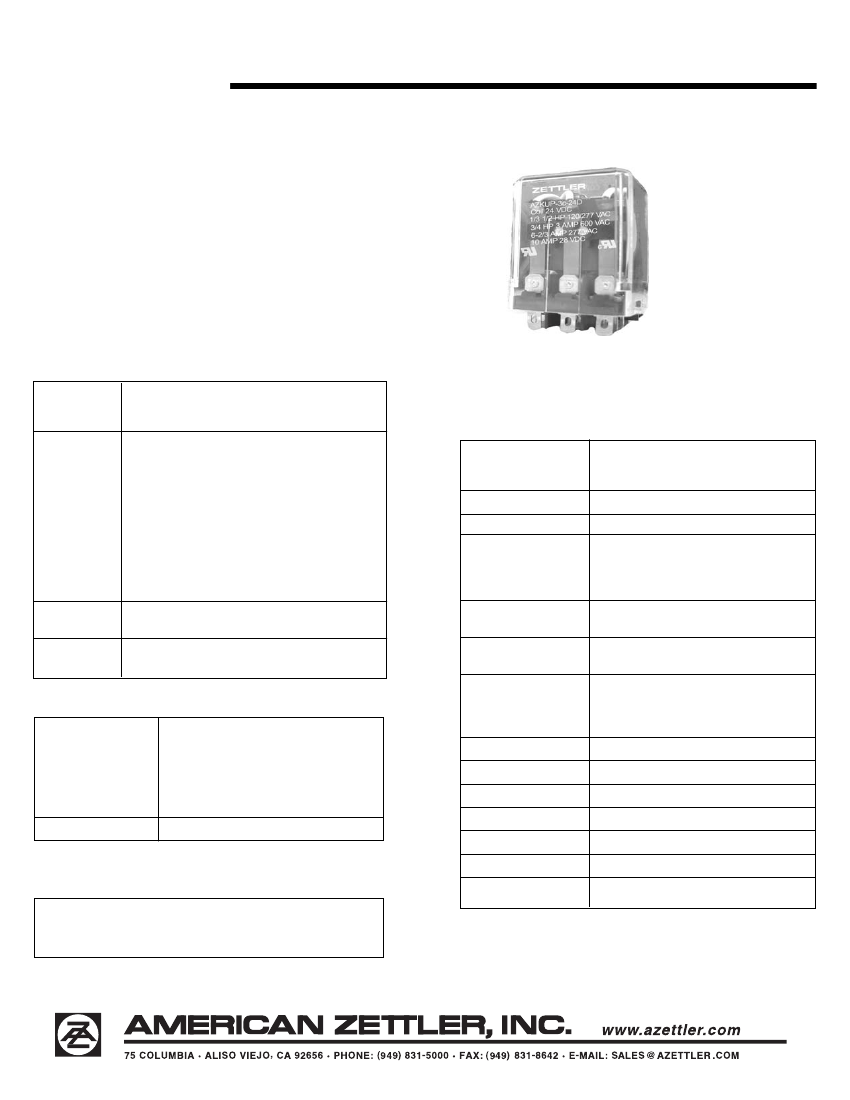

AZKUP
13 AMP GENERAL PURPOSE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
Plug-in / solder terminals
SPDT through 3PDT arrangement
High switching capacity
AC and DC coils
Unique Armature stop, maintains adjustment
Class F Insulation
UL, CUR file E44211
CONTACTS
Arrangement
SPDT (1 Form C)
DPDT (2 Form C)
3PDT (3 Form C)
13 A at 120 VAC
13 A at 277 VAC [1]
3 A at 600 VAC
1/3 HP at 120 VAC
1/2 HP at 277 VAC [1]
10 A at 28 VDC
1HP at 277 VAC - 3 phase
3/4 HP at 600 VAC
B600 Pilot Duty
[1] 3 pole devices rated at 6.66 A when switching
greater than 150 VAC unless polarity is the same
on all poles.
Silver cadmium oxide, gold flash (movable) Fine
silver, gold flash (stationary)
< 50 milliohms initially
(24 V, 1 A voltage drop method)
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time
Release Time
Dielectric Strength
Minimum operations
1 x 10
7
operations
1x 10
5
at rated load
15 msec max. at nominal coil voltage
15 msec at nominal coil voltage
2200 Vrms coil to contact
UL / CUR
Ratings
(at sea level for 1 min.)
800 Vrms contact to contact
2200 Vrms between contact sets
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
100 megohms min. at 500 VDC,
20°C, 50% RH
DC: > 10% of nominal coil voltage
AC: > 30% of nominal coil voltage
-45° C (-49°F) to 55° C (131° F) AC coil
-45° C (-49°F) to 70° C (158° F) DC coil
-45° C (-49°F) to 155°C (311°F)
0.062" DA at 10–55 Hz
20 g
Polycarbonate
Plug-In/ QC
250° C (482° F)
5 seconds
85 grams
Material
Resistance
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature
DC: 675 mW
AC: 1.6 VA
DC: 2.0 W at 20°C (68°F)
AC: 3.7 VA at 20°C (68°F)
155°C (311°F)
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
Weight
9/02/05 W
AZKUP
RELAY ORDERING DATA
STANDARD RELAYS: DC Coil
COIL SPECIFICATIONS
Nominal Coil
VDC
12
24
110
Must Operate
VDC
9.0
18.0
82.5
Max. Continuous
VDC
15.6
31.2
143.0
Nominal Current
mA ± 10%
100
50
11
Coil Resistance
± 10 %
120
480
10000
ORDER NUMBER*
SPDT
AZKUP–1C–12D
AZKUP–1C–24D
AZKUP–1C–110D
*For DPDT or 3PDT substitute “-2C” or “-3C” for “-1C”. Add suffix “K” for flange mount cover
STANDARD RELAYS: AC Coil-SPDT-Flange Mount Cover
COIL SPECIFICATIONS
Nominal Coil
VAC
120
240
Must Operate
VAC
102.0
204.0
Max. Continuous
VAC
156.0
312.0
Nominal
Coil Power VA
2
2
Coil Resistance
± 10%
2025
8000
ORDER NUMBER
AZKUP–1C–120AK
AZKUP–1C–240AK
STANDARD RELAYS: AC Coil- DPDT
COIL SPECIFICATIONS
Nominal Coil
VAC
12
24
120
240
Must Operate
VAC
10.2
20.4
102.0
204.0
Max. Continuous
VAC
15.6
31.2
156.0
312.0
Nominal
Coil Power VA
2.2
2.2
2.2
2.2
Coil Resistance
± 10%
18
72
1850
7200
ORDER NUMBER*
AZKUP–2C–12A
AZKUP–2C–24A
AZKUP–2C–120A
AZKUP–2C–240A
*Add suffix “K” for flange mount cover
STANDARD RELAYS: AC Coil - 3PDT
COIL SPECIFICATIONS
Nominal Coil
VAC
12
24
120
240
Must Operate
VAC
10.2
20.4
102.0
204.0
Max. Continuous
VAC
15.6
31.2
156.0
312.0
Nominal
Coil Power VA
2.2
2.2
2.2
2.2
Coil Resistance
± 10%
18
72
1850
7200
ORDER NUMBER*
AZKUP–3C–12A
AZKUP–3C–24A
AZKUP–3C–120A
AZKUP–3C–240A
*Add suffix “K” for flange mount cover
9/02/05 W
