CRYSTAL OSCILLATORS
Data Sheet 0645A
Rev. B
AB-X29NXXX Series
PECL/LVPECL UHF XO
Description
The AB-X29NXXX Series
of crystal oscillators (XO) provides ultra high frequency with
PECL/LVPECL complementary outputs. The outputs can be disabled for test automation or
combining multiple clocks. The device is based on low noise analog harmonic frequency
multiplication, providing exceptionally low Phase Noise and Jitter. It’s packaged in a miniature,
FR-4 based 9x14 mm SMD package
Applications and Features
•
•
•
•
•
•
•
Fiber Channel; 10 GbE; Infiniband; Network Processors; SONET/SDH
High Reliability – NEL HALT/HASS qualified for crystal oscillator start-up conditions
Extremely Low Phase Noise and Jitter
Frequency Range to 1,000 MHz
RoHS compliant, Lead Free Construction
SONET ± 20 ppm overall stability available
High Shock Resistance, to 1.000 G
Creating a Part Number
AB - X 29N X X X
Package code
AB 6 pad 9x14 mm SMD
Frequency Stability, ppm
E ±20
F ±25
G ±50
H ±100
J ±32
9 Customer specific
Operating Voltage
0 5.0 V ± 5%
A 3.3 V ± 5%
Enable Option
L Enable Low
N N/C
Temperature Range, ºC
A 0 to 50
B 0 to 70
C -20 to 70
D -40 to 85
9 Customer Specific
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL OSCILLATORS
AB-X29NXXX Series

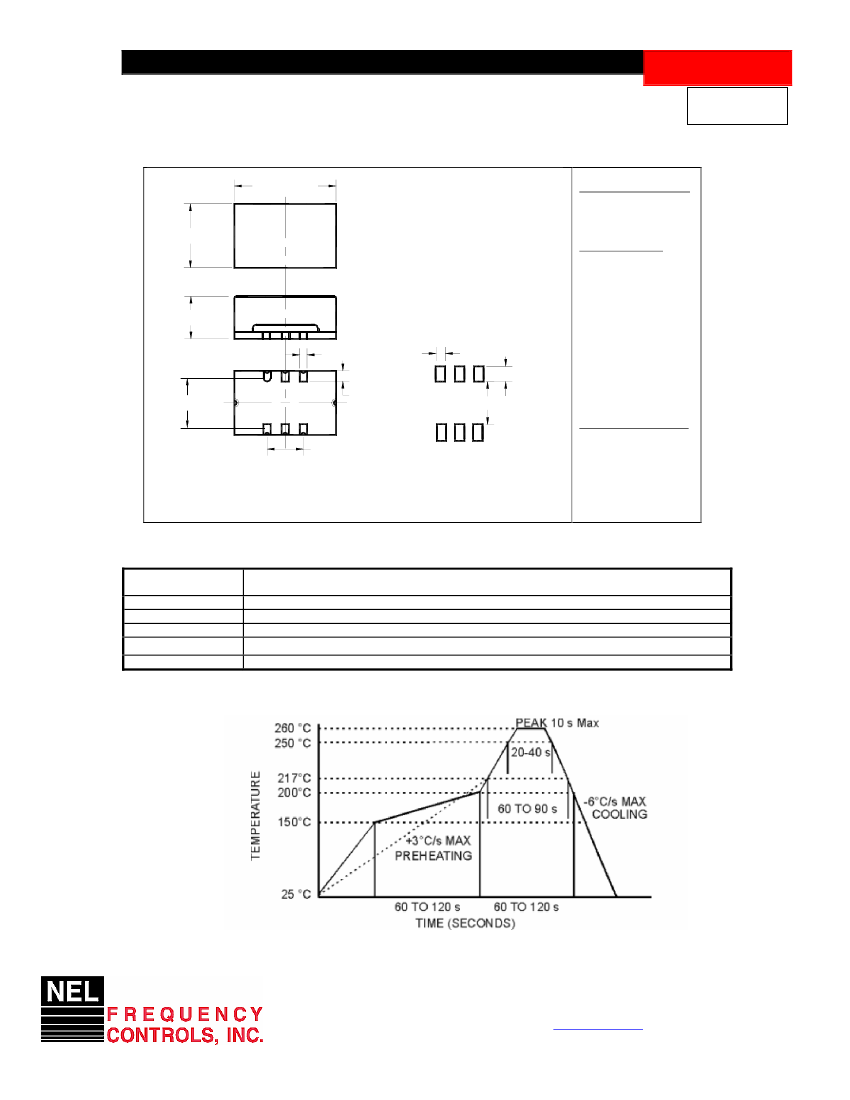

Drawing Specification
0.55 (14 mm)
Data Sheet 0645A
Rev. B
OUTLINE TOLERANCE:
±0.015” / 0.4mm
(Unless otherwise
specified)
PIN FUNCTIONS:
[1] N/C
[2] EN / DIS or N/C
[3] CASE / GROUND
[4] OUTPUT
[5] COMP. OUTPUT
[6] SUPPLY VOLTAGE
0.35 (9 mm)
0.24 (6.1 mm)
RECOMMENDED PAD LAYOUT
0.045 (1.14 mm)
1
0.300 (7.62 mm)
6
5
4
0.200 (5.08 mm)
2
3
0.060 (1.52 mm)
0.100 (5.1 mm)
0.050 (1.27 mm)
0.200 (10.2 mm)
MARKING (EXAMPLE):
AB-XXXX
Environmental and Mechanical Characteristics
Operating temp.
range
Mechanical Shock
Thermal Shock
Vibration
Hermetic Seal
Soldering conditions
see part # table
Per MIL-STD-202, Method 213, Cond. A
Per MIL-STD-883, Method 1011, Cond. A
Per MIL-STD-883, Method 2007, Cond. A
Leak rate less than 1x10-8 atm.cc/s of helium , crystal only.
See MAX reflow profile below
MAX Reflow Profile
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL OSCILLATORS
AB-X29NXXX Series
Absolute Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Enable/Disable Voltage
Data Sheet 0645A
Rev. B
Symbol
To
Tst
Vcc
Ven/dis
Value
-40 to +85
-50 to +90
-0.5 to 5.5
0 to Vcc
Unit
ºC
ºC
V
V
Electrical Parameters
Parameter
Nominal Frequency
Supply Voltage
Supply current
Output Logic Type
Load
Output Levels
Duty Cycle
(Symmetry)
Rise/Fall Time
Jitter
Integrated
Voh
Vol
Tr/Tf
J
At 50% of output voltage
swing
20 to 80, 80 to 20 %
Integrated from Phase
Noise, 12 KHz to 20 MHz
, RMS
100Hz to 80KHz,RMS
50 KHz to 80 MHz
Random
period,
Accumul.,
pk-to-pk
Determin.
622.080MHz @ 10 Hz
APR 50 ppm @100 Hz
or less
@1 KHz
@10KHz
@100KHz
@>1MHz
At 622.08 MHz
Overall, including initial
calibration, temperature,
aging 10 years, shock and
vibration
Pin 2 = Low, 0 to Vcc-
1.62 V
Pin 2 = High, Vcc-1.025 V
to Vcc
45/55
50/50
0.5
0.1
Symb
Fo
Vcc
Icc
Conditions, Note
Code 0
Code A
MIN
200
4.75
3.135
TYP
5.0
3.3
60
PECL/
LVPECL
50
MAX
1,000
5.25
3.465
80
Unit
MHz
V
mA
Ohm
V
Output to Vcc-2V, or
Thevenin Equivalent
overall
Vcc-1.025
Vcc-1.620
55/45
0.7
0.2
1.0
0.3
2.5
25
1
-60
-90
-118
-135
-140
-145
-50
-55
-85
-113
-130
-135
-140
-46
From ±20,
see table
for part
number
%
ns
ps
ps
ps
ps
ps
ps
dBc/Hz
Wavecrest
characterized
Phase Noise
£(Δf)
Sub-harmonics
Frequency Stability
ΔF/F
dBc
ppm
Enable
Disable
Enabled
Disabled, Pin4 = Logic “1”,
Pin5 = Logic “0”
V
V
