A0354781 datasheet, PDF - EEWORLD Datasheet

A0354781: DescriptionBoard Connector, 68 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size152KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

A0354781 Overview

Board Connector, 68 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	SIDE ENTRY
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	A0354781
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	68
UL Flammability Code	94V-0

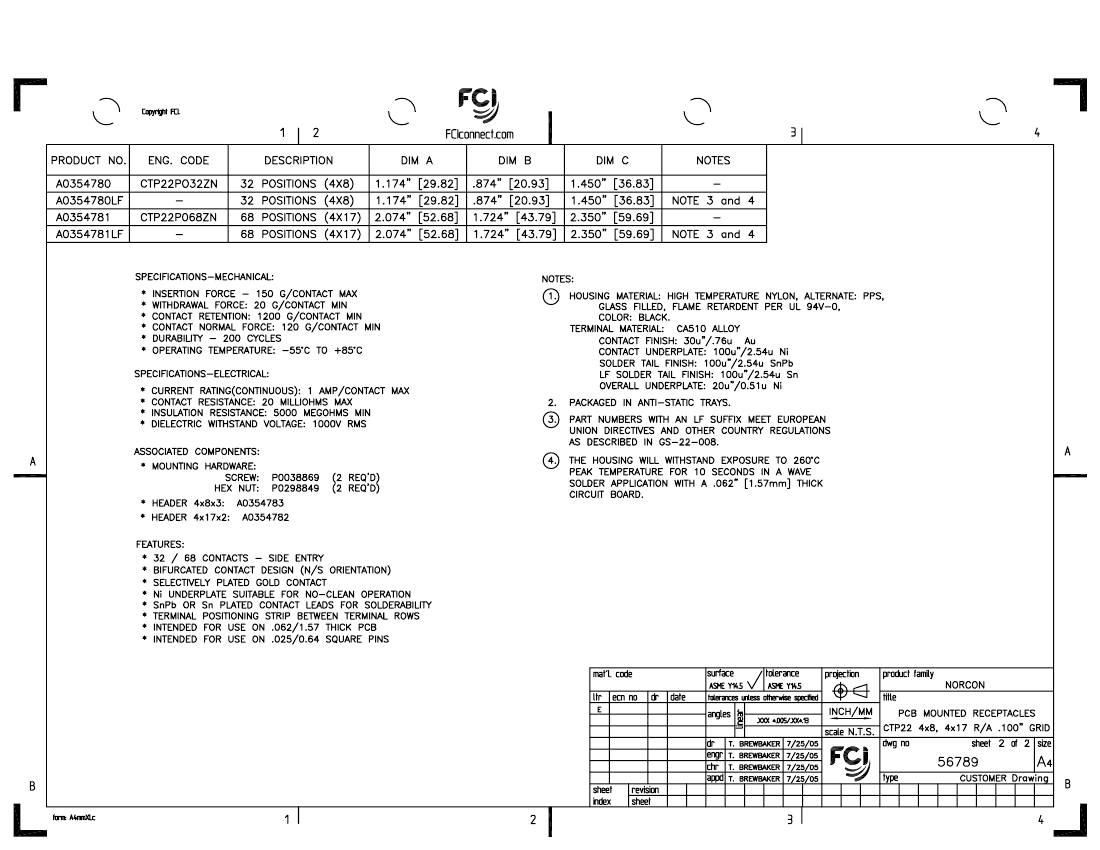

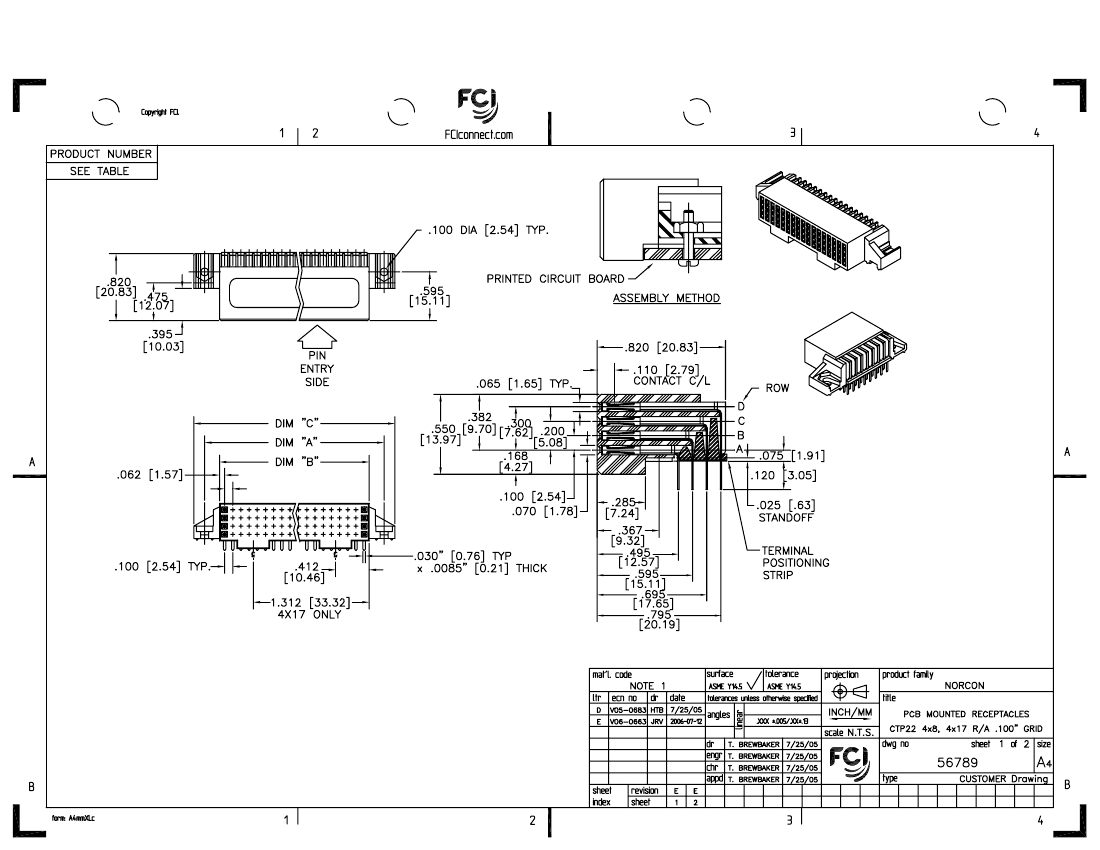

PDM: Rev:E

STATUS:

Released

Printed: Jul 21, 2006

.

	A0354781	A0354780LF	A0354780	A0354781LF
Description	Board Connector, 68 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle	Board Connector, 32 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE	Board Connector, 32 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle	Board Connector, 68 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	compliant	unknown	compliant
Other features	SIDE ENTRY	SIDE ENTRY	SIDE ENTRY	SIDE ENTRY
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	A0354781	A0354780	A0354780	A0354781
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	68	32	32	68
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
