BD9275F-GE2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BD9275F-GE2

BD9275F-GE2: DescriptionSwitching Regulator/Controller, Voltage-mode, 51.75kHz Switching Freq-Max, PDSO16,; CategoryPower/power management The power supply circuit; File Size116KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BD9275F-GE2 Overview

Switching Regulator/Controller, Voltage-mode, 51.75kHz Switching Freq-Max, PDSO16,

BD9275F-GE2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	SOP, SOP16,.25
Reach Compliance Code	compliant
control mode	VOLTAGE-MODE
JESD-30 code	R-PDSO-G16
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Maximum switching frequency	51.75 kHz
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

1/4

STRUCTURE

Silicon Monolithic Integrated Circuit

NAME OF PRODUCT

DC-AC Inverter Control IC

TYPE

FUNCTION

ＢＤ９２７５Ｆ

・Using 20V process / 1ch control with Push-Pull

・Accuracy of drive output frequency：3.5%（IC Only/Built-in CT Capacitor）

・High accuracy timer latch current(±15%)

・Built-in FAIL function

・Adjustable latch timing

・Adjustable slow start time

・Lamp current and voltage sense feedback control

・Mode-selectable the operating or stand-by mode by STB pin (Typ.=0uA )

○Absolute Maximum Ratings（Ta = 25℃）

Parameter

Supply Voltage

OUTPUT PIN Voltage

Operating Temperature Range

Storage Temperature Range

Maximum Junction Temperature

Power Dissipation

Symbol

N1, N2

Topr

Tstg

Tjmax

Limits

-40½+85

-55½+150

+150

SOP18:562*

Unit

℃

Pd derate at -4.5mW/℃ for temperature above Ta = 25℃ (When mounted on a PCB 70.0mm×70.0mm×1.6mm)

〇動½範囲

項目

Supply voltage

Input Frequency Ratio PWM_IN PIN

DRIVER frequency

記号

範囲

単½

VCC

F_PWM_IN

F_OUT

8.0 ½ 18.0

0.060½0.5

20 ½ 90

kHz

REV. B

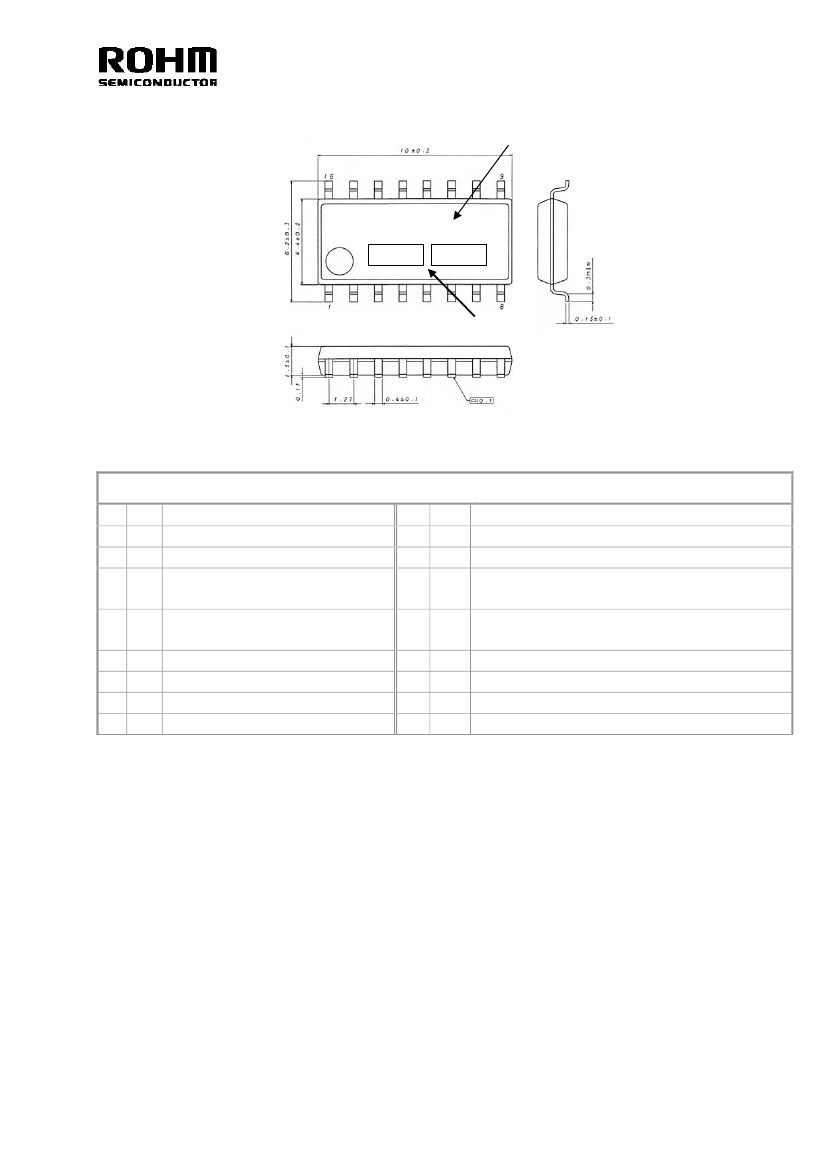

4/4

〇NOTE

FOR USE

1. This product is produced with strict quality control, but might be destroyed if used beyond its absolute maximum ratings.

Once IC is destroyed, failure mode will be difficult to determine, like short mode or open mode. Therefore, physical

protection countermeasure, like fuse is recommended in case operating conditions go beyond the expected absolute maximum

ratings.

The circuit functionality is guaranteed within of ambient temperature operation range as long as it is within recommended

operating range. The standard electrical characteristic values cannot be guaranteed at other voltages in the operating

ranges, however the variation will be small.

Mounting failures, such as misdirection or miscounts, may harm the device.

A strong electromagnetic field may cause the IC to malfunction.

The GND pin should be the location within ±0.3V compared with the PGND pin. ALL voltage should be under VCC voltage

+0.3V

6. BD9275F incorporate a built-in thermal shutdown circuit (TSD circuit). The thermal shutdown circuit (TSD circuit) is

designed only to shut the IC off to prevent runaway thermal operation. It is not designed to protect the IC or guarantee

its operation of the thermal shutdown circuit is assumed.

7. When modifying the external circuit components, make sure to leave an adequate margin for external components actual

value and tolerance as well as dispersion of the IC.

8. About the external FET, the parasitic Capacitor may cause the gate voltage to change, when the drain voltage is switching.

Make sure to leave adequate margin for this IC variation.

9. Under operating CP charge (under error mode) analog dimming and burst dimming are not operate.

10. Under operating Slow Start Control (SS is less than 2.5V), It does not operate Timer Latch.

11. By STB voltage is changed to 2 states. Therefore, do not input STB pin voltage between one state and the other state

(0.8½2.0V).

12. The pin connected a connector need to connect to the resistor for electrical surge destruction.

13. This IC is a monolithic IC which (as shown is Fig-1) has P

substrate and between the various pins. A P-N junction is

formed from this P layer of each pin. For example, the relation between each potential is as follows,

○(When GND > PinB and GND > PinA, the P-N junction operates as a parasitic diode.)

○(When PinB > GND > PinA, the P-N junction operates as a parasitic transistor.)

Parasitic diodes can occur inevitably in the structure of the IC. The operation of parasitic diodes can result in mutual

interference among circuits as well as operation faults and physical damage. Accordingly you must not use methods by

which parasitic diodes operate, such as applying a voltage that is lower than the GND (P substrate) voltage to an input

pin.

Transistor (NPN)

Resistance

(PinA)

(PinB)

Ｃ

GND

＋

P substrate

GND

Parasitic diode

(PinB)

Ｎ

P substrate

GND

Parasitic diode

Ｎ

(PinA)

Parasitic diode

GND

Ｂ

Ｃ

Ｅ

GND

Parasitic diode

Other adjacent components

Fig-1 Simplified structure of a Bipolar IC

REV. B

Notice

Notes

No copying or reproduction of this document, in part or in whole, is permitted without the

consent of ROHM Co.,Ltd.

The content specified herein is subject to change for improvement without notice.

The content specified herein is for the purpose of introducing ROHM's products (hereinafter

"Products"). If you wish to use any such Product, please be sure to refer to the specifications,

which can be obtained from ROHM upon request.

Examples of application circuits, circuit constants and any other information contained herein

illustrate the standard usage and operations of the Products. The peripheral conditions must

be taken into account when designing circuits for mass production.

Great care was taken in ensuring the accuracy of the information specified in this document.

However, should you incur any damage arising from any inaccuracy or misprint of such

information, ROHM shall bear no responsibility for such damage.

The technical information specified herein is intended only to show the typical functions of and

examples of application circuits for the Products. ROHM does not grant you, explicitly or

implicitly, any license to use or exercise intellectual property or other rights held by ROHM and

other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the

use of such technical information.

The Products specified in this document are intended to be used with general-use electronic

equipment or devices (such as audio visual equipment, office-automation equipment, commu-

nication devices, electronic appliances and amusement devices).

The Products specified in this document are not designed to be radiation tolerant.

While ROHM always makes efforts to enhance the quality and reliability of its Products, a

Product may fail or malfunction for a variety of reasons.

Please be sure to implement in your equipment using the Products safety measures to guard

against the possibility of physical injury, fire or any other damage caused in the event of the

failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM

shall bear no responsibility whatsoever for your use of any Product outside of the prescribed

scope or not in accordance with the instruction manual.

The Products are not designed or manufactured to be used with any equipment, device or

system which requires an extremely high level of reliability the failure or malfunction of which

may result in a direct threat to human life or create a risk of human injury (such as a medical

instrument, transportation equipment, aerospace machinery, nuclear-reactor controller, fuel-

controller or other safety device). ROHM shall bear no responsibility in any way for use of any

of the Products for the above special purposes. If a Product is intended to be used for any

such special purpose, please contact a ROHM sales representative before purchasing.

If you intend to export or ship overseas any Product or technology specified herein that may

be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to

obtain a license or permit under the Law.

Thank you for your accessing to ROHM product informations.

More detail product informations and catalogs are available, please contact us.

ROHM Customer Support System

http://www.rohm.com/contact/

www.rohm.com

R1010A
