SKYMOS
FEATURES
LBS Series
Low Profile
High power , High saturation
Magnetically shield
Applied to DC/DC Converter , Portable Communication
Equipment and Notebook Computer
SMT POWER INDUCTOR
ORDERING CODE
LBS
[1]
6028
[2]
-
150
[3]
M
[4]
T
[5]
[1]
[2]
[3]
[4]
[5]
Product Type: LBS
Size Code:
6028 , 7028 , 7030 , 7045 , 10145
Inductance:
Example: 1R5 = 1.5uH ; 150 = 15uH ; 151 = 150uH
Tolerance:
J±5% ; K±10% ; L±15% ; M±20%
Packing:
T-Tape & Reel

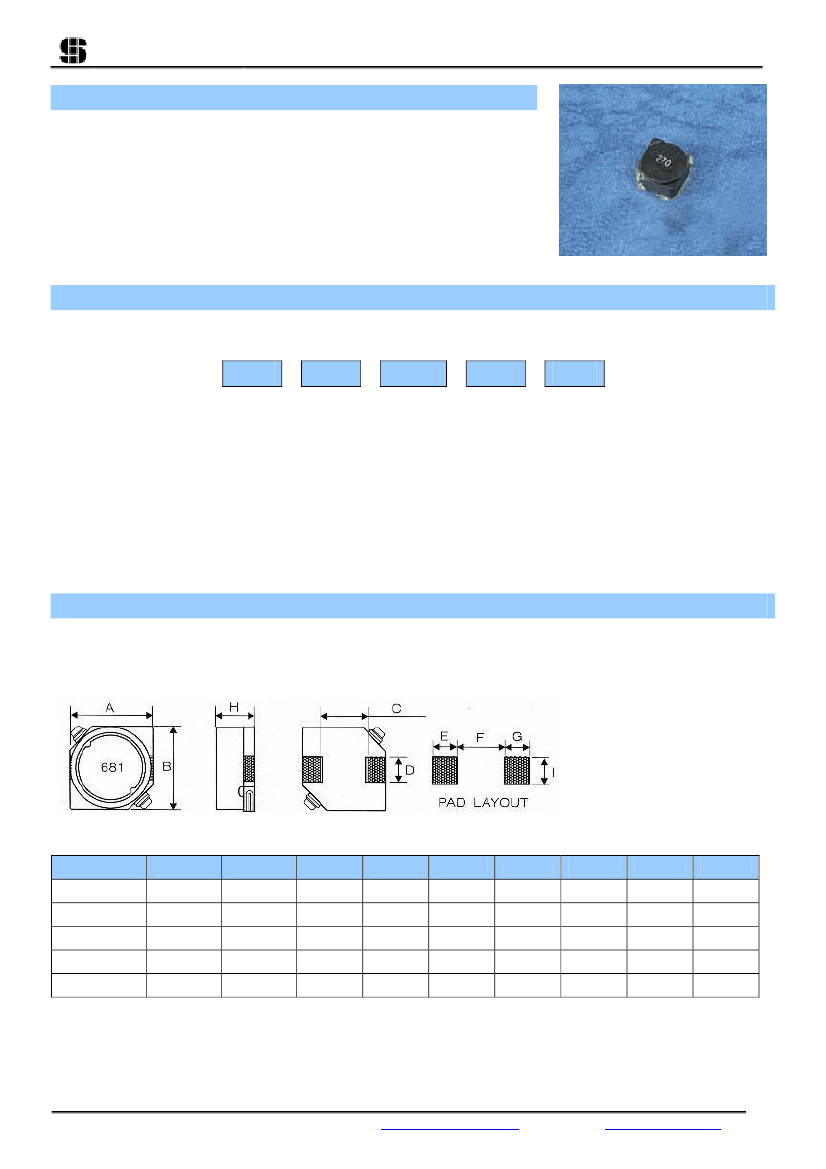

DIMENSIONS
Unit: mm
PBO Series
Size
LBS6028
LBS7028
LBS7030
LBS7045
LBS10145
A
6.0±0.2
7.0±0.2
7.0±0.2
7.0±0.2
10.1±0.3
B
6.0±0.2
7.0±0.2
7.0±0.2
7.0±0.2
10.1±0.3
H
2.8±0.2
2.8±0.2
3.0±0.2
4.5±0.3
4.5±0.3
C
4.0TYP
4.0TYP
4.0TYP
4.0TYP
6.0TYP
D
2.0TYP
2.0TYP
2.0TYP
2.0TYP
3.0TYP
E
1.5
1.5
1.5
1.5
2.5
F
4.0
4.9
4.9
4.9
5.6
G
1.5
1.5
1.5
1.5
2.5
I
2.2
2.2
2.2
2.2
3.2
Tel : (852) 2632 5088
Fax : (852) 2632 5028
E-mail :
skymos@asiansources.com
Web site :
http://www.skymos.com
