LVC-C40LPMSG+: DescriptionTelecom and Datacom Connector, 40 Contact(s), Male, IDC Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

LVC-C40LPMSG+ Overview

Telecom and Datacom Connector, 40 Contact(s), Male, IDC Terminal, ROHS COMPLIANT

LVC-C40LPMSG+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	40

Preview

Download Datasheet

View All

Fine-wire coaxial cable

Cable side fine-wire coaxial cable

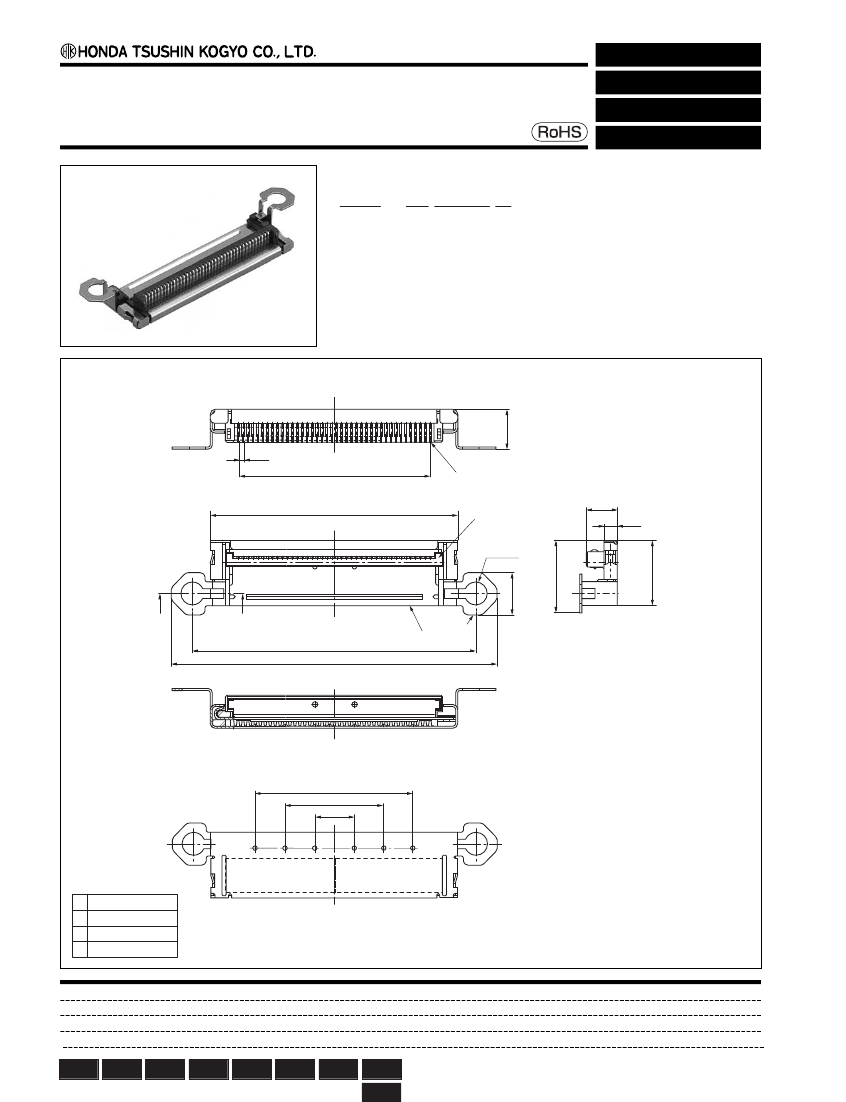

LVC-C40LPMSG+

●

Configuration of product Part No.

For LCD

0.5 mm pitch

Cable sides

LVC- C 40 LPMS G+

➀

➁

➂

➃

➀

Series name

➁

No. of contacts: 40

➂

Type of contact

LPMS: Cable-side right-angle, male

➃

Contact plating

G: Gold plate

0.5

0.5≈39=19.5

➁

➀

2-ø2.3

7.625

6.7

3.3

1.4

25

Y

Y'

28.5

32.8

➂

➃

Y-Y' cross section

16

10

4

●

Components

➀

Insulator

➁

Contacts

➂

Shield plate

➃

Shell (Appended)

Note: By attaching Pull-tab, insertion and extraction of connector is easily possible.

Mating connector:

LVC-C40SFYG+

Accessories:

Pull tab, LVC-40P

Through

hole

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

4.3

4
