Part Number

Search

LVC-C40LPMSG

Description
Telecom and Datacom Connector, 40 Contact(s), Male, Solder Terminal, Plug,
CategoryThe connector    The connector
File Size72KB,1 Pages
ManufacturerHonda Tsushin Kogyo Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

LVC-C40LPMSG Overview

Telecom and Datacom Connector, 40 Contact(s), Male, Solder Terminal, Plug,

LVC-C40LPMSG Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?incompatible
MakerHonda Tsushin Kogyo Co., Ltd.
Reach Compliance Codeunknown
Other featuresLOW PROFILE, SHIELDED
body width0.157 inch
subject depth0.264 inch
body length0.787 inch
Body/casing typePLUG
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGold (Au)
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage150VAC V
empty shellNO
Filter functionNO
IEC complianceNO
Minimum insulation diameter0.025 inch
Insulation resistance100000000 Ω
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.02 inch
Plug informationLVC-C40SFYG
Mixed contactsNO
Installation typeCABLE
Number of rows loaded1
OptionsGENERAL PURPOSE
Rated current (signal)0.3 A
reliabilityCOMMERCIAL
Terminal length
Termination typeSOLDER
Total number of contacts40

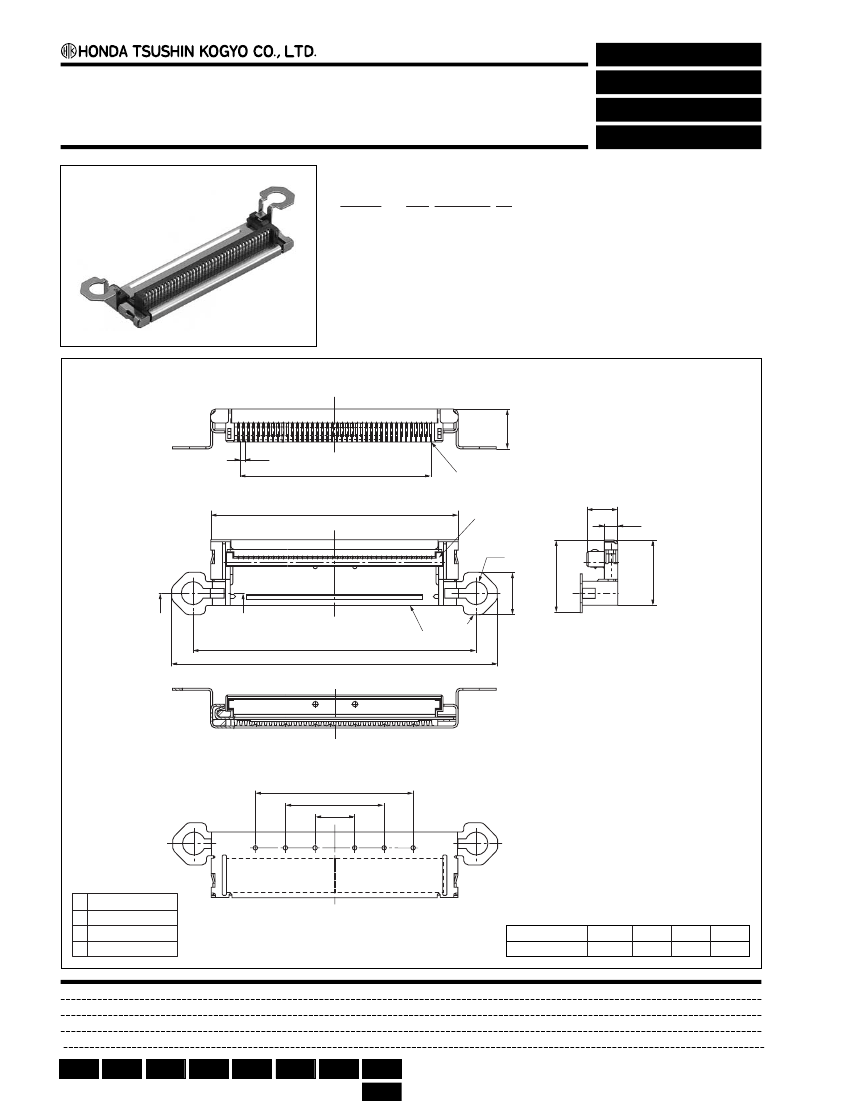

Fine-wire coaxial cable
Cable side fine-wire coaxial cable
LVC-C40LPMSG
Configuration of product Part No.
For LCD
0.5 mm pitch
Cable sides
LVC- C 40 LPMS G
Series name
No. of contacts: 40
Type of contacts
LPMS: Cable-side right-angle, male
Contact plating
G: Gold plate
0.5
0.5≈39=19.5
A
7.625
6.7
3.3
1.4
25
Y
Y'
C
D
Y-Y' cross section
16
10
4
Components
Insulator
Contacts
Shield plate
Shell (Appended)
Note: By attaching Pull-tab, insertion and extraction
of connector is easily possible.
B
4
Dimensions
Part No.
LVC-C40LPMSG
A
2-ø2.3
B
4.3
C
28.5
D
32.8
Mating connector:
LVC-C40SFYG
Accessories:
Pull tab, LVC-40P
DIP
SMT
Press-in
IDC
Wire
Soldering Crimping wrapping
Others
