2SB1185D: DescriptionPower Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size128KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

2SB1185D Overview

Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN

2SB1185D Parametric

Parameter Name	Attribute value
Parts packaging code	TO-220FP
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	60
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	70 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

Transistors

Power Transistor (*60V,

*3A)

2SB1184 / 2SB1243 / 2SB1185

FFeatures

1) Low V

CE(sat)

.

V

CE(sat)

=

*0.5V

(Typ.)

(I

C

/ I

B

=

*2A

/

*0.2A)

2) Complements the 2SD1760 /

2SD1864 / 2SD1762.

FStructure

Epitaxial planar type

PNP silicon transistor

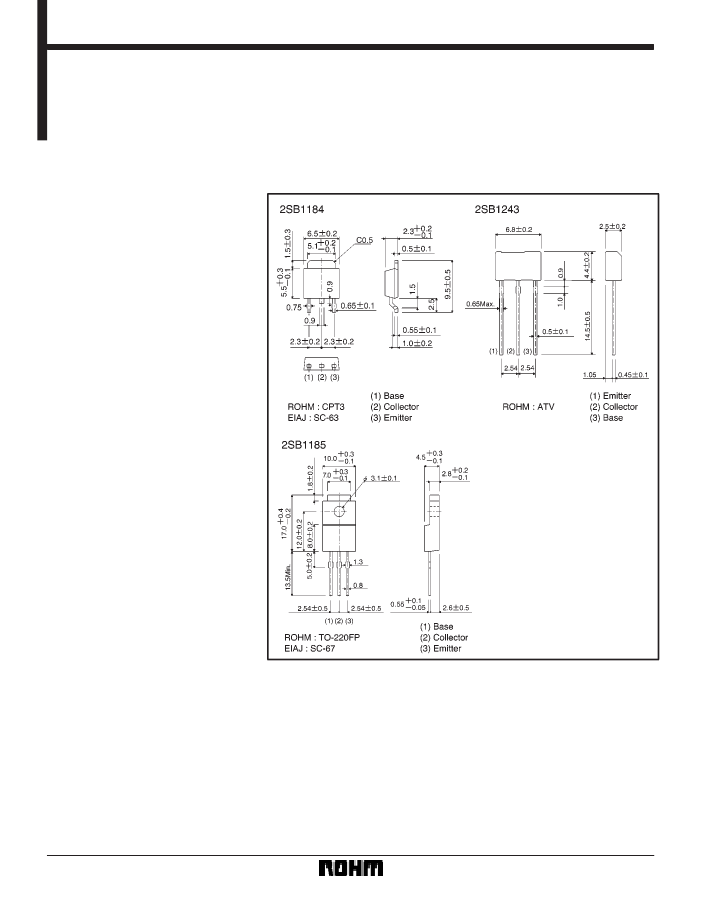

FExternal

dimensions (Units: mm)

(96-128-B57)

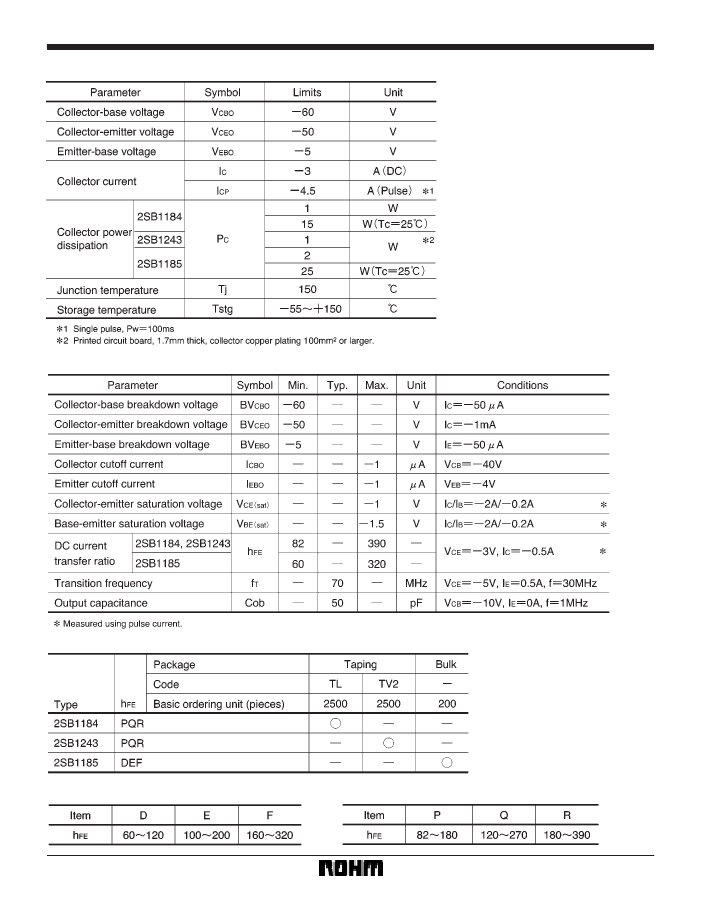

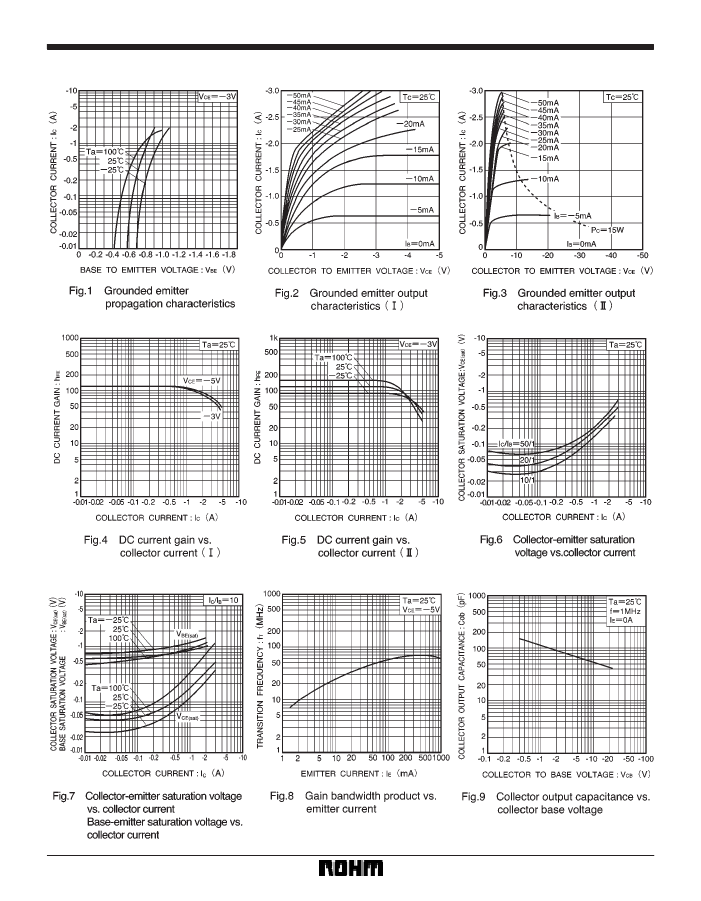

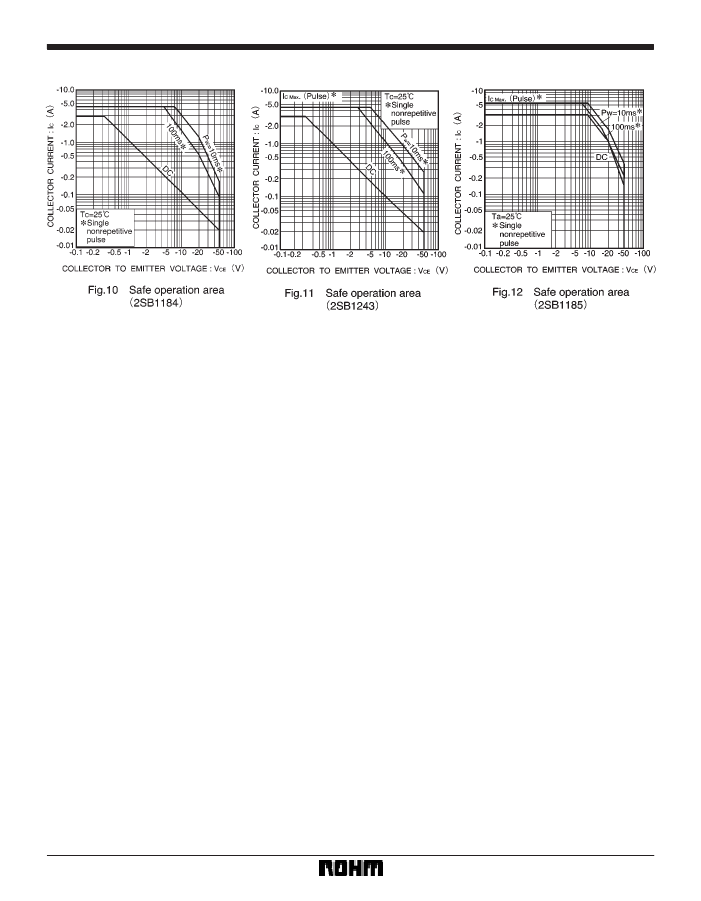

223

2SB1185D Related Products

	2SB1185D	2SB1184TL	2SB1185F	2SB1185E	2SB1185/F	2SB1185/E	2SB1185/D
Description	Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN	Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon,	Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN	Power Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN	3A, 50V, PNP, Si, POWER TRANSISTOR, TO-220FP, TO-220FP, 3 PIN	3A, 50V, PNP, Si, POWER TRANSISTOR, TO-220FP, TO-220FP, 3 PIN	3A, 50V, PNP, Si, POWER TRANSISTOR, TO-220FP, TO-220FP, 3 PIN
package instruction	FLANGE MOUNT, R-PSFM-T3	SMALL OUTLINE, R-PSSO-G3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow	compli	unknow	unknow	unknow	unknow	unknow
Shell connection	ISOLATED	COLLECTOR	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Maximum collector current (IC)	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	50 V	50 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	60	82	160	100	160	100	60
JESD-30 code	R-PSFM-T3	R-PSSO-G3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	SMALL OUTLINE	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	70 MHz	70 MHz	70 MHz	70 MHz	70 MHz	70 MHz	70 MHz
Base Number Matches	1	1	1	1	1	1	1
Parts packaging code	TO-220FP	-	TO-220FP	TO-220FP	TO-220FP	TO-220FP	TO-220FP
Contacts	3	-	3	3	3	3	3
ECCN code	EAR99	EAR99	EAR99	EAR99	-	-	-
JEDEC-95 code	TO-220AB	-	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
transistor applications	SWITCHING	-	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Maximum operating temperature	-	150 °C	-	-	150 °C	150 °C	150 °C
