T2801B-S: Description200V, 6A, TRIAC, TO-220AB; CategoryAnalog mixed-signal IC Trigger device; File Size71KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

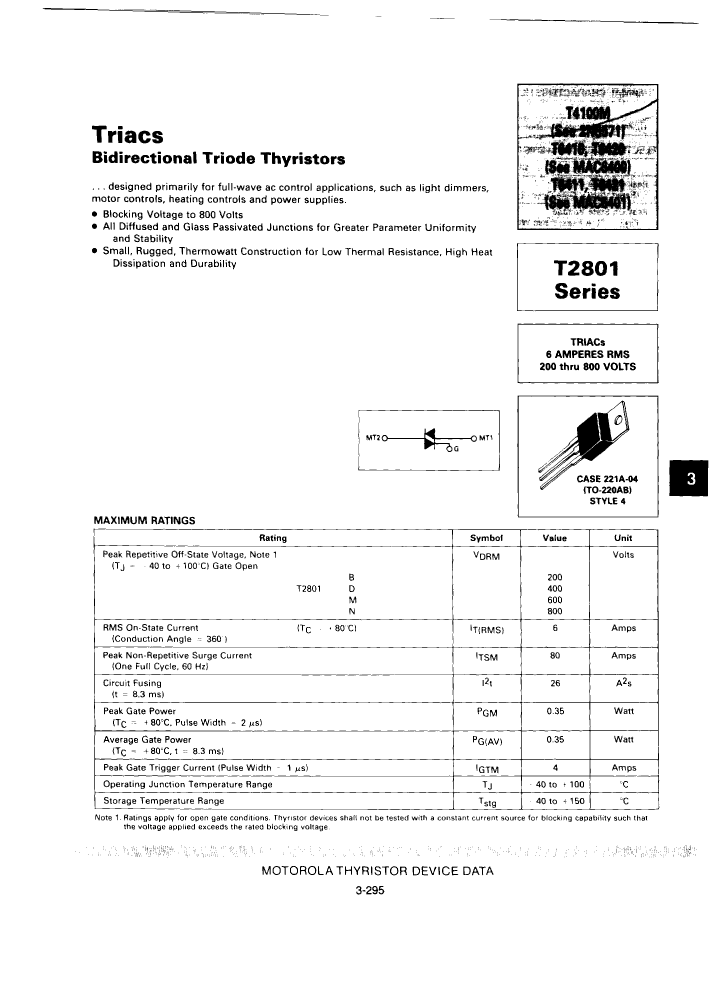

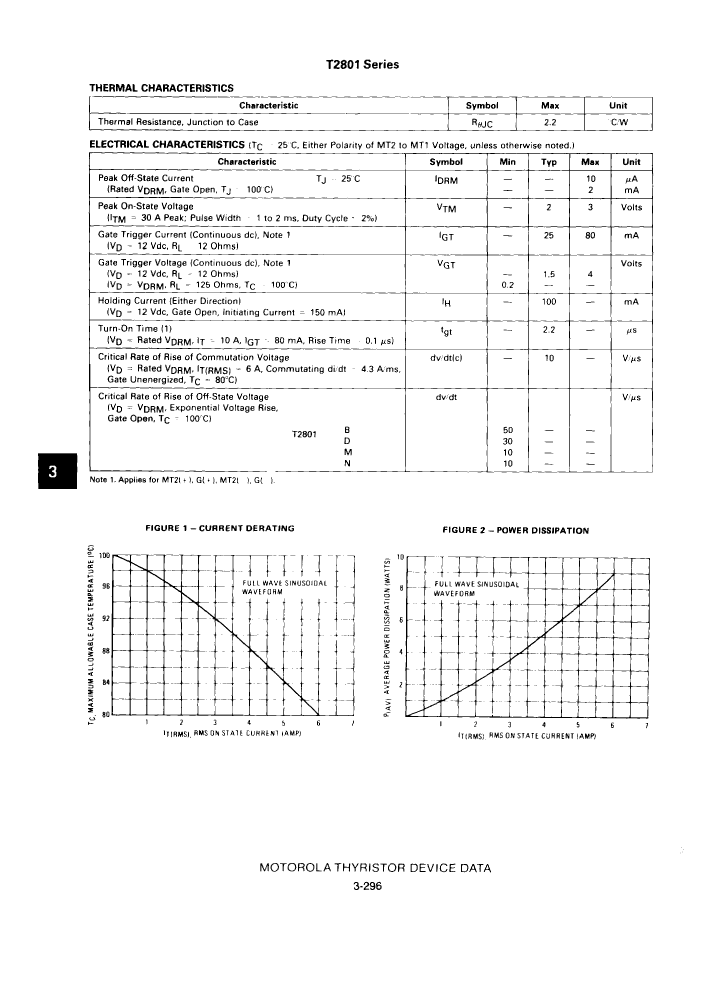

T2801B-S Overview

200V, 6A, TRIAC, TO-220AB

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	MAIN TERMINAL 2
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	80 mA
Maximum DC gate trigger voltage	4 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	6 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	200 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	TRIAC
