015403.5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 015403.5

015403.5: DescriptionVERY FAST BLOW ELECTRIC FUSE, 2A, SURFACE MOUNT; CategoryCircuit protection Circuit protection; File Size114KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

015403.5 Overview

VERY FAST BLOW ELECTRIC FUSE, 2A, SURFACE MOUNT

015403.5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Fusing characteristics	VERY FAST
body width	5.03 mm
body height	3.81 mm
Body length or diameter	9.73 mm
Circuit protection type	ELECTRIC FUSE
Installation features	SURFACE MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TAPE AND REEL
physical size	9.73mm x 5.03mm x 3.81mm
Rated current	3.5 A
Guideline	CSA; PSE; UL
surface mount	YES
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

Surface Mount Fuses

NANO

2®

> 154 OMNI-BLOK

Fuse and Holder Combination

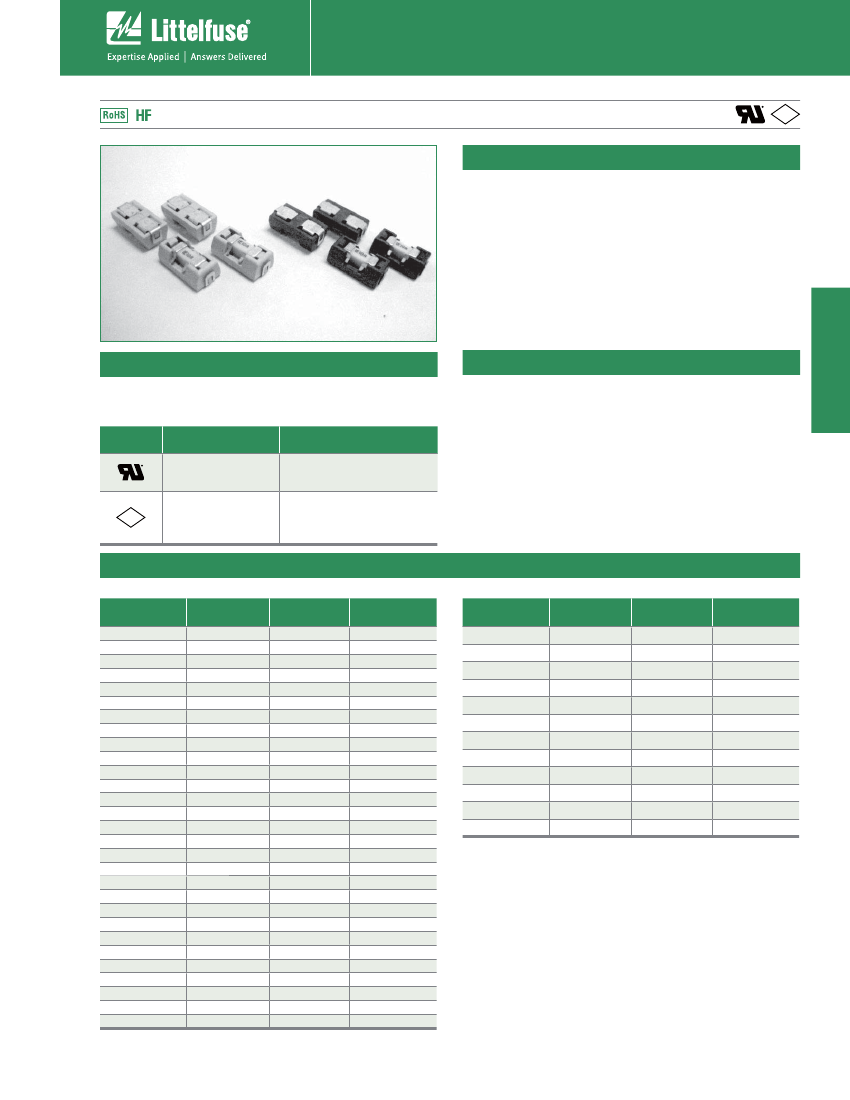

154/154T/154L/154TL Series OMNI-BLOK

Fuse and Holder Assembly

154L/154TL

(Black Colour)

Description

Agency Approvals

Recognized under the Components Program of Underwriters

Laboratories and Certified by CSA. Approved by METI from

1 through 5 amperes.

Agency

Agency File

Number

E14721

NBK030205-E10480A

Features

rating available

- Fast-Acting: 62mA - 10A

- Time-Lag: 375mA - 5A

temperature range

Ampere Range

154 Fast-Acting: 0.062A - 10A

154 Time-Lag: 0.375A - 7A

(For 0154L/0154TL series only)

154 Fast-Acting: 1A

154 Fast-Acting: 1A - 5A

154 Time-Lag: 1A - 5A

154 Fast-Acting: 6.3A - 10A

Halogen Free

Time-Lag options

available

of Nano

2®

type fuses

de-rating

NBK030205-E10480B

NBK101105-E184655

fuseholder

Ordering Information

With Very Fast-Acting Fuse Installed

Catalog

Number

0154.062

0154.080

0154.100

0154.125

0154.160

0154.200

0154.250

0154.315

0154.375

0154.400

0154.500

0154.630

0154.750

0154.800

0154001.

01541.25

015401.5

015401.6

0154002.

015402.5

0154003.

01543.15

015403.5

0154004.

0154005.

015406.3

0154007

0154008.

0154010.

Specifications are subject to change without notice.

Please refer to www.littelfuse.com/series/154.html

or /154T.html for current information.

With Time-Lag (Slo-Blo

) Fuse Installed

Fuse

Furnished

0451.062

0451.080

0451.100

0451.125

0453.160

0453.200

0453.250

0453.315

0453.375

0453.400

0453.500

0453.630

0453.750

0453.800

0453001.

04531.25

045301.5

045301.6

0453002.

045302.5

0453003.

04533.15

045303.5

0453004.

0453005.

045306.3

0453007

0453008.

0453010.

Revised: May 4, 2010

Ampere

Rating (A)

0.062

0.08

0.1

0.125

0.16

0.2

0.25

0.315

0.375

0.4

0.5

0.63

0.75

0.8

1.25

1.5

1.6

2.5

3.15

3.5

6.3

Amp

Code

.062

.080

.100

.125

.160

.200

.250

.315

.375

.400

.500

.630

.750

.800

001.

1.25

01.5

01.6

002.

02.5

003.

3.15

03.5

004.

005.

06.3

007

008.

010.

Catalog

Number

0154.375 T

0154.500 T

0154.750 T

0154001. T

015401.5 T

0154002. T

015402.5 T

0154003. T

015403.5 T

0154004. T

0154005. T

0154007 T

Ampere

Rating (A)

0.375

0.5

0.75

1.5

2.5

3.5

Amp

Code

.375

.500

.750

001.

01.5

002.

02.5

003.

03.5

004.

005.

007

Fuse

Furnished

0454.375

0454.500

0454.750

0454001.

045401.5

0454002.

045402.5

0454003.

045403.5

0454004.

0454005.

0454007

* The 453 and 454 Series fuses identified above have silver-plated end caps,

For 453 Series fuse replacement, either 451, 453 or 448 Series may be used.

For 454 Series fuse replacement, either 452, 454 or 449 Series may be used.

For detailed operating characteristic and performance information for each

of the fuse series mentioned above, please refer to their respective data

available online at www.littelfuse.com.

154 Series

154/154T

(Natural Colour)

The RoHS compliant 154 Series OMNI-BLOK

offers a

solution for efficient installation and easy replacement of

miniature Nano

2®

surface mount fuses.

Offered in a tape and reel package, this fuse and holder

combination can be installed on a PC board as an efficient

single step. Fuse replacement can be accomplished

without exposing the PC board to the detrimental effects

of solder heat.

The fuse holder unit may be sold as a stand-alone item,

shipped in bulk quantity (not pre-packaged in tape and reel

cartridges) using part number 01550900. Please contact

Littelfuse for additional information.

015403.5 Related Products

	015403.5	0154001.	0154002.	0154.250	0154.630	0154.750	FYQ-3941DX-03	FYQ-3941DX-13	0154007.T	015403.5T
Description	VERY FAST BLOW ELECTRIC FUSE, 2A, SURFACE MOUNT	VERY FAST BLOW ELECTRIC FUSE, 2A, SURFACE MOUNT	VERY FAST BLOW ELECTRIC FUSE, 2A, SURFACE MOUNT	VERY FAST BLOW ELECTRIC FUSE, 2A, SURFACE MOUNT	VERY FAST BLOW ELECTRIC FUSE, 2A, SURFACE MOUNT	VERY FAST BLOW ELECTRIC FUSE, 2A, SURFACE MOUNT	0.39Inch (9.90mm) digit height Four Digits Display	0.39Inch (9.90mm) digit height Four Digits Display	VERY FAST BLOW ELECTRIC FUSE, 2A, SURFACE MOUNT	TIME LAG BLOW ELECTRIC FUSE, 3.5A, SURFACE MOUNT
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	conform to	-	-	-	conform to
Maker	Littelfuse	Littelfuse	Littelfuse	Littelfuse	-	Littelfuse	-	-	-	Littelfuse
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	-	-	-	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	-	unknown	-	-	-	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	-	-	-	EAR99
Is Samacsys	N	N	N	N	-	N	-	-	-	N
Fusing characteristics	VERY FAST	VERY FAST	FAST	VERY FAST	VERY FAST	VERY FAST	-	-	VERY FAST	TIME LAG
body width	5.03 mm	5.03 mm	5.03 mm	5.03 mm	-	5.03 mm	-	-	-	5.03 mm
body height	3.81 mm	3.81 mm	3.81 mm	3.81 mm	-	3.81 mm	-	-	-	3.81 mm
Body length or diameter	9.73 mm	9.73 mm	9.73 mm	9.73 mm	-	9.73 mm	-	-	-	9.73 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	-	ELECTRIC FUSE	-	-	-	ELECTRIC FUSE
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	surface mount	SURFACE MOUNT	-	-	surface mount	SURFACE MOUNT
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	-	125 °C	-	-	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-	-	-	-55 °C
physical size	9.73mm x 5.03mm x 3.81mm	9.73mm x 5.03mm x 3.81mm	9.73mm x 5.03mm x 3.81mm	9.73mm x 5.03mm x 3.81mm	-	9.73mm x 5.03mm x 3.81mm	-	-	-	9.73mm x 5.03mm x 3.81mm
Rated current	3.5 A	1 A	2 A	0.25 A	2 A	0.75 A	-	-	2 A	3.5 A
Guideline	CSA; PSE; UL	CSA; PSE; UL	CSA; PSE; UL	CSA; UL	-	CSA; UL	-	-	-	CSA; PSE; UL
surface mount	YES	YES	YES	YES	-	YES	-	-	-	YES
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	-	-	WRAPAROUND	WRAPAROUND
Base Number Matches	1	1	1	1	-	1	-	-	-	1
