Astec Industry Standard
150 Watts

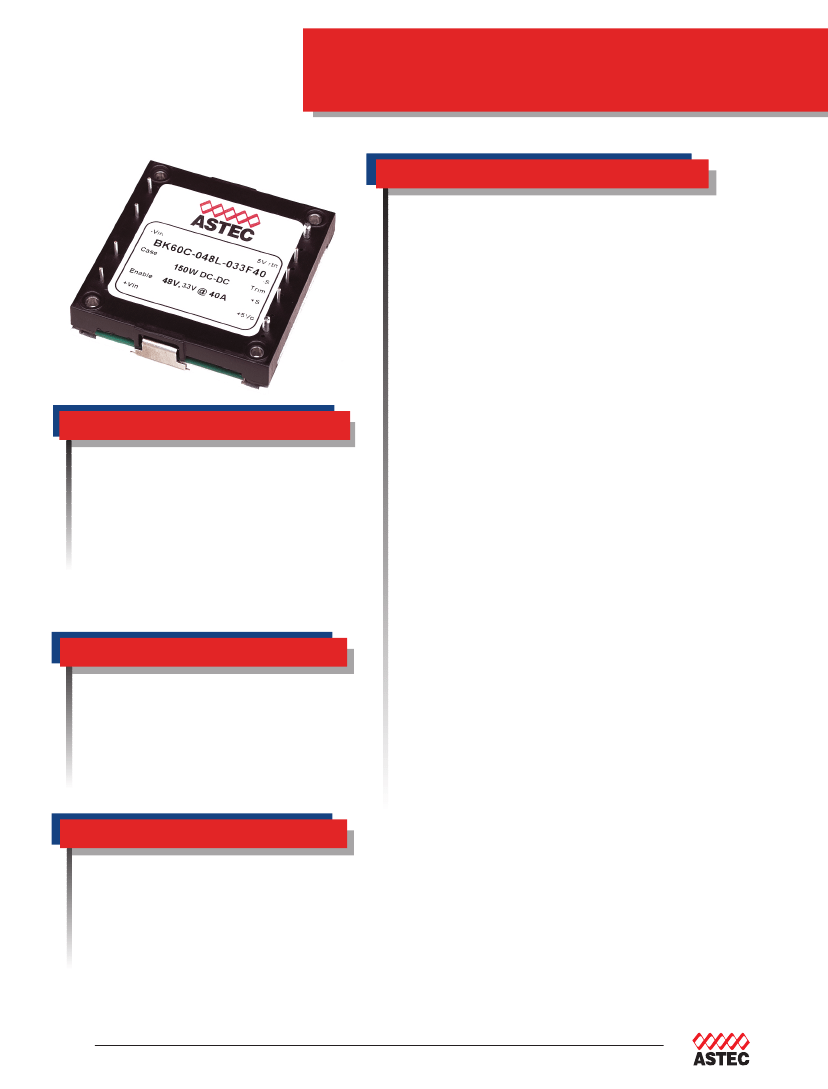

BK60C-40
High Efficiency
Total Power:
Input Voltages:
No. of Outputs:
150 Watts
48V
Single
Electrical Specs
Input
Input range
Input Surge
Efficiency
36-75 VDC
100V / 100ms
89% @ 3.3V (typ)
Output
Load regulation
Line regulation
Ripple and noise
Remote sense
Output voltage
adjust range
Transient Response
10mV typical down to no load
(output below 5V)
10mV typical
(outpt below 5V)
200mV p-p max)
Up to 0.5V
±20% of nominal output
10% max deviation with 25% to 75%
full load (output 5V and above)
200mV
130% nominal output
(output 5V and above)
160% nominal outpt
(2.2V output)
140% nominal output
(3.3V output)
115% maximum output
Special Features
• High efficiency, 5V@89%
• -40°C to 100°C baseplate operating
temperature (no derating)
• Positive and Negative enable function
• Low output ripple and noise
• High capacitive load limit on start-up
• Remote sense compensation
• Regulation to zero load
• Fixed frequency switching (300 kHz)
Environmental
Operating temperature (baseplate):
-40°C to +100°C
Storage temperature: -55°C to +105°C
FE r
LI fo
F
O
ND ebsite s
E
w
ge
ee ate pa
S
rn
lte
a
Overvoltage Protection
Current Limit
Control
Voltage Adjust
Enable
90 to 110%
TTL compatible (positive & negative
enable options)
Notes:
Overtemperature protection: 110°C typical
MTBF: >1 million hours
1. Nominal values apply with sense pins connected and other
control pins unconnected.
2. Specifications subject to change without notice.
Safety
UL
UL 1950
CAN22.2-950
EN60950
TUV
44
America’s (USA): 1-888-41-ASTEC
Europe (UK): 44 (1384) 842-211
Asia (HK): 852-2437-9662
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Fwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
BK60C-40
Ordering Information
Input
Voltage
48V
48V
48V
Output
Voltage
1.8V @ 40A
2.5V @ 40A
3.3V @ 40A
Efficiency
81% min
84% min
86% min
Model Number
BK60C-048L-018F40H
BK60C-048L-025F40H
BK60C-048L-033F40H
NOTES:
Efficiency is measured at full load and Tc=70 Deg C
"N" added to suffix = Negative Enable (Omit suffix for positive enable (default))
Pin Assignments
Single Output
1.
2.
3.
4.
5.
6.
7.
8.
9.
-Vin
Case
Enable (on/off)
+Vin
-5V Rtn
- Sense
Trim
+ Sense
+Out
.50
[12.7 ]
Notes:
1. 20 mHz bandwidth. An external 2.2 mf ceramic capacitor is recommended to
be placed from +V out to -V out.
2. Requires a 2.2 mf, 100V film capacitor connected between +V in and -V in to
meet FCC class A and ETS300-386-1 requirements for conducted noise.
Consult Factory for filtering information to meet FCC class B, VDE or EIC spec-
ifications.
3. All specifications are typical at nominal line, full load, and 25°C unless
otherwise noted.
4. All specifications subject to change without notice. Mechanical drawings are
for reference only.
5. Please refer to the Technical Reference Notes for more information.
6. Warranty: 1 yr
FE r
LI fo
F
O
ND ebsite s
E
w
ge
ee ate pa
S
rn
lte
a
.20 MIN.
[5.0]
NOTE
1
2.30
[58.4]
1.900
[48.26]
1
5
2
6
7
8
2.40
[61.0]
2.000
[50.80]
1.400
[35.56]
.600
[15.24]
3
4
9
Mounting Inserts
M3 X .5 (4 places)
BOTTOM VIEW
Case Material: Metal base, plastic cover
Weight: 2.75 Oz / 78 Grams
Astec Industry Standard
www.astec.com
45
