BM80A-048L-033F70 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> BM80A-048L-033F70

BM80A-048L-033F70: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 300W, Hybrid, FM-22; CategoryPower/power management The power supply circuit; File Size120KB，2 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

BM80A-048L-033F70 Overview

DC-DC Regulated Power Supply Module, 1 Output, 300W, Hybrid, FM-22

BM80A-048L-033F70 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Artysen Embedded Technologies
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL; CSA; VDE; CE
Maximum input voltage	72 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XUFM-P22
JESD-609 code	e0
Maximum load regulation	0.1%
Number of functions	1
Output times	1
Number of terminals	22
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Maximum output voltage	3.96 V
Minimum output voltage	2.64 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Protect	THERMAL; CURRENT; OUTPUT OVER VOLTAGE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	300 W
Fine-tuning/adjustable output	YES

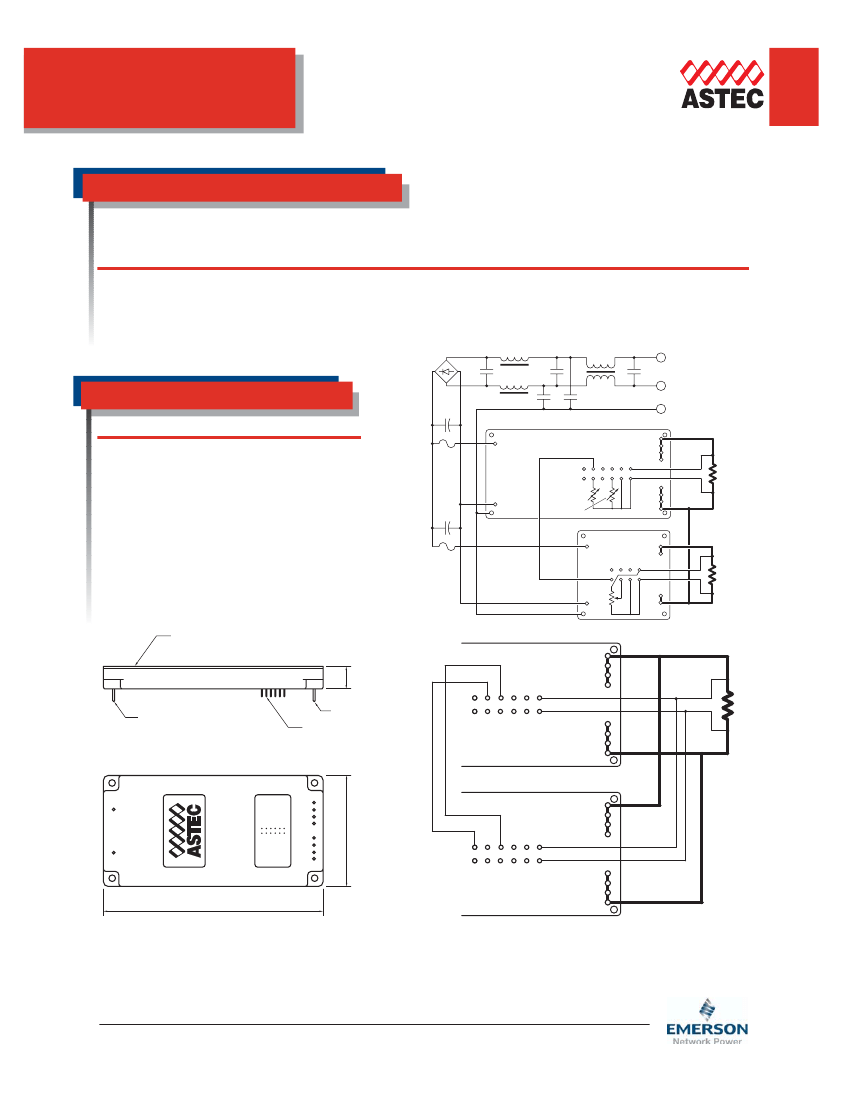

Preview

Download Datasheet

View All

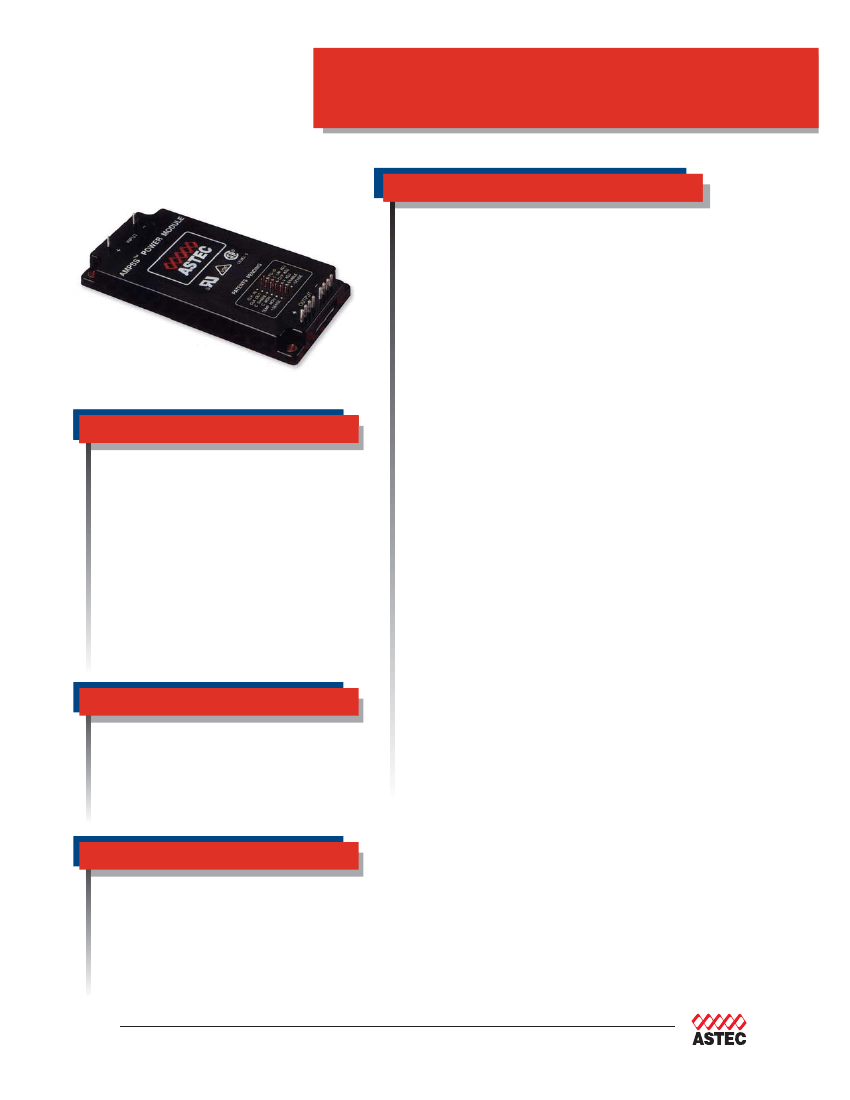

Astec Integrated Power

300 Watts

BM80A

Total Power:

Input Voltages:

No. of Outputs:

300 Watts

48V or 300V

Single

Electrical Specs

Input

Input Range

Efficiency

180 to 400 VDC or 36 to 72 VDC

83% typical (5V @ 60A)

Control

Voltage Adjust

Enable

Current Limit Adjust

Clock Input (external sync)

Clock Output

(internal clock)

Power Good/Identification

Temperature

Monitor Output

Current Monitor Output

Over Voltage

Protection Adjust

80 to 120% Vo

TTL compatible (low to enable)

20 to 100% Io

3.3 to 5.5Vp-p @ 1MHz ± 10%

4.5Vp-p typical @ 1MHz ± 0.5%

High (Vo) = power good.

10 mV/°K (2.73V = 0°C)

0 to 1mA (1 mA = 100% Io rated)

110 to 150% Vo linear programming

Special Features

• 300W Continuous power at 85°C baseplate

temperature

• 54W/in3 (3.3W/cm3)

• High efficiency - 83%

at full rated output

• 1MHz Fixed frequency

• Low output ripple and noise

• Excellent transient response

• Safety isolated low voltage

interface with ALPTM linear control

• High reliability - over 1 million

hours MTBF

• Wide input voltage range

• Parallelable with accurate

current sharing

Output

Load Regulation

Line Regulation

Noise/Ripple

Remote sense

Output Voltage

Adjust Range

Transient Response

Current Share Accuracy

Overvoltage Protection

Current Limit

0.1% typical down to no load

0.02% typical

50mV typical

Up to 0.5V

±20% of nominal output

3% typical deviation with 250µs

recovery (25-75% full load)

3% typical

115% Vo (nominal)

110% Io max

Environmental

Operating temperature (baseplate):

-20°C to +85°C

Storage temperature: -40°C to +105°C

Overtemperature protection: 90°C typical

MTBF:> 1 million hours (50°C baseplate)

Notes

Nominal values apply with sense pins connected and other control

pins unconnected.

Specifications subject to change without notice.

Safety

UL 1950

CSA

CSA22.2-234

E132002

CSA22.2-950

LR53982C

VDE

IEC950 20396-3336-1005 & 1006

EN60950

CEMark (LVD)

North America: 1-888-41-ASTEC

Europe (UK): 44(0)1384-84221

Asia (HK): 852-2437-9662
