BMMV42S1N24D12/16C0N datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BMMV42S1N24D12/16C0N

BMMV42S1N24D12/16C0N: DescriptionRotary Position Encoder, MINIATURE PACKAGE; CategoryLED optoelectronic/LED photoelectric; File Size94KB，2 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric Compare View All

BMMV42S1N24D12/16C0N Overview

Rotary Position Encoder, MINIATURE PACKAGE

BMMV42S1N24D12/16C0N Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
package instruction	MINIATURE PACKAGE
Reach Compliance Code	unknown
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	ROTARY POSITION ENCODER

Preview

Download Datasheet

View All

Magnetic absolute multi-turn shaft encoder

BMMV –

MAGRES

DeviceNet

features

•

miniature multi-turn encoder / DeviceNet

magnetic sensing principle

resolution: single-turn 12 bit and multi-turn 16 bit

housing ø 42 mm

integrated fieldbus

high resistance against shock and vibration

resolution and zero point programmable

order designation

10 - 30 VDC

typ. 100 mA (at 24 VDC)

CAN-bus, standard

ISO/DIS 11898

BMMV 42S1N 24D12/16

connection

cable 1 m radial

connector radial

shaft

shaft 6 mm IP 65

shaft 10 mm IP 65

general data

voltage supply

max. supply current

no load

output circuit

protocol/profile

operating modes

signal code

max. resolution

single-turn

multi-turn

max. error limit

repeatability

max. baud rate

counter buffering

direction of rotation

eviceNet, Device Profile for

Encoders V1.0

I/O-Polling, Cyclic, Change of State

natural binary code

12 bit (1 step = 5' 16'')

16 bit (262'144 revolutions)

±1°

0,3°

500 kbit/s

with Lithium cell typ. 19 years

looking at the flange, position

counts up as the shaft rotates

clockwise (CW), programmable

resolution multi-turn

16 bit

resolution single-turn

12 bit

voltage range, output signals

24D 10 - 30 VDC, DeviceNet

signal code

binary code

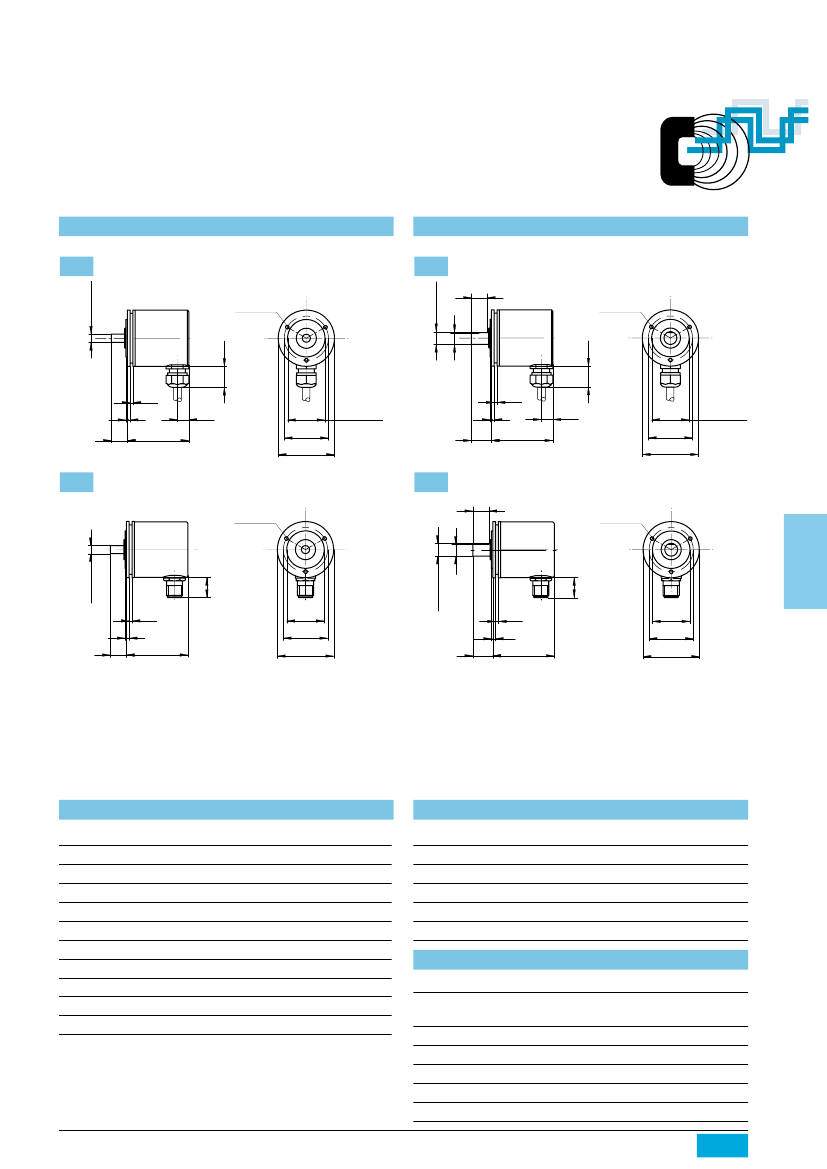

mechanical data

max. revolutions

moment of interia

torque

max. shaft load

product life

conditions

max. protection class

material

weight

12'000 rpm (mech.)

6'000 rpm (electr.)

12 x 10 kgm

-7

ambient conditions

temperature range

relative humidity

vibration

shock

noise immunity

emitted interference

-20...+85 °C

max. relative humidity 95%

IEC 60068-2-6

(≤ 300 m/s / 10 - 2'000 Hz)

IEC 60068-2-27

(≤ 1'000 m/s

/ 6 ms)

EN 61000-6-2

EN 61000-6-3

typ. 0,93 cNm

(3'000 rpm / 20 °C)

axial: 10 N

radial: 25 N

depending on ambient

(typ. 10

revolutions.)

IP 65

housing: steel

flange: aluminum

approx. 190 g

3.26

www.baumerelectric.com
