REVISION K
NOTES:
C
1.
REPRESENTS A CRITICAL DIMENSION.
2. MAX PIN ROTATION IN BODY TO BE 2°.
3. PUSHOUT FORCE TO BE 1lb. [4.45 N] MIN.
4. NOTE DELETED
5. FOR LOCKING CLIPS: .75lb. [3.336 N] MIN RETENTION
6. MEASURE AT BEND.
DESIGNED AND DIMENSIONED
IN INCHES [MILLIMETERS]
ETMM-1XX-02-X-D-XX-XX
No. OF POSITIONS
-02 THRU -25
OPTION
-LC: LOCKING CLIP
(USE LC-05-TM FOR THROUGH HOLE STYLE, SEE FIG 1)
(USE LC-07-TM FOR -SM STYLE, SEE FIG 3, SHT. 2)
NOT AVAILABLE FOR -RA STYLE
-TR: TAPE & REEL (FOR -SM OPTION ONLY)
-K: POLYIMIDE FILM PAD
(USE K-DOT-.295-.406-.005, SEE FIG 4, SHT 3)
NOT AVAILABLE WITH -TH OPTION
-XX: PIN No. TO BE OMITTED (POLARIZED OPTION)
BODY HEIGHT
-TH: THROUGH HOLE (SEE FIG 1, SHT 1)
-RA: RIGHT ANGLE (SEE FIG 2, SHT 2)
-SM: SURFACE MOUNT (SEE FIG 3, SHT 2)
ROW SPECIFICATION
-D: DOUBLE (USE ETMM-XX-D-LC)
LEAD STYLE
PLATING SPECIFICATION
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL

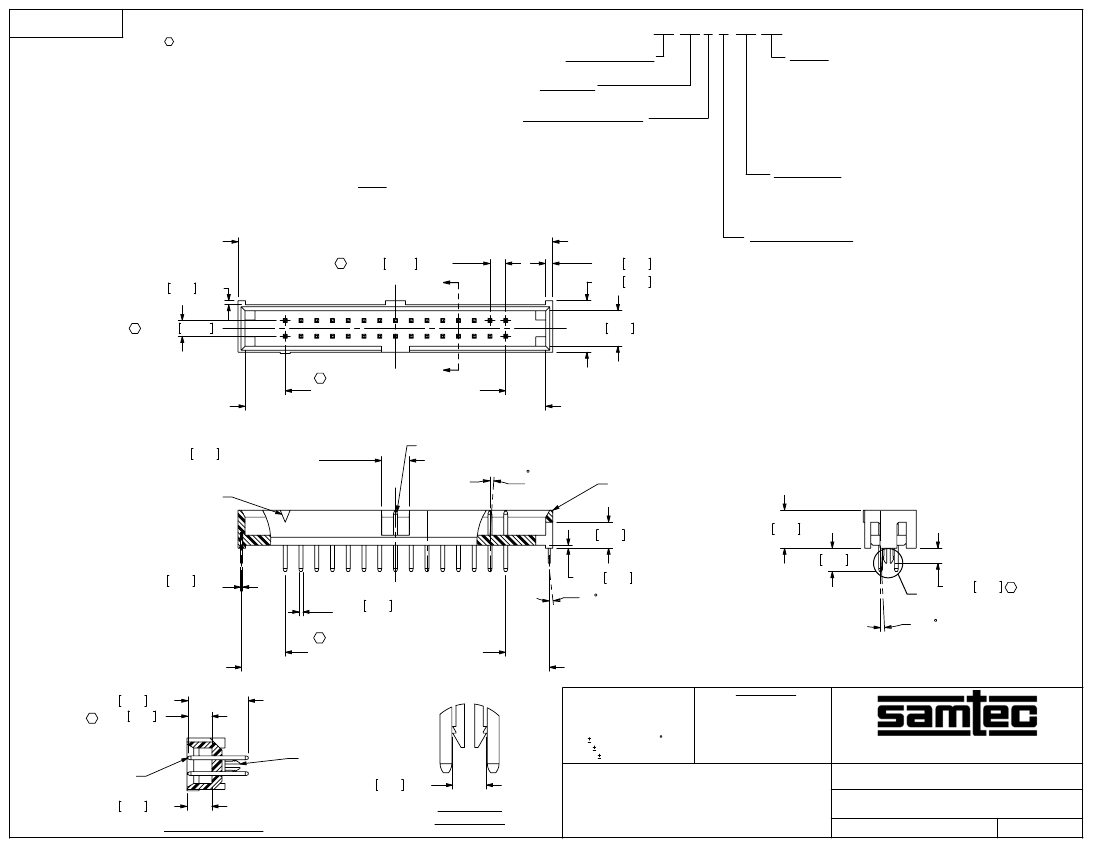

ETMM-115-02-X-D-TH-LC SHOWN
FIG1
(No. OF POS. x .0787[2.000]) + .3926[9.972] REF
C
.0787 2.000 (TYP)
"A"
.037 0.94 REF
.257 6.54 REF
C .177 4.51 REF
L
.020 0.51 REF
.0787 2.000
02 04
C
01 03
"A"
C
L
(No. OF POS. - 1) x .0787[2.000]
(No. OF POS. x .0787[2.000]) + .3226[8.194] REF
C
.140 3.56 REF
ONLY FOR POS. -05 THRU -25
FIRST POSITION
INDICATOR
CONTACT AREA
2 MAX SWAY
(TYP)
ETMM-XX-D-LC
.130 3.30 REF
.190 4.83 REF
.117 2.97 REF
.010 0.25 REF
(TYP)
C
L
.020 0.50 SQ. REF
(TYP)
C
.015 0.38 REF
2 MAX SWAY
(TYP)
'D'
.075 1.91
C
2 MAX TOE
(TYP)
(No. OF POS. - 1) x .07874[2.000]
(No. OF POS. x .0787[2.000]) + .3576[9.083]±.0030[0.076]
.302 7.67 REF
C
.120 3.05
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
LC-05-TM
T-1S13-07-XX-2
.125 3.18 REF
.056 1.42 REF
.XX: .01 [0.3]
1
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
SECTION "A"-"A"
DETAIL 'D'
SCALE 6 : 1
LCP INSULATOR: LCP
COLOR: BLACK
TERMINAL: PHOSPHOR BRONZE
F:\DWG\MISC\MKTG\ETMM-1XX-02-X-D-XX-XX-MKT.SLDDRW
2MM SHROUDED TERMINAL STRIP
BY:
T.NEWTON 12/17/2007
ETMM-1XX-02-X-D-XX-XX
SHEET
1
OF
3
REVISION K
.120 3.05
.413 10.49 REF
.228 5.79 REF
ETMM-115-02-X-D-RA SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
C
FIG 2
2 MAX SWAY
(TYP)
C
"B"
02 04
.0787 2.000
IN PROCESS 1
(FOR -RA ONLY)
.120 3.05
T-1S13-19-XX-2
C
90° 2°
(TYP)
.0787±.005 2.00±0.13
.060 1.52
C
01 03
"B"
CONTACT AREA
T-1S13-22-X-2
.576 14.63 REF
.571 14.50 REF
.070 1.77 REF
T-1S13-19-XX-2
C
.120 3.05
.090 2.29 REF
T-1S13-19-XX-2
SECTION "B"-"B"
T-1S13-22-XX-2
IN PROCESS 2
(FOR -RA ONLY)
02 04
.085 2.16
T-1S13-20-XX-2

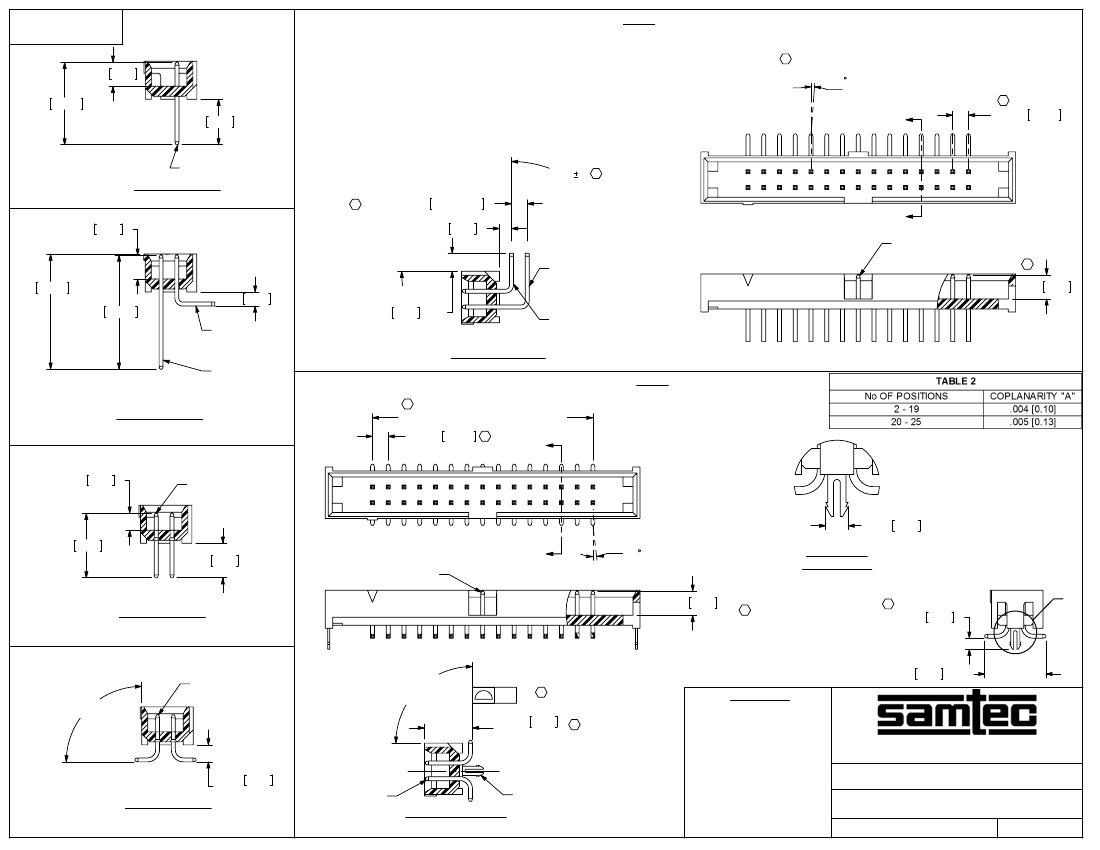

ETMM-115-02-X-D-SM-LC SHOWN
C
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(No. OF POS. - 1) x .0787[2.000]
.0787 2.000
C
FIG 3
"C"
01 03
.323 8.20 REF
.173 4.39 REF
CONTACT AREA
"C"
2 MAX SWAY
(TYP)
.120 3.05
.056 1.42 REF
DETAIL 'E'
SCALE 4 : 1
C
C
IN PROCESS 1
(FOR -SM ONLY)
'E'
.055 1.40
T-1S13-20-XX-2
+3°
90°
- 2°
90°
- 2°
(TYP)
+3°
.295 7.49 REF
C
"A"
(SEE TABLE 2)
.240 6.10
(SEE NOTE 6)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
C
IN PROCESS 2
(FOR -SM ONLY)
.085 2.16
REF
C
L
T-1S13-20-XX-2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SECTION "C"-"C"
LC-07-TM
2MM SHROUDED TERMINAL STRIP
SHEET SCALE: 2:1
F:\DWG\MISC\MKTG\ETMM-1XX-02-X-D-XX-XX-MKT.SLDDRW
BY:
T.NEWTON 12/17/2007
ETMM-1XX-02-X-D-XX-XX
SHEET
2
OF
3
REVISION K
C

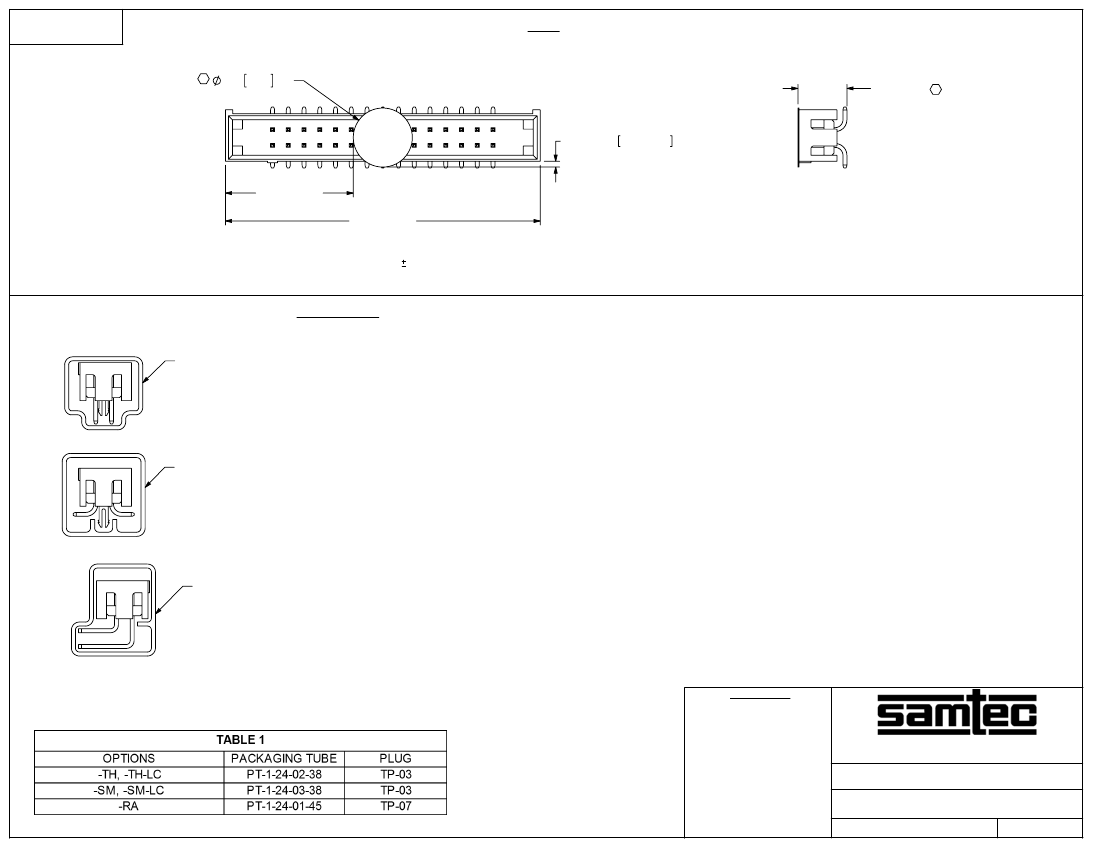

ETMM-115-02-X-D-SM-K SHOWN
(DIFFERENT AS SHOWN OTHERWISE SAME AS FIG 1)
.295 7.50 REF
.245 [6.22]
C
FIG 4
.029±.020 0.74±0.51
"S"
(SEE NOTE)
"R"
(SEE NOTE)
NOTE: "R" = USED MEASURED DIMENSION (REF)
"S" = {("R" - .2953[7.50]) / 2} .020[0.51]
ALL PARTS ARE LOADED WITH POSITION 1
TOWARD ARROW EXCEPT -RA OPTION
PT-1-24-02-38
PACKAGING
PT-1-24-03-38
PT-1-24-01-45
NOTE: ALL POSITIONS ARE TO BE TUBED.
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
2MM SHROUDED TERMINAL STRIP
DWG. NO.
F:\DWG\MISC\MKTG\ETMM-1XX-02-X-D-XX-XX-MKT.SLDDRW
BY:
T.NEWTON 12/17/2007
ETMM-1XX-02-X-D-XX-XX
SHEET
3
OF
3
