MBS-2025-1B2T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MBS-2025-1B2T

MBS-2025-1B2T: DescriptionD Microminiature Connector, 25 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size328KB，4 Pages; ManufacturerCristek Interconnects Inc

Download Datasheet Parametric View All

MBS-2025-1B2T Overview

D Microminiature Connector, 25 Contact(s), Male, Solder Terminal, Plug,

MBS-2025-1B2T Parametric

Parameter Name	Attribute value
Maker	Cristek Interconnects Inc
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: M83513
Body/casing type	PLUG
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MBS
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ALUMINUM ALLOY
Housing size	D
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

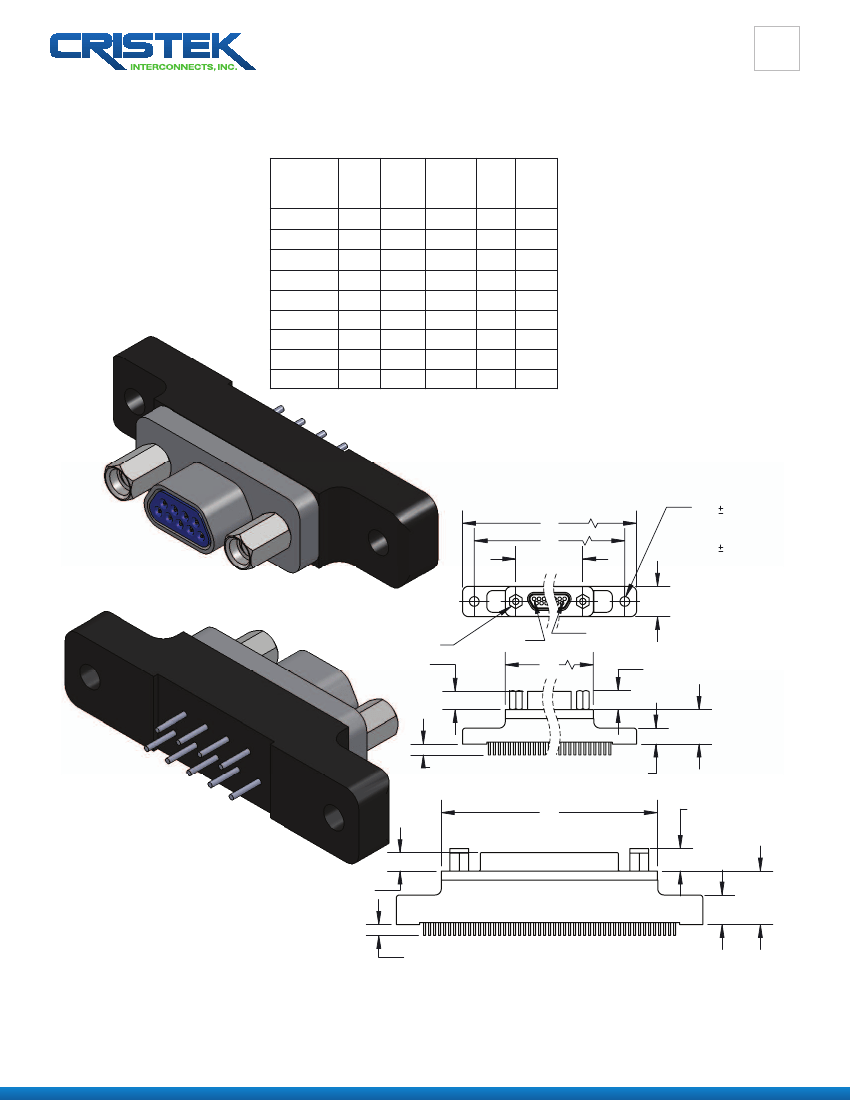

Micro D Metal Shell

Straight Board Mount

www.cristek.com

1.2

NO. OF

CONTACTS

100

MAX

1.390

1.690

1.740

2.040

2.340

2.270

2.870

3.070

±.007

1.150

1.450

1.500

1.800

2.100

2.000

2.600

2.800

BSC

.565

.715

.865

.965

1.115

1.265

1.215

1.515

1.800

MAX

.885

.945

1.185

1.275

1.575

1.875

1.775

1.735

2.585

MAX

.308

.351

.460

PLUG

PIN #1

RECEPTACLE

SOCKET #1

.096 .005 DIA

HOLE

FOR 9-69

.125 .003 DIA

HOLE

FOR 100

#2-56 UNC-2B JACKPOST

FOR 9-69

#4-40 UNC 2B JACKPOST

FOR 100

.199 MAX

RECEPTACLE

.190 JACKPOST

.185

.355

MAX

SEE TERMINATION

OPTIONS

.165

MAX

.190 JACKPOST

.185

.199 MAX

RECEPTACLE

.303

MAX

SEE TERMINATION

OPTIONS

.550

MAX

TOLERANCE: .XXX ±.005

.XX ±.01

CRISTEK.COM

ANGLE ±1°

MICRO-D METAL SHELL

888.265.9162

STRAIGHT BOARD MOUNT

TITLE

DWG. NO.

SHT

REV

MBS
