6745-2245: DescriptionBoard Connector, 24 Contact(s), Straight, Solder Terminal, Locking; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

6745-2245 Overview

Board Connector, 24 Contact(s), Straight, Solder Terminal, Locking

6745-2245 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.378 inch
subject depth	0.504 inch
body length	2.035 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P24
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact material	BRASS
insulator material	NYLON
Manufacturer's serial number	6745
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

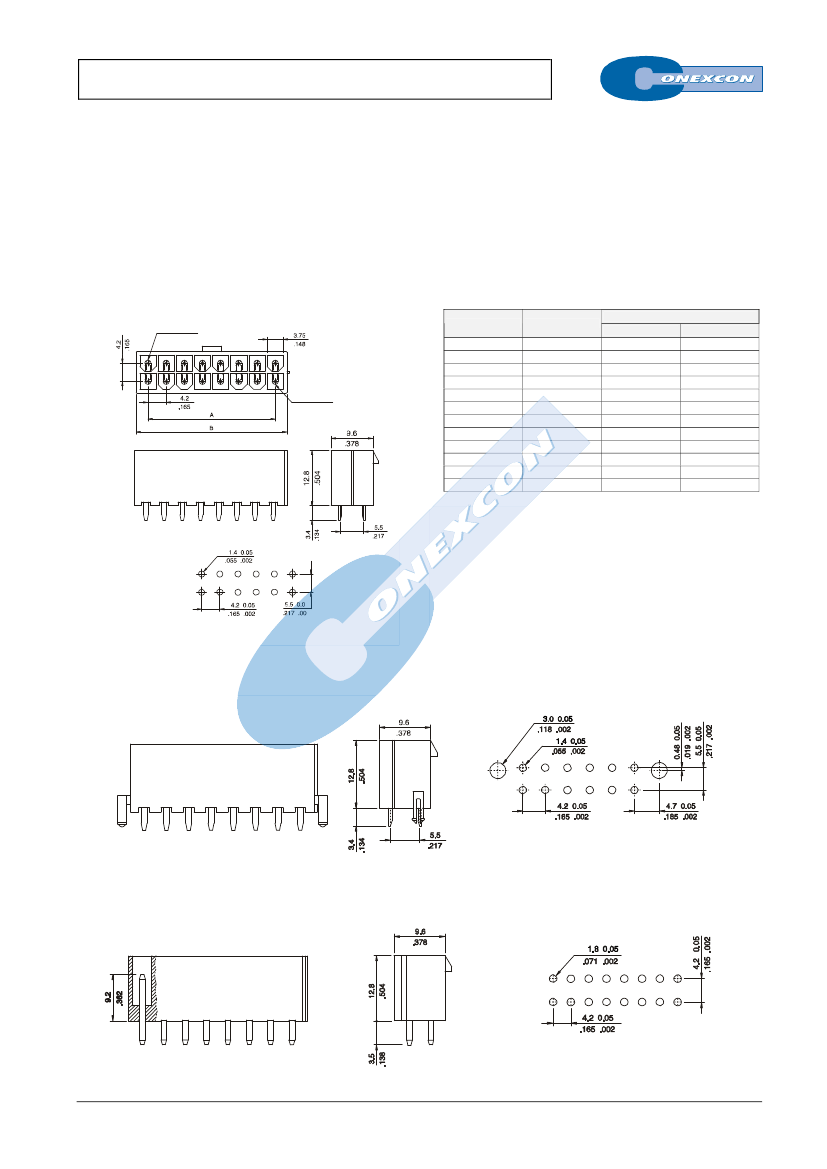

4.20mm MINI POWER VERTICAL HEADER

6745 SERIES.

4.20mm(0.165”). For High Current / High Density

Features



Available in 2 through 24 circuits

Insulator Material: Nylon 6/6 UL 94V-0 or UL94V-2

Contact Material: Tinned Brass

Mates with 6740 series housing

Positive lock



Available circuit distribution in PCB:

5.50 x 4.20mm or 4.20 x 4.20mm

Available with or without mounting pegs

For

GWT

option (Glow Wire Test Approval), please

add

E

at the end of Part Number (Example: 6745-XXXXE)

Ordering and Dimensional Information

Dimensional Information

Version: V=0 and V=1.

Last circuit

Circuit Size

2

4

6

8

Circuit 1

Part Number

6745 – 202V

6745 – 204V

6745 – 206V

6745 – 208V

6745 – 210V

6745 – 212V

6745 – 214V

6745 – 216V

6745 – 218V

6745 – 220V

6745 – 222V

6745 – 224V

Dimensions

A

-

4.20 (0.156)

8.40 (0.331)

12.60 (0.496)

16.80 (0.661)

21.00 (0.827)

25.20 (0.992)

29.40 (1.157)

33.60 (1.322)

37.80 (1.487)

42.00 (1.652)

46.20 (1.817)

B

5.50 (0.217)

9.70 (0.382)

13.90 (0.547)

18.10 (0.713)

22.30 (0.878)

26.50 (1.043)

30.70 (1.209)

34.90 (1.374)

39.10 (1.539)

43.30 (1.705)

47.50 (1.870)

51.70 (2.035)

10

12

14

16

18

20

22

24

V = Connector Options

ø

±

RECOMMENDED HOLE PATTERN



V =

0.

UL 94V-0 Without mounting pegs

V =

1.

UL 94V-2 Without mounting pegs

V =

4.

UL 94V-2 With mounting pegs

V =

5.

UL 94V-0 With mounting pegs

V =

6.

UL 94V-2. Sq. pin 1.14mm W/O mounting pegs

V =

7.

UL 94V-0. Sq. pin 1.14mm W/O mounting pegs

Version: V=4 and V=5.

ø

±

ø

±

RECOMMENDED HOLE PATTERN

Version: V=6 and V=7.

ø

±

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

L-XX

Recommended Resources

Forward rotation starting circuit that can send out a signal when starting

High power operational amplifier 02

Touch switch circuit using frequency-voltage converter

single conversion flash

Photoelectric isolation circuit between TTL circuit and relay circuit

810E computer motherboard circuit diagram_06
