MUF-PK8W-Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MUF-PK8W-Y

MUF-PK8W-Y: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size88KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

MUF-PK8W-Y Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Plug, ROHS COMPLIANT

MUF-PK8W-Y Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MUF
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	COPPER ALLOY/METAL
Total number of contacts	8
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

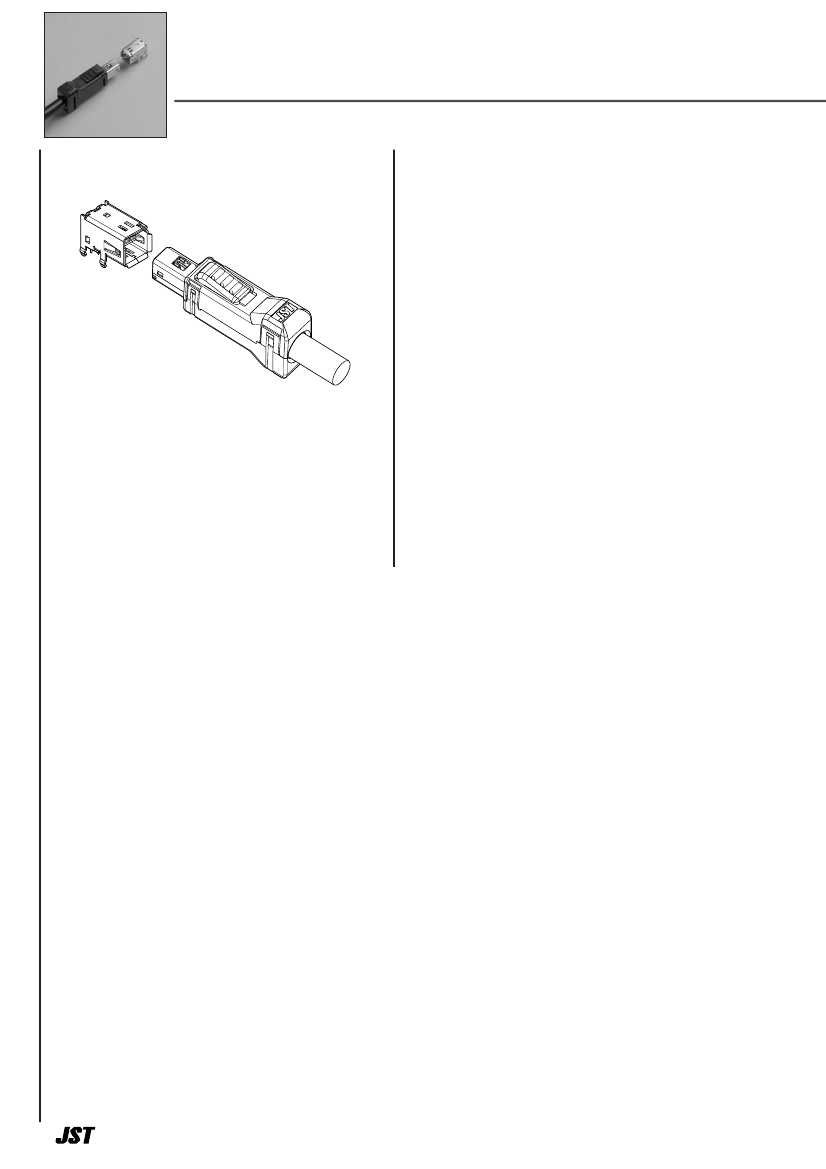

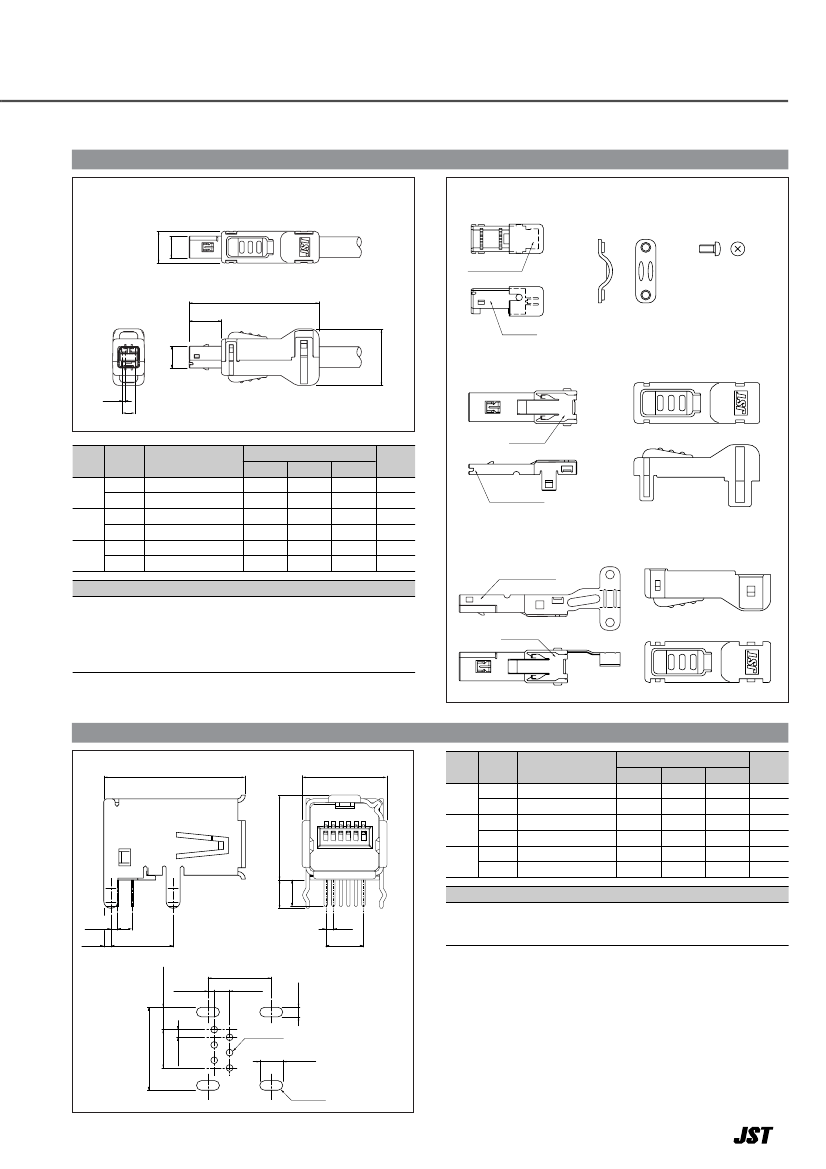

MUF

CONNECTOR

0.8mm pitch/For Interface

Specifications –––––––––––––––––––

• Current rating: 1.0A AC, DC

• Voltage rating: 30V AC, DC

• Temperature range:

55˚C to

85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/50m

Ω

max.

After environmental testing/100m

Ω

max.

• Insulation resistance: Initial value/100M

Ω

min.

• Withstanding voltage: Initial value/100V AC/minute

• Applicable wire: AWG#28 to #24

Conductor insulation O.D./1.2mm max.

Cable O.D./6.8mm max.

• Applicable PC board thickness: 1.6mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

This connector is the shielded interface

connector with locking mechanism.

• Plug side: Easy assembling method

• Receptacle side: The miniaturization is

realized

• Keying: Corresponding to the mis-insertion

prevention

MUF-PK8W-Y Related Products

	MUF-PK8W-Y	MUF-RS10DK-GKXR	MUF-RS10DS-GKYR	MUF-PK6K-X	MUF-PK6W-Y	MUF-PK8K-X	MUF-RS6DK-GKXR	MUF-RS6DS-GKYR	MUF-RS8DK-GKXR	MUF-RS8DS-GKYR
Description	Telecom and Datacom Connector, 8 Contact(s), Male, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 10 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 10 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 6 Contact(s), Male, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 6 Contact(s), Male, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 8 Contact(s), Male, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 6 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 6 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	PLUG	PLUG	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	MALE	FEMALE	FEMALE	MALE	MALE	MALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	MUF	MUF	MUF	MUF	MUF	MUF	MUF	MUF	MUF	MUF
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	BOARD	BOARD	CABLE	CABLE	CABLE	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN/NICKEL	TIN	TIN/NICKEL	TIN
Shell material	COPPER ALLOY/METAL	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY/METAL	COPPER ALLOY/METAL	COPPER ALLOY/METAL	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Total number of contacts	8	10	10	6	6	8	6	6	8	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Is it lead-free?	Lead free	-	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Maker	JST	-	-	JST	JST	JST	JST	JST	JST	JST
Installation method	-	RIGHT ANGLE	RIGHT ANGLE	-	-	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Termination type	-	SOLDER	SOLDER	-	-	-	SOLDER	SOLDER	SOLDER	SOLDER
