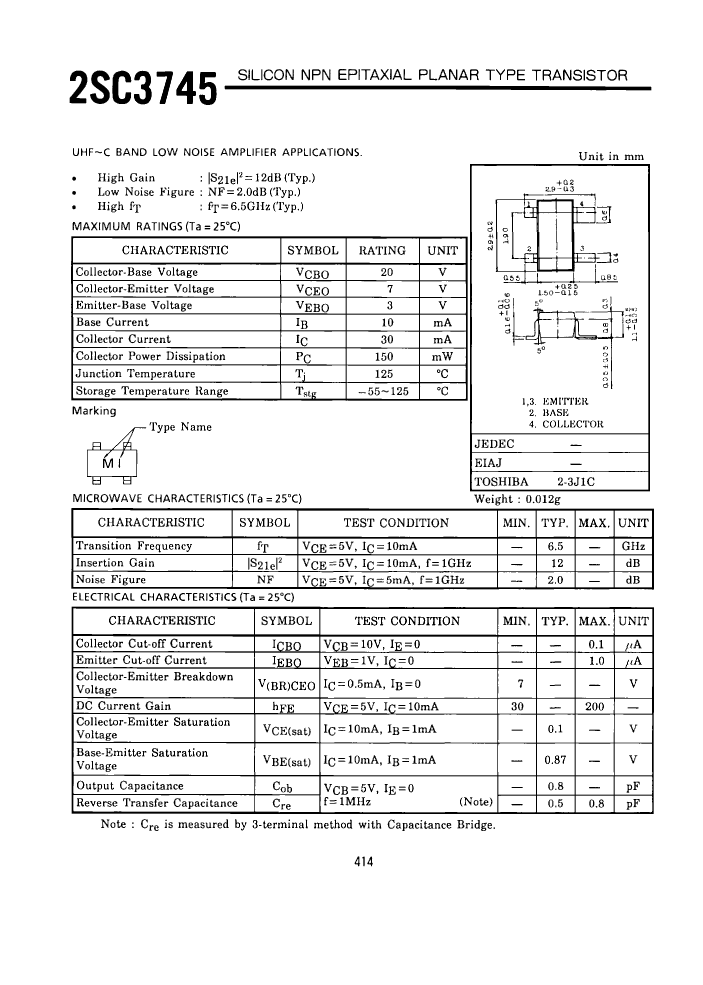

2SC3745TE85L datasheet, PDF - EEWORLD Datasheet

2SC3745TE85L: DescriptionTRANSISTOR C BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal; CategoryDiscrete semiconductor The transistor; File Size109KB，3 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

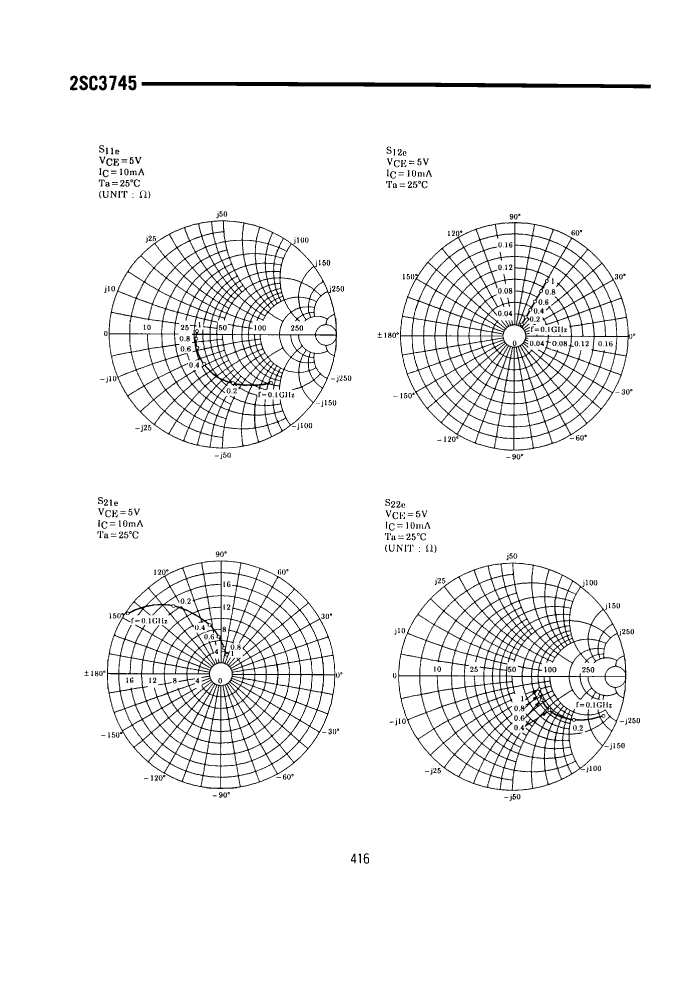

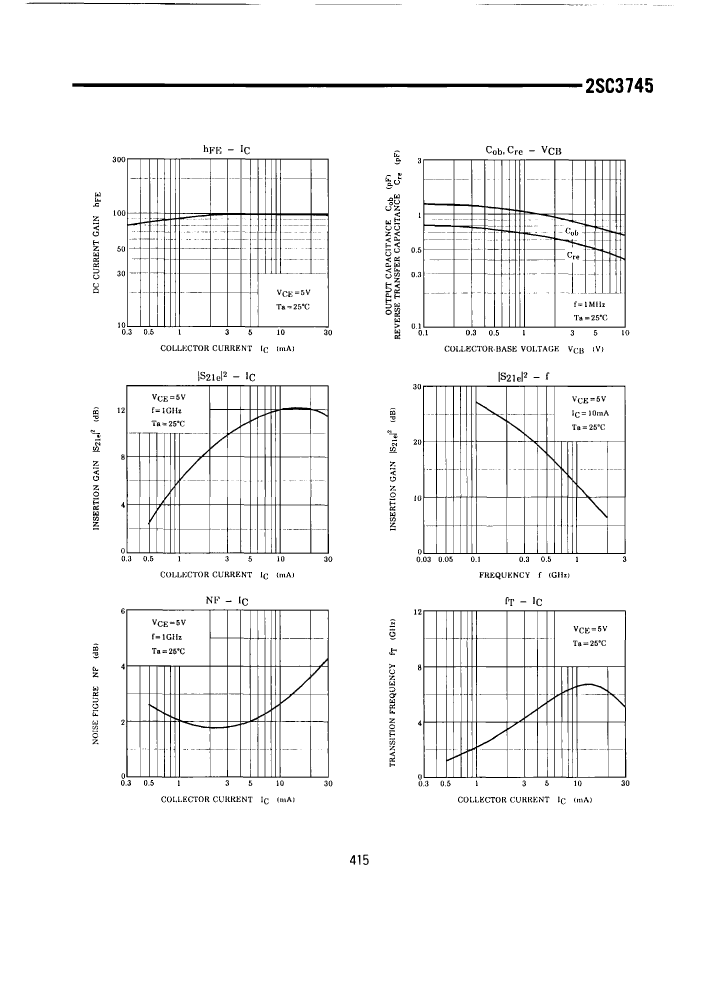

2SC3745TE85L Overview

TRANSISTOR C BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW NOISE
Shell connection	COLLECTOR
Maximum collector current (IC)	0.03 A
Collector-based maximum capacity	0.8 pF
Collector-emitter maximum voltage	7 V
Configuration	SINGLE
Minimum DC current gain (hFE)	30
highest frequency band	C BAND
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	6500 MHz
Base Number Matches	1

	2SC3745TE85L	2SC3745	2SC3745TE85R
Description	TRANSISTOR C BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	TRANSISTOR C BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	TRANSISTOR C BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Other features	LOW NOISE	LOW NOISE	LOW NOISE
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	0.03 A	0.03 A	0.03 A
Collector-based maximum capacity	0.8 pF	0.8 pF	0.8 pF
Collector-emitter maximum voltage	7 V	7 V	7 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	30	30	30
highest frequency band	C BAND	C BAND	C BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1
Number of terminals	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	6500 MHz	6500 MHz	6500 MHz
Base Number Matches	1	1	1
