5646574-4

Description

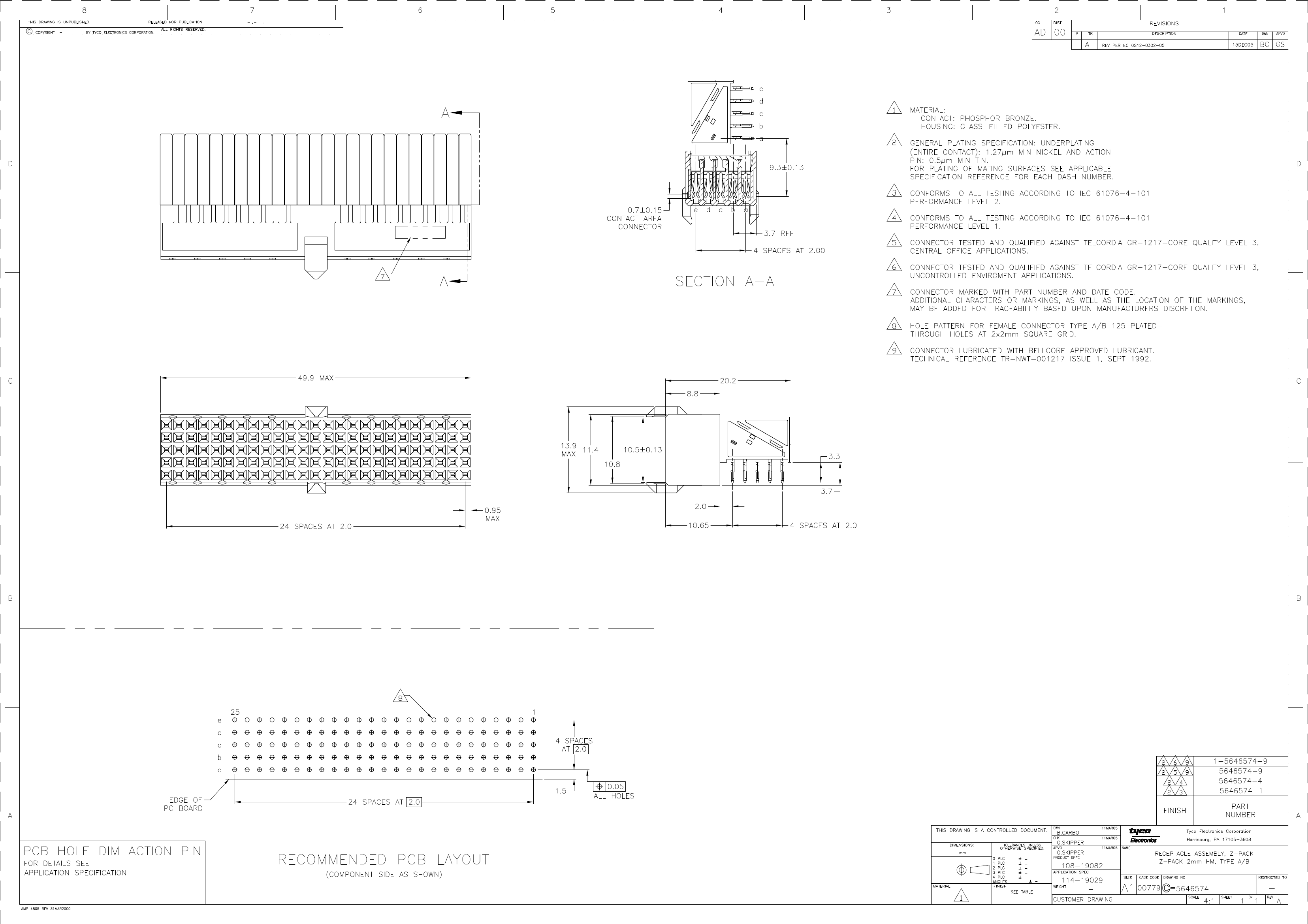

125 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE
CategoryThe connector    The connector
File Size154KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

5646574-4 Overview

125 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE

5646574-4 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.547 inch
subject depth0.795 inch
body length1.967 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN (20) OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Durability250 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.7506 N
Insulation resistance10000000000 Ω
Insulator colorGRAY
insulator materialGLASS FILLED POLYESTER
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number5646574
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number5
Number of rows loaded5
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.13 inch
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts125
Evacuation force-minimum value.139 N

5646574-4 Related Products

5646574-4 1-5646574-9
Description 125 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE 125 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE
Reach Compliance Code unknown unknown
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated TIN (20) OVER NICKEL TIN (20) OVER NICKEL
Contact point gender FEMALE FEMALE
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
JESD-609 code e3 e3
MIL compliance NO NO
Mixed contacts NO NO
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of rows loaded 5 5
Options GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2 mm 2 mm
Termination type PRESS FIT PRESS FIT
Total number of contacts 125 125
