DVFREQ207002AG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> DVFREQ207002AG

DVFREQ207002AG: DescriptionCMOS Output Clock Oscillator, 15MHz Min, 32MHz Max, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size235KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

DVFREQ207002AG Overview

CMOS Output Clock Oscillator, 15MHz Min, 32MHz Max, ROHS COMPLIANT PACKAGE-4

DVFREQ207002AG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Ageing	0.5 PPM/YEAR
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	YES
Frequency offset/pull rate	2 ppm
frequency stability	0.1%
Manufacturer's serial number	DV
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	32 MHz
Minimum operating frequency	15 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Oscillator type	CMOS
Output load	15 pF
physical size	30.0mm x 30.0mm x 10.0mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
surface mount	NO
maximum symmetry	70/30 %

Preview

Download Datasheet

View All

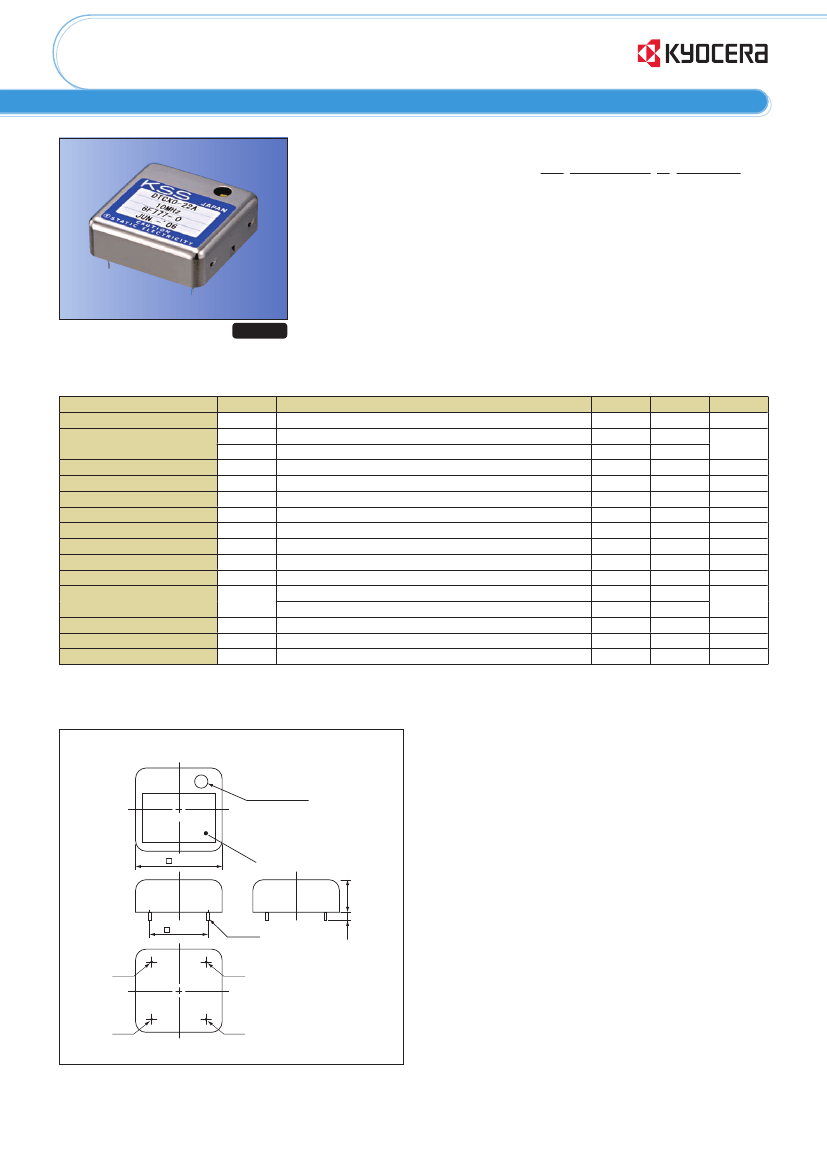

High Precision Crystal Oscillators

Digital TCXO (VC-) DTCXO-22A

Features

• Digital processing temperature

compensated crystal oscillator

• Excellent frequency temperature

characteristics and frequency aging

• CMOS output

How to Order

DO 20.0000000 M 07001AG

①

②

③

④

①

Function

Applications

• Reference Oscillator

• PLL Oscillator

②

Output Frequency

③

Frequency Unit

→

DTCXO, DV

→

VC-DTCXO

→

MHz

④

Individual Speciﬁcation

07001AG

→

DTCXO,

07002AG

→

VC-DTCXO

RoHS Compliant

Speciﬁcations

Item

Output Frequency Range

Frequency Tolerance

Storage Temperature Range

Operating Temperature Range

Supply Voltage

Current Consumption

Frequency Tuning Range

Frequency Aging

Frequency Deviation

Control Voltage

Symmetry

Low Level Output Voltage

High Level Output Voltage

Load

Symbol

fo-T

fo-V

_stg

_use

_tuning

_age

_cont

Conditions

vs Temperature DTCXO-22A/ VC-DTCXO-22A: VC=Open

vs Voltage

Min.

−0.1

−0.05

−40

−35

4.75

—

−0.7

−0.5

−2

0.5

—

4.5

Max.

+0.1

+0.05

+85

5.25

+0.7

+0.5

4.5

0.5

—

Units

MHz

×10

−6

°C

×10

−6

×10

−6

×10

−6

Internal Trimmer

Per Year (at

+25°C)

VC-DTCXO-22A Only

@50% V

1 to 15MHz

Symmetry

@50% V

15 to 32MHz

L-CMOS

Note: All electrical characteristics are defined at the maximum load and operating temperature range.

Dimensions

(Unit: mm)

½½½

½½½½½½½½½

½½½½½½½½½½½½½½½½

½½½½

½½½½½½½½½½½½½½½½½½

½½

½½½½½½½½½½½½½½½½

½½½½½½

½½

½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½

½½½½½½½½

½½½½½½½½½½½

½½

½½½

½½½½½½

½½½

½½

DVFREQ207002AG Related Products

	DVFREQ207002AG	DVFREQ107002AG	DOFREQ107001AG	DOFREQ207001AG	DV20.000000007002AG
Description	CMOS Output Clock Oscillator, 15MHz Min, 32MHz Max, ROHS COMPLIANT PACKAGE-4	TCVCXO, Clock, TCVCXO, CLOCK, 1 MHz - 15 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4	TCXO, Clock, TCXO, CLOCK, 1 MHz - 15 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4	CMOS Output Clock Oscillator, 15MHz Min, 32MHz Max, ROHS COMPLIANT PACKAGE-4	TCVCXO, Clock, TCVCXO, CLOCK, 20 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Ageing	0.5 PPM/YEAR	0.5 PPM/YEAR	0.5 PPM/YEAR	0.5 PPM/YEAR	0.5 PPM/YEAR
Frequency Adjustment - Mechanical	YES	YES	YES	YES	YES
frequency stability	0.1%	0.1%	0.1%	0.1%	0.1%
Manufacturer's serial number	DV	DV	DO	DO	DV
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C	-35 °C	-35 °C	-35 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS
Output load	15 pF	15 pF	15 pF	15 pF	15 pF
physical size	30.0mm x 30.0mm x 10.0mm	30.0mm x 30.0mm x 10.0mm	30.0mm x 30.0mm x 10.0mm	30.0mm x 30.0mm x 10.0mm	30.0mm x 30.0mm x 10.0mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
surface mount	NO	NO	NO	NO	NO
maximum symmetry	70/30 %	55/45 %	55/45 %	70/30 %	70/30 %
Maker	Kyocera	-	-	Kyocera	Kyocera
Maximum control voltage	4.5 V	4.5 V	-	-	4.5 V
Minimum control voltage	0.5 V	0.5 V	-	-	0.5 V
Frequency offset/pull rate	2 ppm	2 ppm	-	-	2 ppm
Maximum operating frequency	32 MHz	15 MHz	15 MHz	32 MHz	-
Minimum operating frequency	15 MHz	1 MHz	1 MHz	15 MHz	-
