299D105X5035AB1E3

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 35 V, 1 uF, THROUGH HOLE MOUNT, RADIAL LEADED-3, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size113KB,7 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

299D105X5035AB1E3 Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 35 V, 1 uF, THROUGH HOLE MOUNT, RADIAL LEADED-3, ROHS COMPLIANT

299D105X5035AB1E3 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instruction, 2819
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance1 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
high9.14 mm
JESD-609 codee3
leakage current0.0005 mA
length7.1 mm
Installation featuresTHROUGH HOLE MOUNT
negative tolerance5%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeDISK PACKAGE
Package formPCB Mount
method of packingBULK
polarityPOLARIZED
positive tolerance5%
Rated (DC) voltage (URdc)35 V
size code2819
surface mountNO
Delta tangent0.04
Terminal surfaceMatte Tin (Sn)
Terminal pitch2.54 mm
Terminal shapeWIRE
width4.82 mm

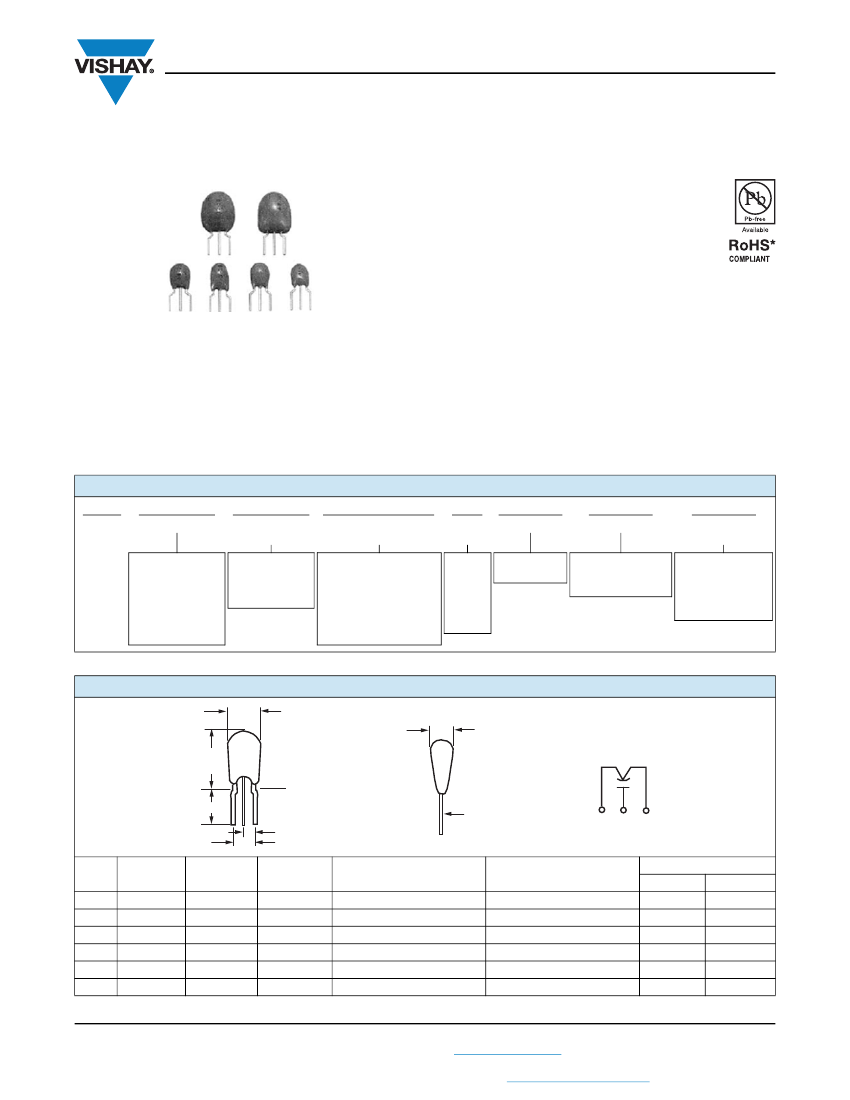

299D
www.vishay.com
Vishay Sprague
Solid-Electrolyte T
ANTALEX®
Capacitors,
Tripole Triple-Lead, Resin-Coated
FEATURES
• Radial through hole terminations: Tin/lead
(SnPb), 100 % tin (Sn)
• Triple-lead design allows reverse installations
• 6 miniature case codes available
• EIA standard case sizes
• Easy installation, economical, high performance
• Compliant to RoHS Directive 2011/65/EU
Note
*
Pb containing terminations are not RoHS compliant, exemptions
may apply
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55 °C to + 85 °C
(to + 125 °C with voltage derating)
Capacitance Range:
0.10 μF to 680 μF
Capacitance Tolerance:
± 20 %, ± 10 % standard
± 5 % available as special
Voltage Rating:
3 V
DC
to 50 V
DC
ORDERING INFORMATION
299D
MODEL
227
CAPACITANCE
This is expressed
in picofarads. The
first two digits are
the significant
figures. The third
is the number of
zeros to follow.
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
*X5 = ± 5 %
* Special order
003
DC VOLTAGE RATING
AT + 85 °C
Expressed in volts.
To complete the 3-digit
block, zeros precede
the voltage rating.
A decimal point is
indicated by an “R”
(6R3 = 6.3 V).
A
CASE
CODE
See
Ratings
and
Case
Codes
table
B
LEAD STYLE
B = Hockey
stick
1
PACKAGING
1 = Bulk
6 = Tape and reel
13" [330 mm] reel
E3
RoHS
COMPLIANT
E3 = 100 %
tin termination
(RoHS compliant)
Blank = SnPb
termination
DIMENSIONS
in inches [millimeters]
D
MAX.
T
MAX.
H
MAX.
Seating
plane
L
S
0.200 [5.08] REF.
Tinned
solderable
leads
-
+
-
CASE
CODE
A
B
C
D
E
F
D (MAX.)
0.280 [7.1]
0.280 [7.1]
0.280 [7.1]
0.280 [7.1]
0.340 [8.63]
0.360 [9.14]
T (MAX.)
0.190 [4.82]
0.200 [5.08]
0.230 [5.84]
0.270 [6.85]
0.340 [8.63]
0.360 [9.14]
H (MAX.)
0.360 [9.14]
0.360 [9.14]
0.380 [9.65]
0.440 [11.17]
0.560 [14.22]
0.620 [15.74]
L
0.187 ± 0.032 [4.75 ± 0.82]
0.187 ± 0.032 [4.75 ± 0.82]
0.187 ± 0.032 [4.75 ± 0.82]
0.187 ± 0.032 [4.75 ± 0.82]
0.187 ± 0.032 [4.75 ± 0.82]
0.187 ± 0.032 [4.75 ± 0.82]
S
0.100 ± 0.015 [2.54 ± 0.38]
0.100 ± 0.015 [2.54 ± 0.38]
0.100 ± 0.015 [2.54 ± 0.38]
0.100 ± 0.015 [2.54 ± 0.38]
0.100 ± 0.015 [2.54 ± 0.38]
0.100 ± 0.015 [2.54 ± 0.38]
LEAD SIZE
AWG NO.
24
24
24
24
24
24
NOM. DIA.
0.020 [0.51]
0.020 [0.51]
0.020 [0.51]
0.020 [0.51]
0.020 [0.51]
0.020 [0.51]
Revision: 07-Mar-12
Document Number: 40044
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
