DJ-021-5PGS datasheet, PDF - EEWORLD Datasheet

DJ-021-5PGS: DescriptionCircular DIN Connector, 5 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric Compare View All

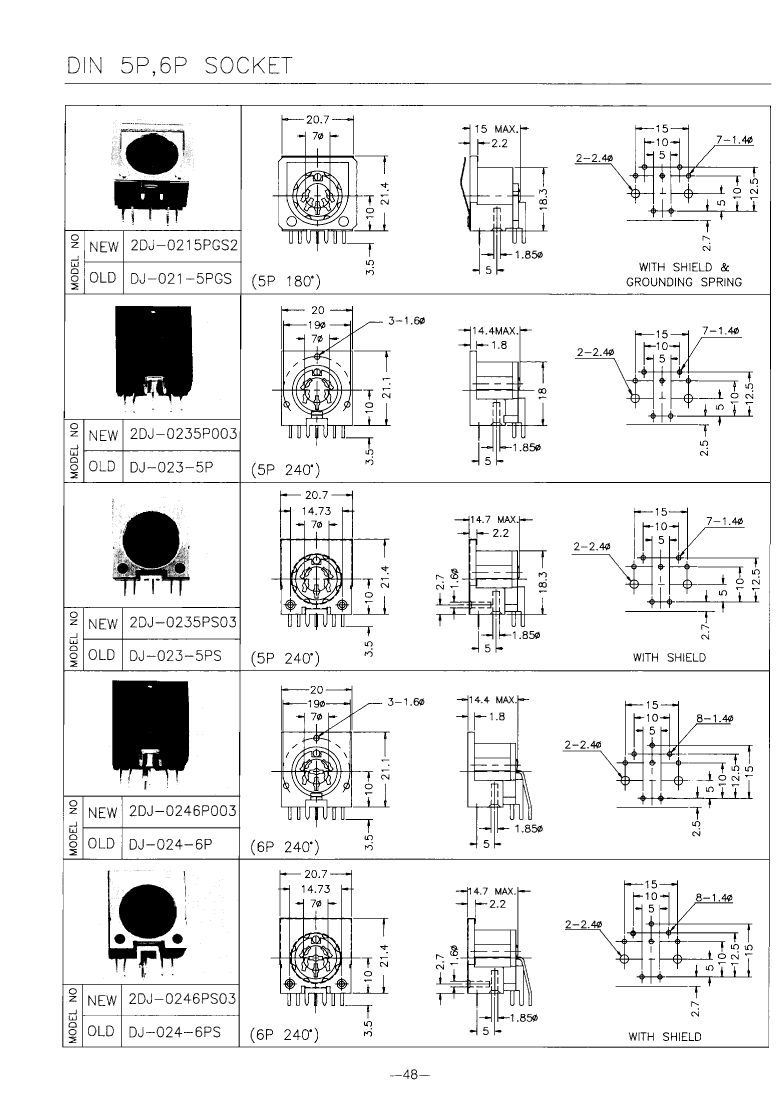

DJ-021-5PGS Overview

Circular DIN Connector, 5 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE
Contact pitch circle diameter	7 mm
DIN compliance	YES
Electromagnetic interference shielding	YES
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	DJ
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	PRINTED WIRING PIN
Total number of contacts	5

	DJ-021-5PGS	DJ-023-5PS	DJ-023-5P	DJ-024-6P	DJ-024-6PS
Description	Circular DIN Connector, 5 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket	Circular DIN Connector, 5 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket	Circular DIN Connector, 5 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket	Circular DIN Connector, 6 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket	Circular DIN Connector, 6 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket
Maker	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact pitch circle diameter	7 mm	7 mm	7 mm	7 mm	7 mm
DIN compliance	YES	YES	YES	YES	YES
Electromagnetic interference shielding	YES	YES	NO	NO	YES
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	DJ	DJ	DJ	DJ	DJ
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN
Total number of contacts	5	5	5	6	6
