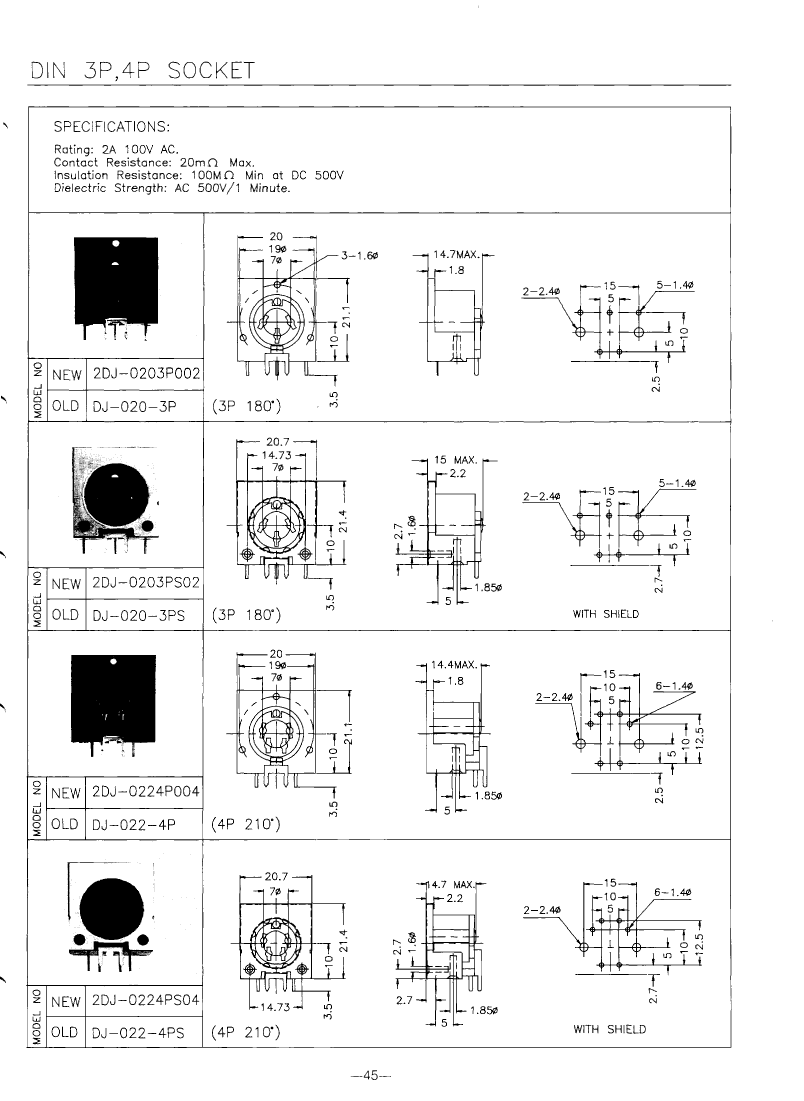

DJ-022-4P: DescriptionCircular DIN Connector, 4 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric Compare View All

DJ-022-4P Overview

Circular DIN Connector, 4 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE
Contact pitch circle diameter	7 mm
DIN compliance	YES
Electromagnetic interference shielding	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	DJ
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	PRINTED WIRING PIN
Total number of contacts	4

	DJ-022-4P	DJ-020-3PS	2DJ-0203PS02	2DJ-0224PS04	DJ-020-3P	DJ-022-4PS
Description	Circular DIN Connector, 4 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket	Circular DIN Connector, 3 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket	Circular DIN Connector	Circular DIN Connector	Circular DIN Connector, 3 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket	Circular DIN Connector, 4 Contact(s), Female, Board Mount, Printed Wiring Pin Terminal, Socket
Reach Compliance Code	unknown	unknown	compliant	compliant	unknown	unknown
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Manufacturer's serial number	DJ	DJ	2DJ-0203	2DJ-0224	DJ	DJ
Body/casing type	SOCKET	SOCKET	-	-	SOCKET	SOCKET
Contact point gender	FEMALE	FEMALE	-	-	FEMALE	FEMALE
Contact pitch circle diameter	7 mm	7 mm	-	-	7 mm	7 mm
DIN compliance	YES	YES	-	-	YES	YES
Electromagnetic interference shielding	NO	YES	-	-	NO	YES
IEC compliance	NO	NO	-	-	NO	NO
MIL compliance	NO	NO	-	-	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	-	-	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	-	-	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	PRINTED WIRING PIN	PRINTED WIRING PIN	-	-	PRINTED WIRING PIN	PRINTED WIRING PIN
Total number of contacts	4	3	-	-	3	4
