PT06SP-14-22S datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> PT06SP-14-22S

Preview

PT06SP-14-22S: DescriptionMIL Series Connector, 5 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

PT06SP-14-22S Overview

MIL Series Connector, 5 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug,

PT06SP-14-22S Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Factory Lead Time	8 weeks
Other features	STANDARD: MIL-C-26482, COMPATIBLE CONTACTS: LP-597820-355; 10-257982-16F, POLARIZATION AVAILABLE
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	14
Termination type	CRIMP
Total number of contacts	5

Preview

Download Datasheet

View All

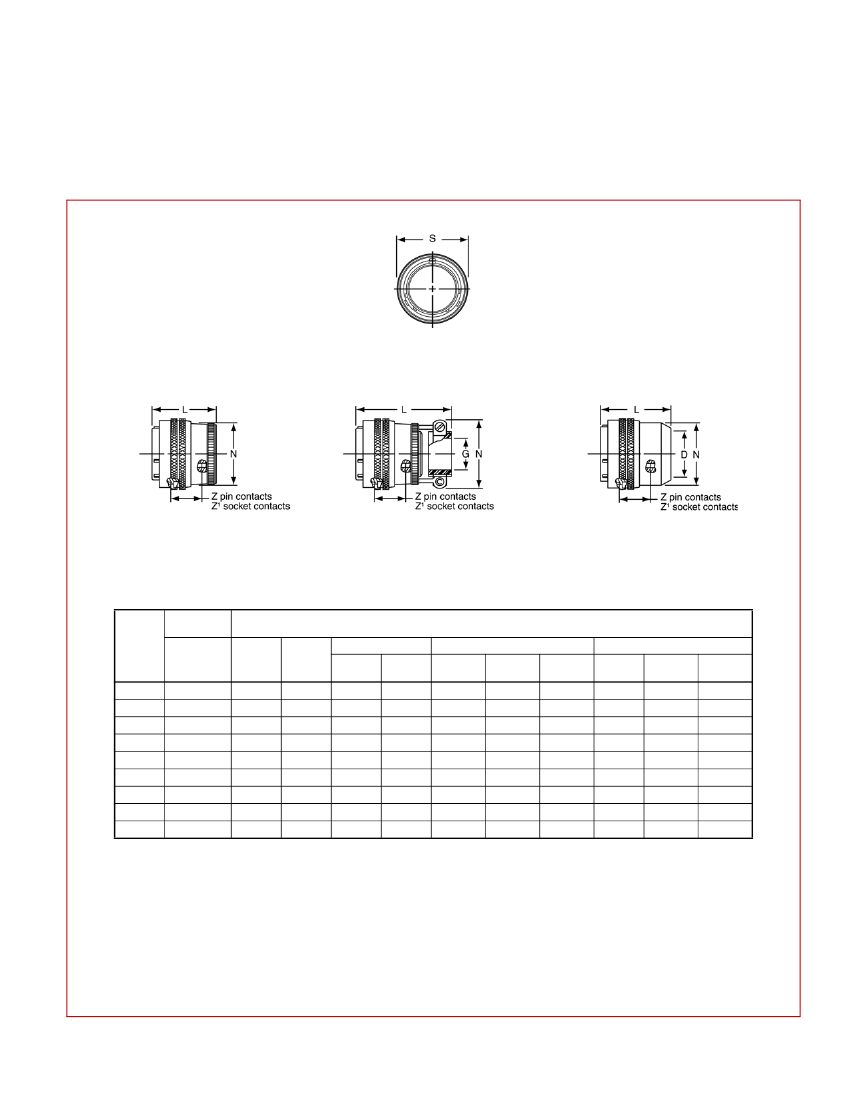

PT06 SE (MS3126)

SP06 SE

straight plug

TERMINATION ASSEMBLIES

“SE”, MS / “E” Open Wire Seal

“SE” (SR), MS / “F” Strain Relief

“SP”, MS / “P” Potting Boot

PT06SE-XX-XXX

SP06SE-XX-XXX

PTG06SE-XX-XXX

MS3126E-XX-XXX

To complete part number see how to order on page 32.

Plug

Front View

PT06SE-XX-XXX (SR)

SP06SE-XX-XXX (SR)

PTG06SE-XX-XXX (SR)

MS3126F-XX-XXX (SR)

PT06SP-XX-XXX

SP06SP-XX-XXX

PTG06SP-XX-XXX

MS3126P-XX-XXX

Plug

Side View

Class “SE”, MS / “E”

Class “SE” (SR), MS / “F”

G

Dia.

L

Max.

N

Max.

Class “SP”, MS / “P”

D

Dia.

L

Max.

N Dia.

Max.

Z

1

±.045

Shell

Size

S Dia.

Max.

Z

±.045

L

Max.

N

Max.

8*

10

12

14

16

18

20

22

24

.734

.859

1.031

1.156

1.281

1.391

1.531

1.656

1.777

.640

.579

1.328

1.297

1.359

.540

.685

.813

.930

1.057

1.175

1.301

1.428

1.533

.125

.188

.312

.375

.500

.625

.750

.800

2.413

2.528

2.753

2.830

.828

.891

1.016

1.141

1.203

1.469

1.656

1.750

.327

.444

.558

.683

.808

.909

1.034

1.159

1.284

1.750

1.766

.578

.734

.858

.984

1.110

1.234

1.360

1.484

1.610

* PT-SE, MS-SE and MS-SP only.

All dimensions for reference only.
