0.4mm Pitch Stacking Type Board to Board Connector
CONNECTOR
MB-0109-3
July 2007
AA03 Series
RoHS Compliant
Receptacle
Outline
Pin

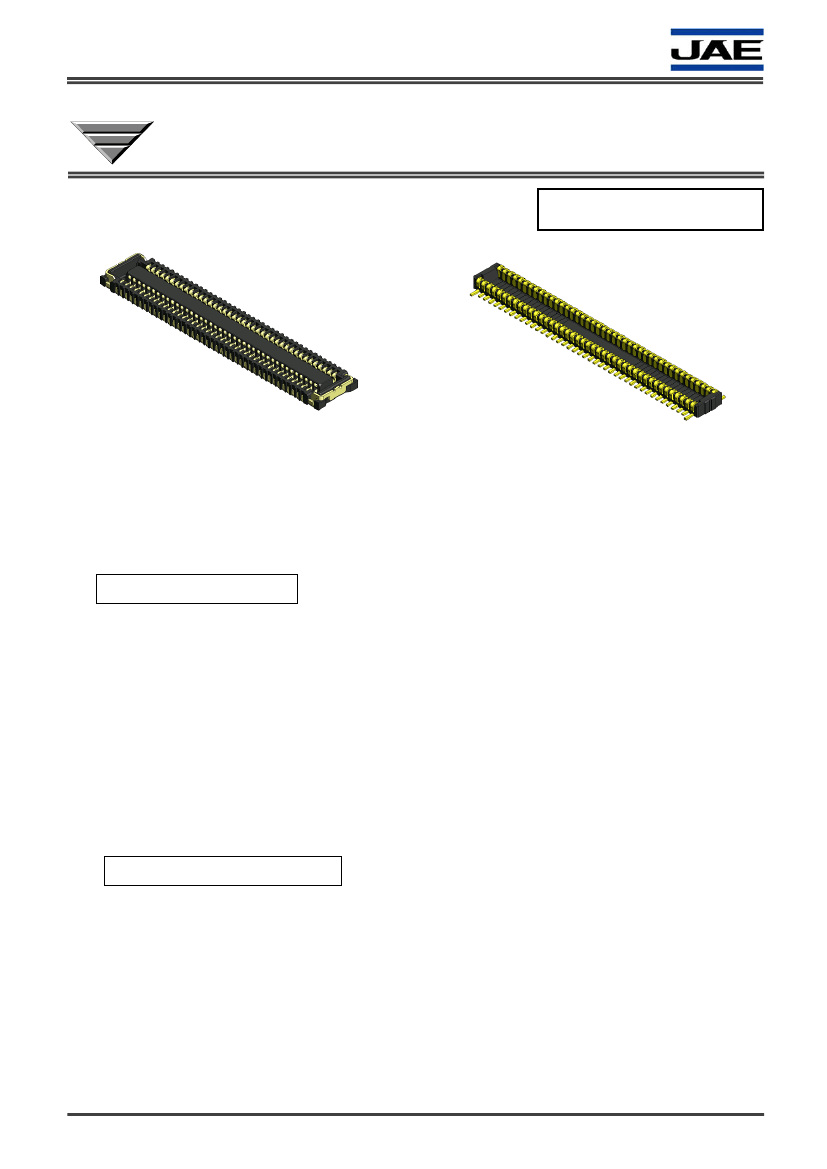

The AA03 Series connectors are 0.4mm-pitch, stacking type, board-to-board
connectors ideal for slim low-profiled information communication devices such as
mobile phones, LCDs and PDAs, with high density mounting requirements.
Features
* 0.4mm pitch; double lines; 20 to 80 positions; stacking height: 1.0mm
* Separate 2-point contact design to resist twisting stress.
* Contact structure with high abrasion resistance and roll contacts with contact
reliability.
* Secure hold-down prevents insulator breakage or lift-off from FPC (receptacle side).
* Nickel barrier on contact of the plug and receptacle prevents solder migration
* Pb-free
* Connectors for inspection jigs are provided for both plug and receptacle (Note 1)
General Specifications
No. of contacts :
20, 22, 24, 30, 36, 40, 50, 64, 70, 80 pos.
Pitch: 0.4mm, 2 rows
Operating temperature:
-45 Deg. C to +85 Deg. C
Contact resistance:
70m ohm max. (initial)
Lifetime: 50 times
Rated current: AC, DC 0.4A/per pos.
Rated voltage: AC, DC 50V
Insulation resistance: 100M ohm min. (initial)
Dielectric withstanding voltage:
AC250Vr.m.s per minute
Total insertion force:
1N x n max.(n: pos.)
Total withdrawal force:
0.15Nx n min. (n: pos.)
(Note 1) Please contact us for connector used for inspection jigs.
JAE PMK Div. Proprietary. Copyright © 2007，Japan Aviation Electronics Industry, Ltd.
1/7
MB-0109-3
Materials and Finishes
Components
Contact
Insulator
Hold-down
Materials/Finishes
Copper alloy/ Au plating( 0.1um min.)
Heat resistant plastic (UL94V-0, Color: Black)
Plug: Copper alloy/ Au plating(0.1 um min.)
Receptacle: Copper alloy/ Sn plating
Ordering Information
AA03 - P
Series
Contact shape
P: Plug side
No. of contacts
***
V
A
*
-R****
Reel product No. (Note 1)
(R6000: Standard product)
(R300: for Inspection jig)
Modify Code
(2: Standard product/
E: for Inspection jig)
Finish A: Au plating
Connection type V: Stacking Type
Ordering Information
AA03 - S
Series
Contact shape
S: Receptacle side
No. of contacts
***
V
A
*
-R****
Reel product No. (Note 1)
(R6000: Standard product)
(R300: for Inspection jig)
Modify Code
(1: Standard product/
E: for Inspection jig)
Finish A: Au plating
Connection type V: Stacking Type
(Note 1) Both standard products (6,000 pcs./reel) and those for inspection jig (300
pcs./reel) are supplied on emboss tape.
For information on emboss taping specifications, please contact us directly.
JAE PMK Div. Proprietary. Copyright © 2007，Japan Aviation Electronics Industry, Ltd.
2/7
MB-0109-3

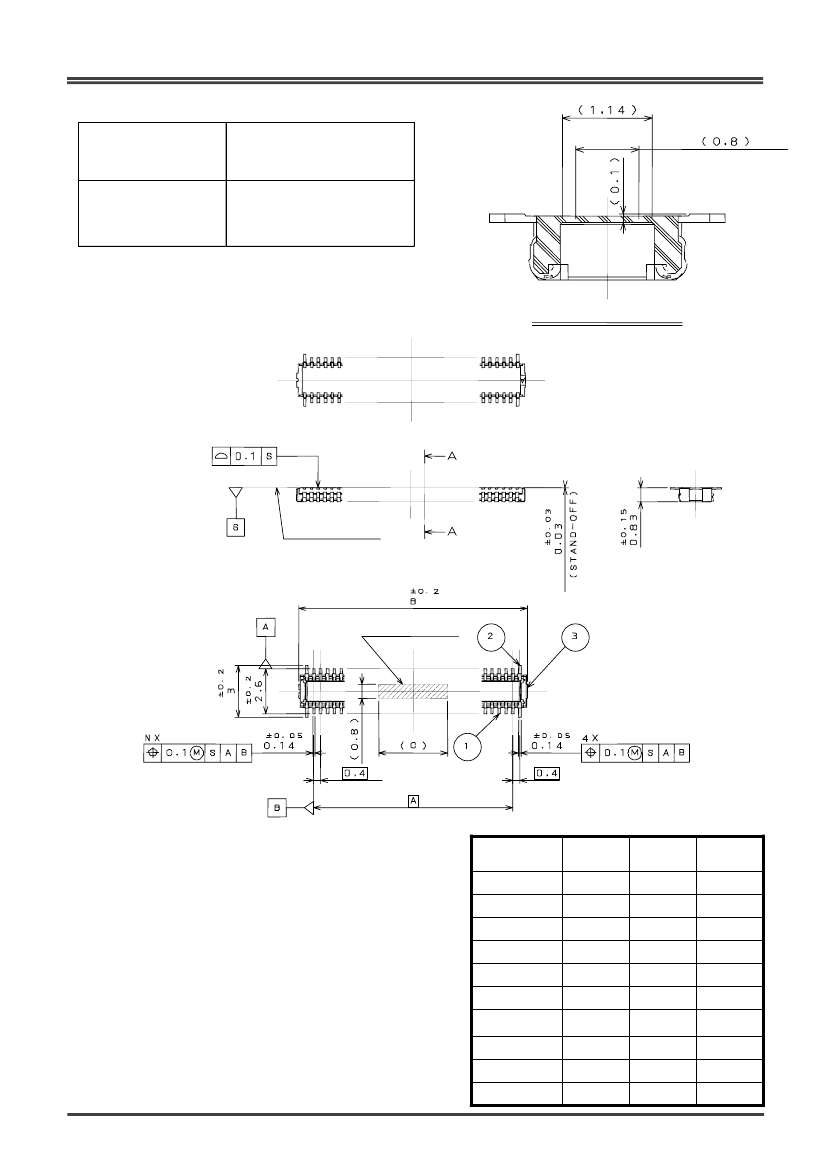

Part Number AA03-P***VA2
SJ Drawing
SJ101604
(
SUCTION
AREA
)
S E C T .
A
½
A
( CONT ACT ,HOLD DOWN)
F L AT S U R F ACE
SUCTION
AREA
( PITCH )
Note 1) Coplanarity 0.1 mm max.
Note 2) An embossed tape reel contains 6000 pieces.
Please contact us for details of embossed tape
specifications
No. of
contacts
20
22
24
30
36
40
50
64
70
80
A
3.6
4.0
4.4
5.6
6.8
7.6
9.6
12.4
13.6
15.6
B
5.3
5.7
6.1
7.3
8.5
9.3
11.3
14.1
15.3
17.3
C
2.0
2.0
2.0
2.0
2.0
2.0
2.0
4.0
4.0
4.0
3/7
JAE PMK Div. Proprietary. Copyright © 2007，Japan Aviation Electronics Industry, Ltd.
MB-0109-3
Part Number AA03-P***VA2
SJ Drawing
SJ101604
( PITCH )
INSULATION
AREA
RECEPTACLE
OUTLINE
Applicable dimension of board
(for reference)
JAE PMK Div. Proprietary. Copyright © 2007，Japan Aviation Electronics Industry, Ltd.
4/7
MB-0109-3

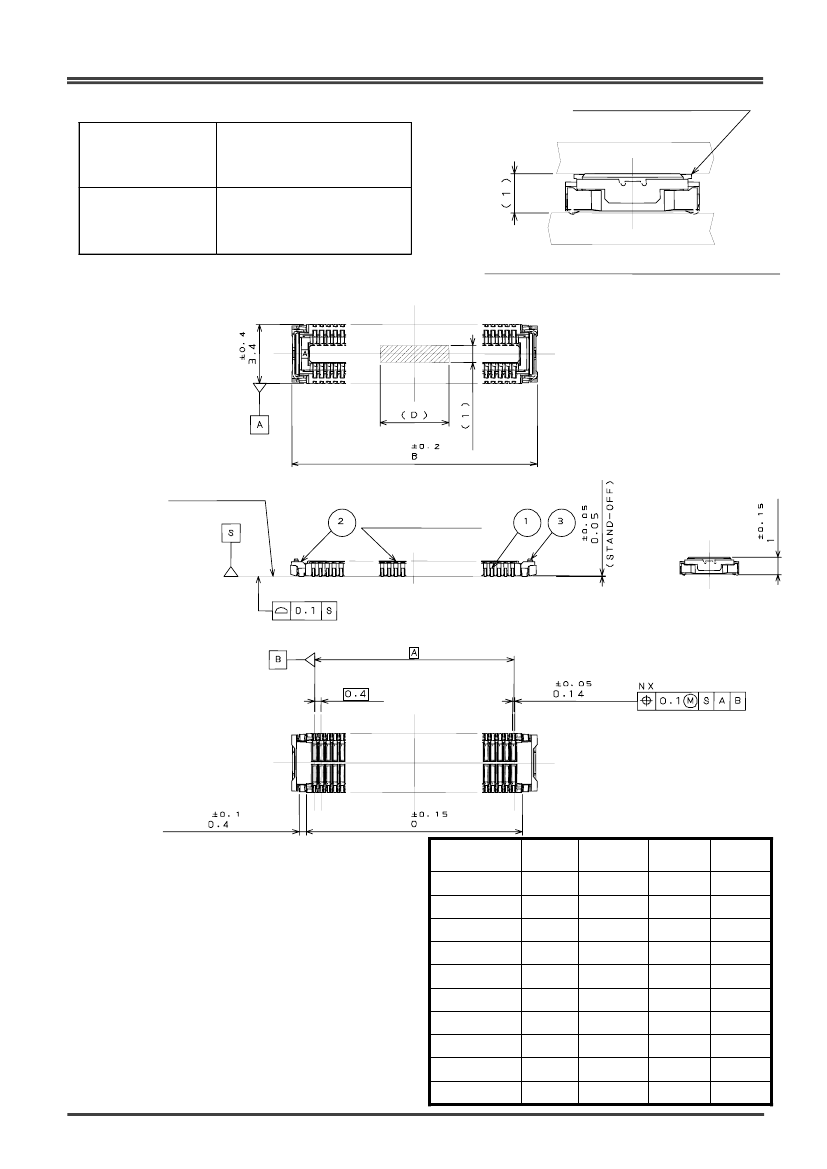

AA03－P＊＊＊VA2（PLUG）
（
SJ101604）
Part
Number
SJ
Drawing
AA03-S***VA1
SJ037492
M A T E D
C O N D I T I O N
( R E F . )
嵌 合 状 態 図（ 参 考 ）
( SUCT ION AR E A )
F L AT
S U RF AC E
SUCTION
SURFACE
（
CO NT AC T , HOLD DOWN
）
（
PITCH
）
( SUCTION
AREA )
( CONT ACT
WIDTH )
(
HOLD
DOWN
WIDTH )
No. of
contacts
20
22
24
30
36
40
50
64
70
80
A
3.6
4.0
4.4
5.6
6.8
7.6
9.6
12.4
13.6
15.6
B
6.3
6.7
7.1
8.3
9.5
10.3
12.3
15.1
16.3
18.3
C
4.6
5.0
5.4
6.6
7.8
8.6
10.6
13.4
14.6
16.6
D
2.0
2.0
2.0
2.0
2.0
2.0
2.0
4.0
4.0
4.0
Note 1) Coplanarity 0.1 mm max.
Note 2) An embossed tape reel contains
6000
pieces.
Please contact us for details of embossed tape
specifications
JAE PMK Div. Proprietary. Copyright © 2007，Japan Aviation Electronics Industry, Ltd.
5/7
