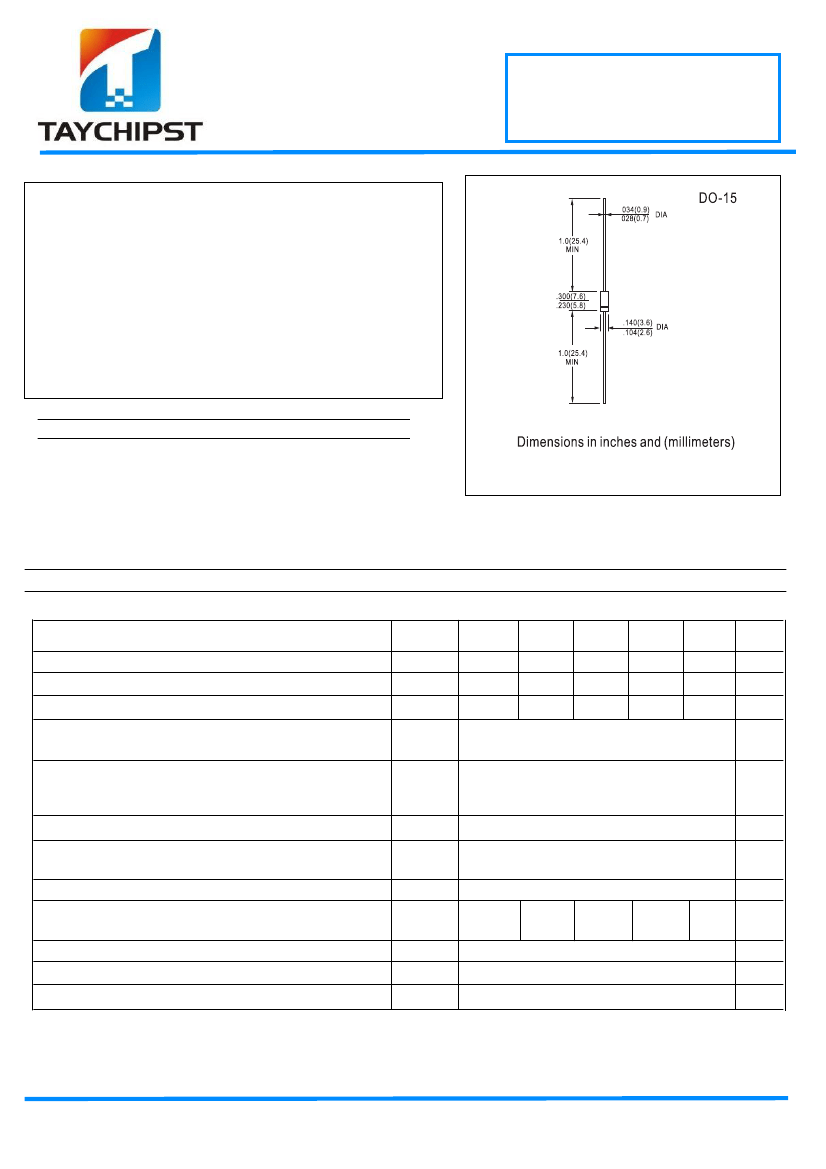

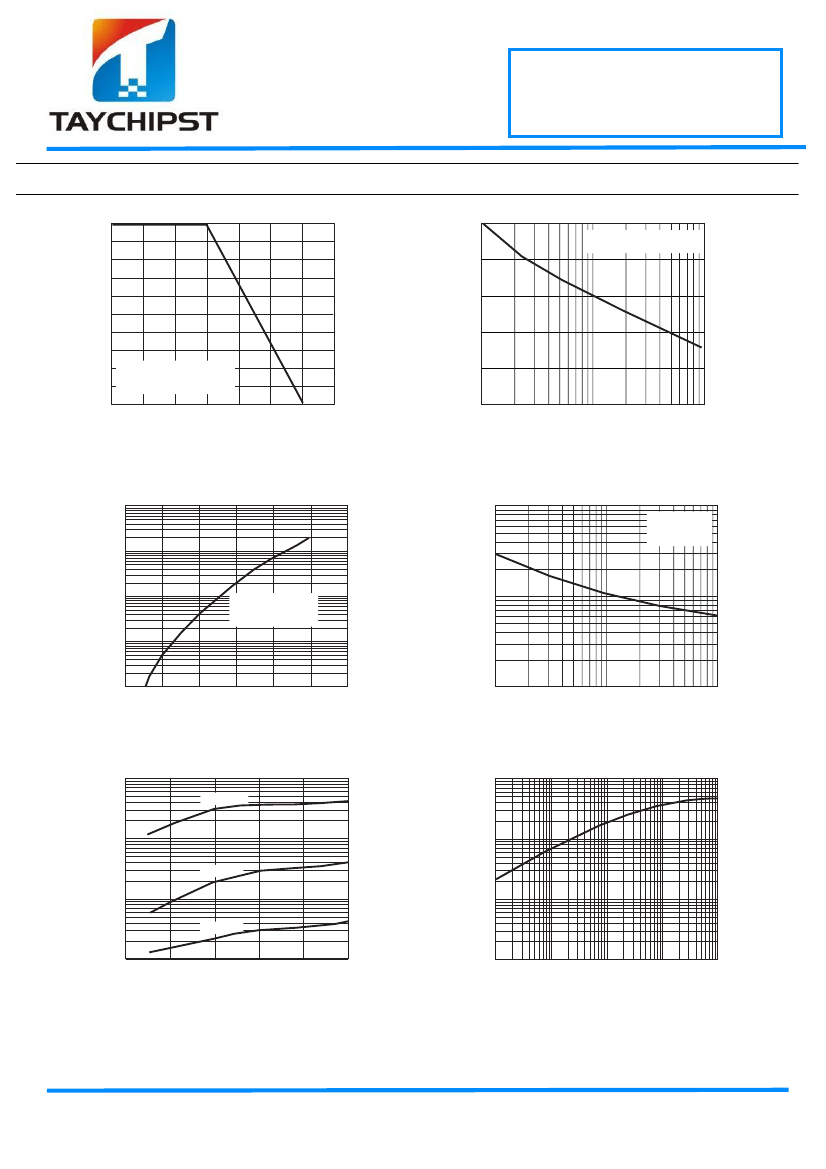

1N4383GP THRU 1N4385GP
1N4585GP THRU 1N4586GP
GLASS PASSIVATED JUNCTION RECTIFIER
200V-1000V
1.0A
FEATURES
• Superectifier
application
structure
for
high
reliability
• Cavity-free glass-passivated junction
• Low forward voltage drop
• Low leakage current
• High forward surge capability
• Meets environmental standard MIL-S-19500
• Solder dip 275 °C max. 10 s, per JESD 22-B106
• AEC-Q101 qualified
• Compliant to RoHS Directive 2002/95/EC
accordance to WEEE 2002/96/EC
and
in
MECHANICAL DATA
Case:
JEDEC DO-204AC molded plastic over glass body
Terminals:
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.015 ounce, 0.4 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
1N
4383GP
1N
4384GP
1N
4385GP
1N
4585GP
1N
4586GP
UNITS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5mm) lead length at T
A
=100°C
Peak forward surge current
8.3ms single half sine-wave superimposed
on rated load (JEDEC Method) at T
A
=100°C
Maximum instantaneous forward voltage at 1.0A
Maximum DC reverse current
at rated DC blocking voltage
(NOTE 1)
V
RRM
V
RMS
V
DC
I
(AV)
200
140
200
400
280
400
600
420
600
1.0
800
560
800
1000
700
1000
Volts
Volts
Volts
Amp
I
FSM
V
F
I
R
t
rr
I
R(AV)
C
J
R
ΘJA
J
, T
STG
50.0
1.0
5.0
250.0
2.0
275
250
225
15.0
45.0
-65 to +175
200
200
Amps
Volts
µA
µs
µA
pF
°C/W
°C
T
A
=25°C
T
A
=150°C
Maximum full load reverse current full cycle
average at 0.375" (9.5mm) lead length at T
A
=100°C
Typical junction capacitance
(NOTE 2)
Typical thermal resistance
(NOTE 3)
NOTES:
(1) Reverse recovery test conditions: I
F
=0.5A, I
R
=1.0A, I
rr
=0.25A
(2) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(3) Thermal resistance from junction to ambient at 0.375" (9.5mm) lead length, P.C.B. mounted
* JEDEC registered values
E-mail: sales@taychipst.com
1 of 2
Web Site: www.taychipst.com
1N4383GP THRU 1N4385GP
1N4585GP THRU 1N4586GP
GLASS PASSIVATED JUNCTION RECTIFIER
200V-1000V
1.0A
ATINGS AND CHARACTERISTIC CURVES
1.0
1N4383GP THRU 1N4385GP 1N4585GP,1N4586GP
50
Average Forward Rectified Current (A)
Peak Forward
Surge
Current (A)
T
A
= 100 °C
8.3 ms
Single
Half
Sine-Wave
40
0.8
0.6
30
0.4
20
0.2
60 Hz
Resistive or Inductive Load
0.375" (9.5 mm) Lead Length
25
50
75
100
125
150
175
200
10
0
0
1
10
100
Ambient Temperature (°C)
Number of Cycles at 60 Hz
Fig. 1 - Forward Current Derating Curve
Fig. 2 - Maximum Non-repetitive Peak Forward Surge Current
100
100
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
Instantaneous Forward Current (A)
10
1
Junction Capacitance (pF)
T
J
= 25 °C
Pulse Width = 300 μs
1 % Duty Cycle
10
0.1
0.01
0.4
1
0.6
0.8
1.0
1.2
1.4
1.6
1
10
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 5 - Typical Junction Capacitance
10
100
T
J
= 125 °C
Transient Thermal Impedance (°C/W)
Instantaneous Reverse Leakage
Current (μA)
1
10
T
J
= 75 °C
0.1
T
J
= 25 °C
1
0.01
0
20
40
60
80
100
0.1
0.01
0.1
1
10
100
Percent of Rated Peak Reverse Voltage (%)
t - Pulse Duration (s)
Fig. 4 - Typical Reverse Characteristics
Fig. 6 - Typical Transient Thermal Impedance
E-mail: sales@taychipst.com
2 of 2
Web Site: www.taychipst.com
