AN8780SB Overview

4Ch. Linear Driver IC for CD/CD-ROM

AN8780SB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	HSSOP,
Contacts	28
Reach Compliance Code	unknow
ECCN code	EAR99
Interface integrated circuit type	HALF BRIDGE BASED PERIPHERAL DRIVER
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	18.4 mm
Number of functions	1
Number of terminals	28
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	3.2 mm
surface mount	YES
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ICs for CD/CD-ROM Player

AN8780SB

(Under development)

4Ch. Linear Driver IC for CD/CD-ROM

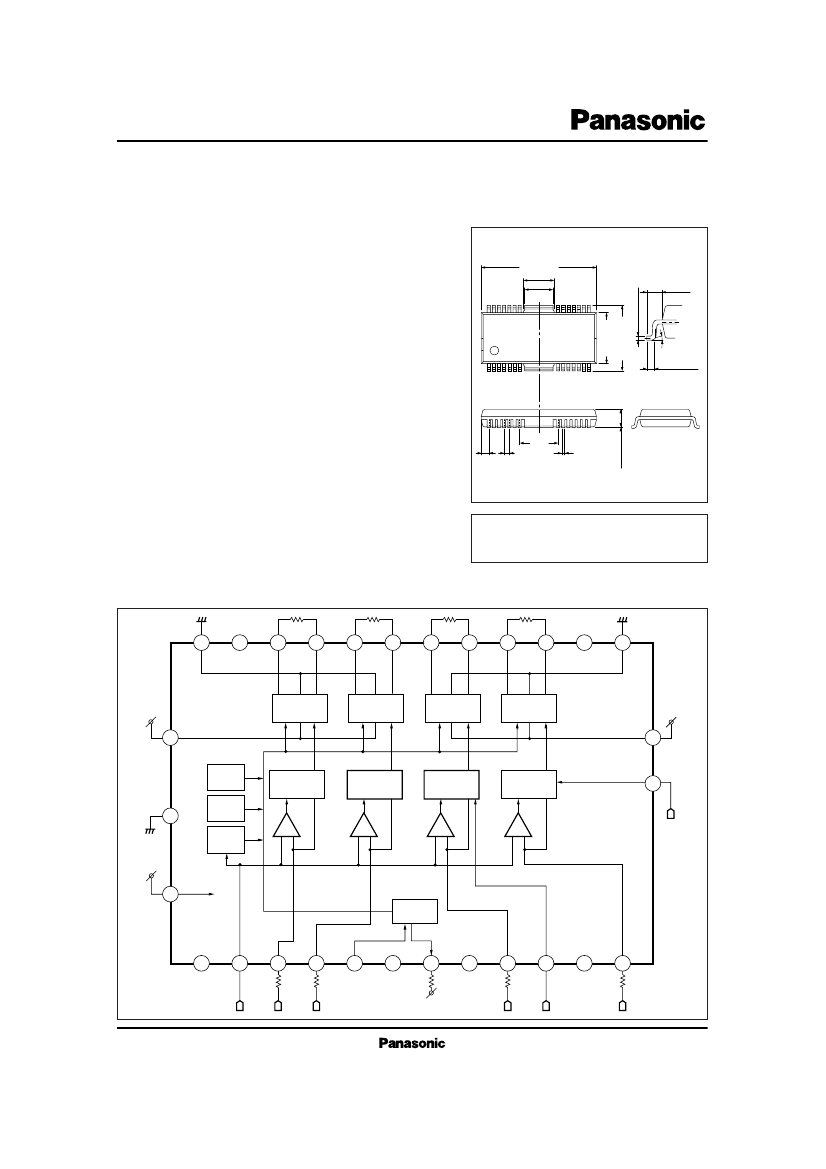

Overview

The AN8780SB employs 4ch. H-bridge system that is

suitable for driver or actuator of CD player. Also it

employs the surface mounting type package superior in

radiation characteristics.

+0.10

– 0.05

Unit : mm

18.4±0.20

(5.15)

(4.8)

8.3±0.20

(1.315)

Features

•

Wide output

10.93±0.30

0.30

D-range is available regardless of refer-

ence voltage on the system

•

4 ch. BTL Driver built-in. Particularly suitable for driver

of actuator or motor of 5 to 20Ω load.

•

2 ch. independently controllable PC (Power Cut) fea-

ture, and 4 ch. simultaneously controllable PC feature

built-in.

•

Thermal shut down circuit (with hysteresis) built-in.

•

Control for proper heat of IC by separating the power

supplies for signal line and output line.

•

Provided with reset output pin.

•

Shot brake mode.

CD player, CD-ROM, for drive of motor

0 ~ 10˚

0.65±0.20

(6.4)

(1.2)

0.8

+0.10

0.35

– 0.05

28 pin, fin attached SOP package (HSOP042-P-0400)

Application

The AN8780SB is under development, so

these described contents may be revised

without prior notice.

Block Diagram

PGND2

D4+

D4–

D3+

D3–

D2+

D2–

D1+

D1–

NC PGND1

BTL Linear

Driver

Ch.4

CC2

Ch.4

Thermal

Protect

Monitor

REF

Monitor

+ –

Absolute

–

Direction

Det.

BTL Linear

Driver

Ch.3

BTL Linear

Driver

Ch.2

BTL Linear

Driver

Ch.1

CC1

Ch.3

Absolute

–

Direction

Det.

Ch.2

Absolute

–

Direction

Det.

Ch.1

Absolute

–

Direction

Det.

0.10±0.10

2.7±0.30

PC1

FIN

+ –

RESET

REF

IN4

IN3

RESET

OUT NC

IN2

PC2

IN1

Recommended Resources

Color TV infrared remote control receiving circuit

A soft starter drives the control circuit c of three electric motors
