FSA2156 — Low-Voltage SPST 0.4Ω Analog Switch
March 2011

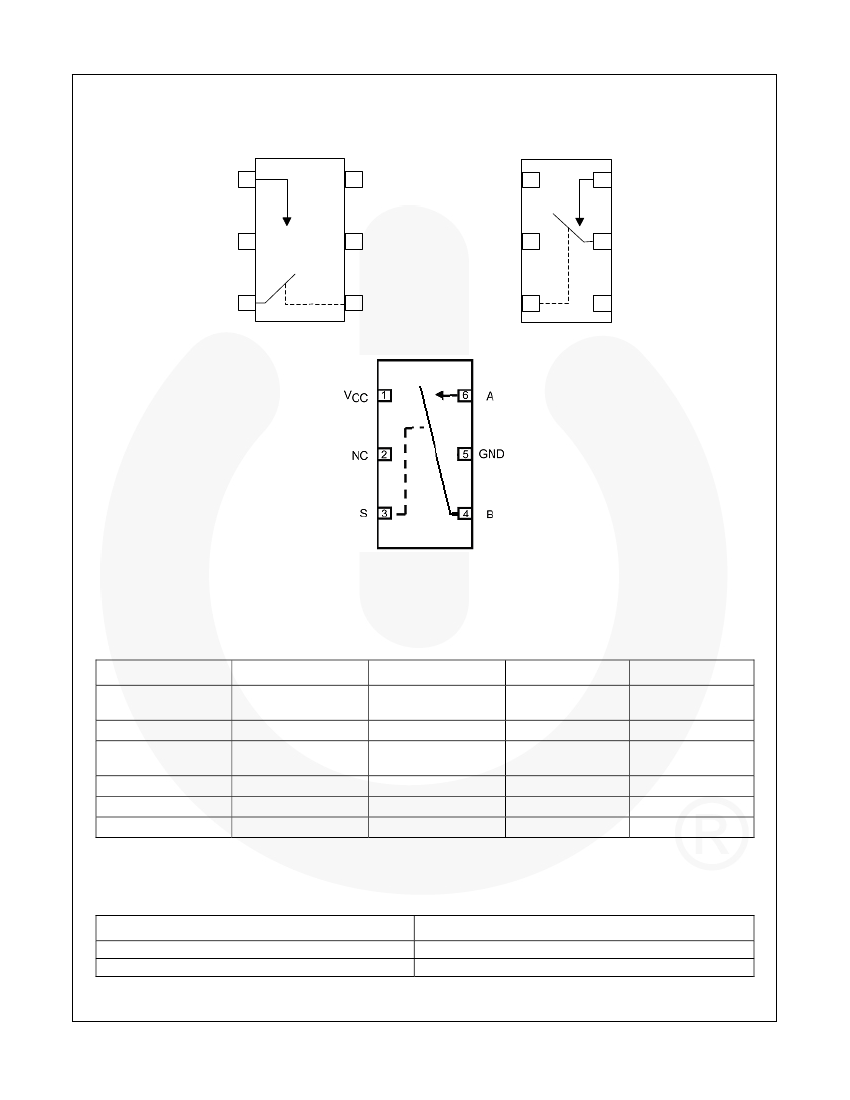

FSA2156
Low-Voltage SPST 0.4Ω Analog Switch
Features
Maximum 0.7Ω On Resistance (R
ON
) for
+2.7V Supply
Description
The FSA2156 is a high-performance Single-Pole Single-
Throw (SPST) analog switch that features ultra low R
ON
of 0.4 (typical) at 2.7V V
CC
. The FSA2156 operates
over the wide V
CC
range of 1.65V to 4.3V and is
fabricated with sub-micron CMOS technology to achieve
fast switching speeds. The select input is TTL-level
compatible.
FSA2156 features very low quiescent current even when
the control voltage is lower than the V
CC
supply. This
feature facilitates longer battery life in mobile handset
applications and allows for the direct interface with
baseband-processor, general-purpose I/Os.
0.25Ω Maximum R
ON
Flatness for +2.7V Supply
Space-Saving MicroPak™ and SC70 Packaging
Broad V
CC
Operating Range: 1.65 to 4.3V
Fast Turn-on and Turn-off Times
Over-Voltage Tolerant TTL-Compatible Control Input
