LD10GA300MAB1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LD10GA300MAB1A

LD10GA300MAB1A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 2000V, 20% +Tol, 20% -Tol, C0G, 30ppm/Cel TC, 0.00003uF, Surface Mount, 1210, CHIP; CategoryPassive components capacitor; File Size123KB，4 Pages; ManufacturerAVX

Download Datasheet Parametric View All

LD10GA300MAB1A Overview

Ceramic Capacitor, Multilayer, Ceramic, 2000V, 20% +Tol, 20% -Tol, C0G, 30ppm/Cel TC, 0.00003uF, Surface Mount, 1210, CHIP

LD10GA300MAB1A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	AVX
package instruction	, 1210
Reach Compliance Code	not_compliant
ECCN code	EAR99
capacitance	0.00003 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.7 mm
JESD-609 code	e0
length	3.2 mm
Manufacturer's serial number	LD10
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	2000 V
series	LD(HIGH VOLTAGE)
size code	1210
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	2.5 mm

Preview

Download Datasheet

View All

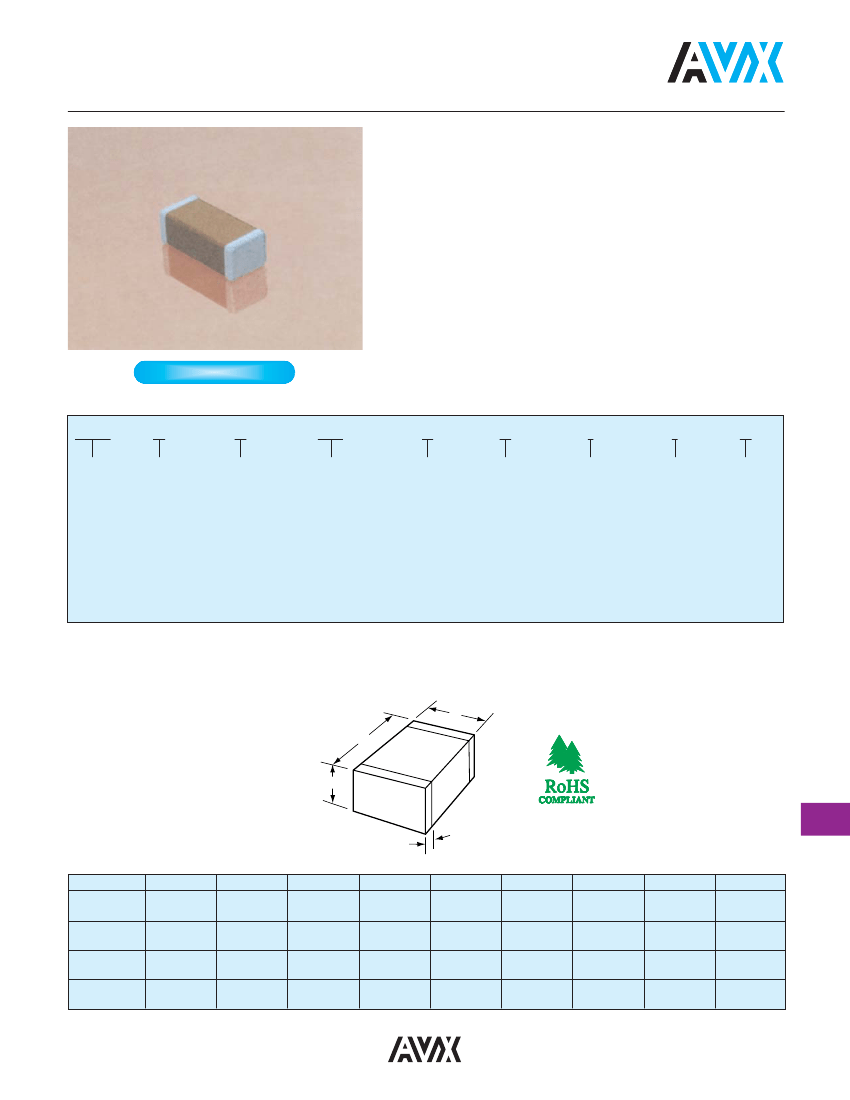

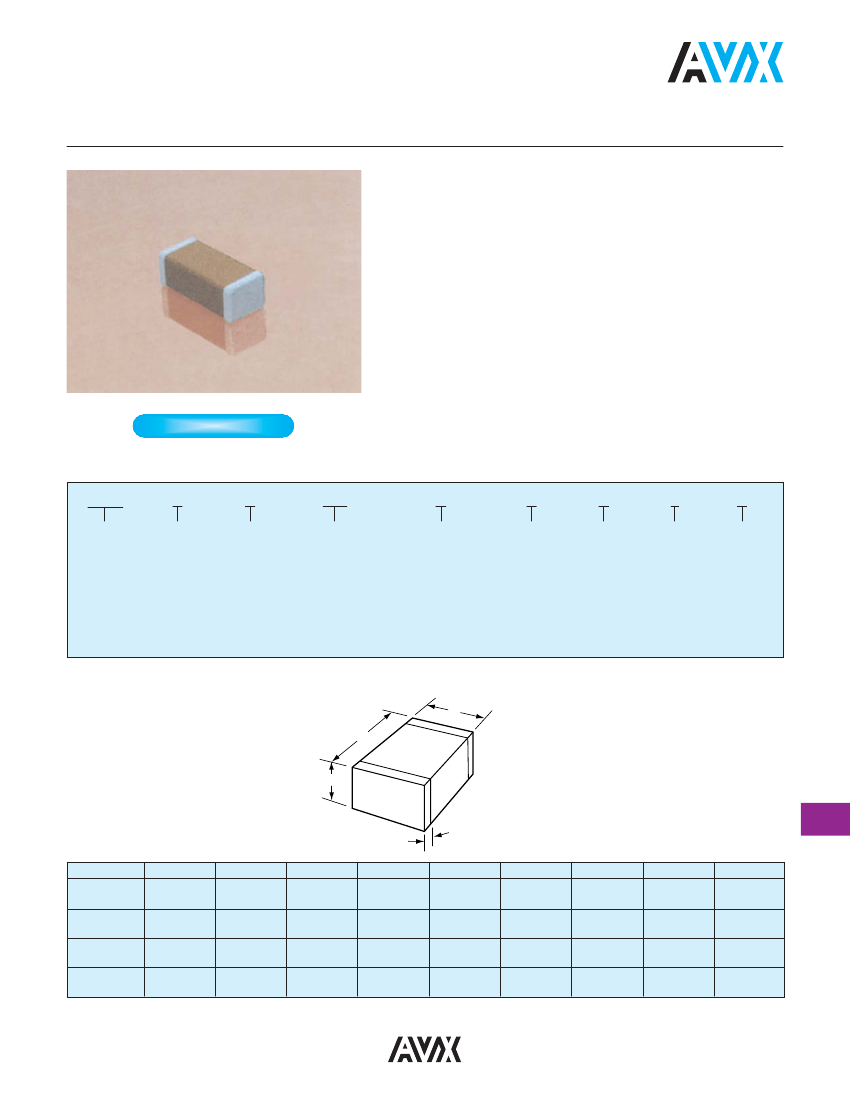

High Voltage MLC Chips

For 600V to 5000V Application

High value, low leakage and small size are difficult parameters to obtain

in capacitors for high voltage systems. AVX special high voltage MLC

chip capacitors meet these performance characteristics and are

designed for applications such as snubbers in high frequency power

converters, resonators in SMPS, and high voltage coupling/dc blocking.

These high voltage chip designs exhibit low ESRs at high frequencies.

Larger physical sizes than normally encountered chips are used to make

high voltage MLC chip products. Special precautions must be taken in

applying these chips in surface mount assemblies. The temperature

gradient during heating or cooling cycles should not exceed 4ºC per

second. The preheat temperature must be within 50ºC of the peak tem-

perature reached by the ceramic bodies through the soldering process.

Chip sizes 1210 and larger should be reflow soldered only. Capacitors

may require protective surface coating to prevent external arcing.

NEW 630V RANGE

HOW TO ORDER

1808

AVX

Style

0805

1206

1210

1808

1812

1825

2220

2225

3640

271

Voltage

Temperature Capacitance Code Capacitance

Test Level

Termination*

Packaging

Special

600V/630V = C

Coefficient

(2 significant digits

Tolerance

A = Standard 1 = Pd/Ag

1 = 7" Reel

Code

1000V = A

C0G = A

+ no. of zeros)

C0G:J = ±5%

T = Plated

3 = 13" Reel A = Standard

1500V = S

X7R = C

Examples:

K = ±10%

Ni and Sn

9 = Bulk

(RoHS Compliant)

2000V = G

10 pF = 100

M = ±20%

2500V = W

100 pF = 101 X7R: K = ±10%

3000V = H

1,000 pF = 102

M = ±20%

4000V = J

22,000 pF = 223

Z = +80%,

5000V = K

220,000 pF = 224

-20%

1 µF = 105

*Note:

Terminations with 5% minimum lead (Pb) is available, see pages 69 and 70 for LD style.

Notes: Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations.

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

DIMENSIONS

SIZE

(L) Length

millimeters (inches)

0805

1206

1210*

1808*

1812*

1825*

2220*

2225*

3640*

2.01 ± 0.20

3.20 ± 0.20

4.57 ± 0.25

4.50 ± 0.30

5.70 ± 0.40

5.72 ± 0.25

9.14 ± 0.25

(0.079 ± 0.008) (0.126 ± 0.008) (0.126 ± 0.008) (0.180 ± 0.010) (0.177 ± 0.012) (0.177 ± 0.012) (0.224 ± 0.016) (0.225 ± 0.010) (0.360 ± 0.010)

(W) Width

1.25 ± 0.20

1.60 ± 0.20

2.50 ± 0.20

2.03 ± 0.25

3.20 ± 0.20

6.40 ± 0.30

5.00 ± 0.40

6.35 ± 0.25

10.2 ± 0.25

(0.049 ±0.008) (0.063 ± 0.008) (0.098 ± 0.008) (0.080 ± 0.010) (0.126 ± 0.008) (0.252 ± 0.012) (0.197 ± 0.016) (0.250 ± 0.010) (0.400 ± 0.010)

(T) Thickness

1.30

1.52

1.70

2.03

2.54

3.30

2.54

Max.

(0.051)

(0.060)

(0.067)

(0.080)

(0.100)

(0.130)

(0.100)

(t) terminal min. 0.50 ± 0.25

0.25 (0.010)

0.76 (0.030)

max. (0.020 ± 0.010) 0.75 (0.030)

0.75 (0.030)

1.02 (0.040)

1.52 (0.060)

*Reflow Soldering Only
