QS52806SO datasheet, PDF - EEWORLD Datasheet

QS52806SO: DescriptionLow Skew Clock Driver, QS5 Series, 0 True Output(s), 5 Inverted Output(s), CMOS, PDSO20, SOIC-20; Categorylogic logic; File Size133KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

QS52806SO Overview

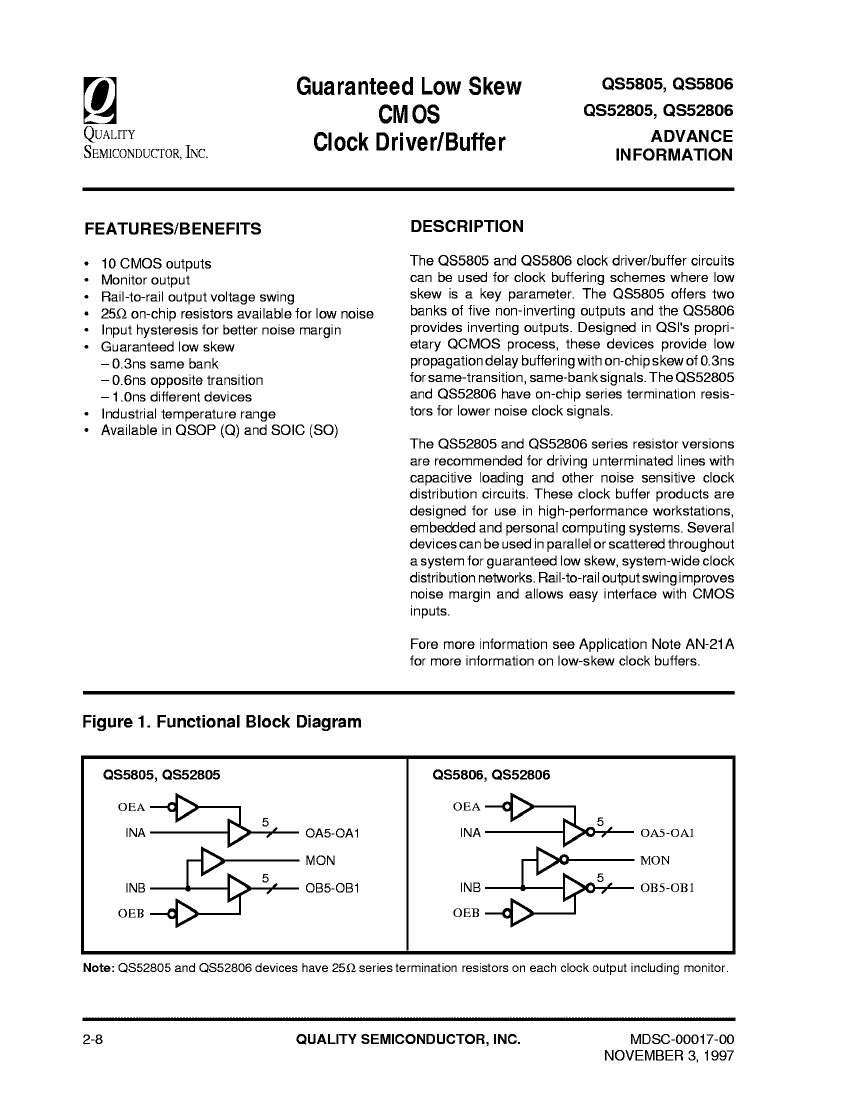

Low Skew Clock Driver, QS5 Series, 0 True Output(s), 5 Inverted Output(s), CMOS, PDSO20, SOIC-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	SOIC
Contacts	20
Reach Compliance Code	not_compliant

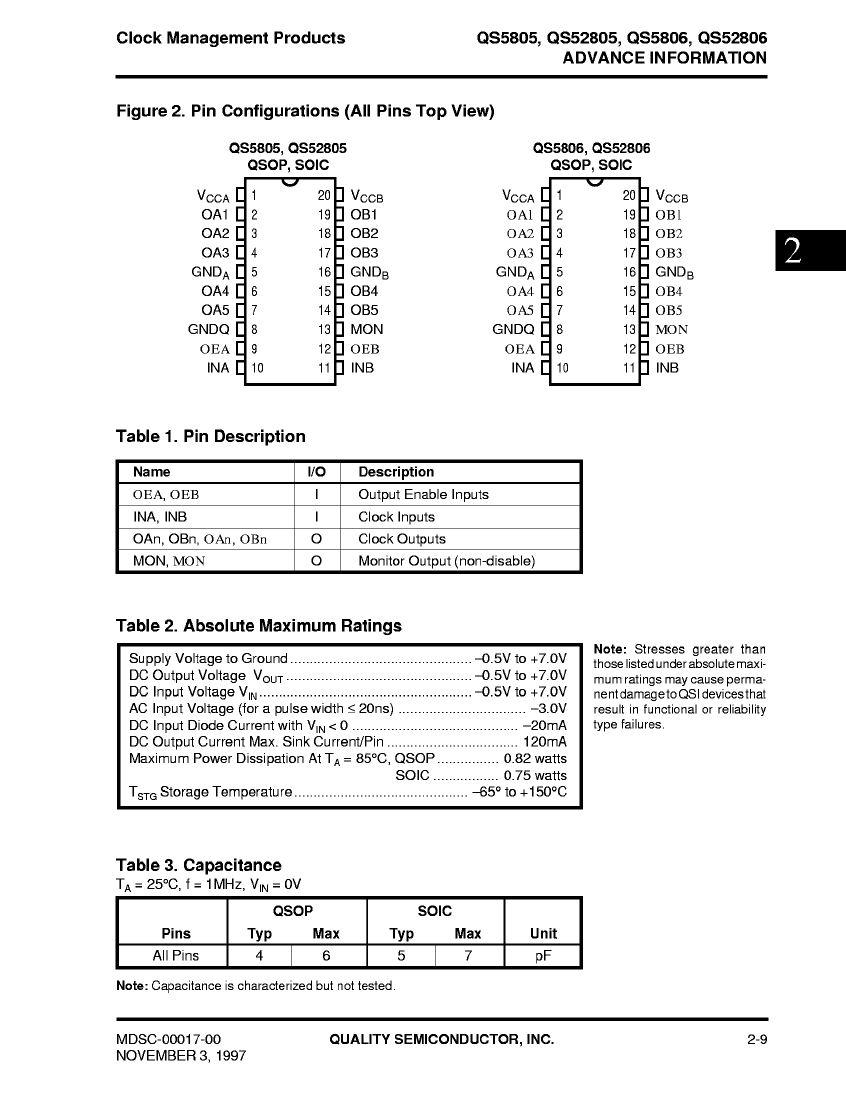

series	QS5
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
Logic integrated circuit type	LOW SKEW CLOCK DRIVER

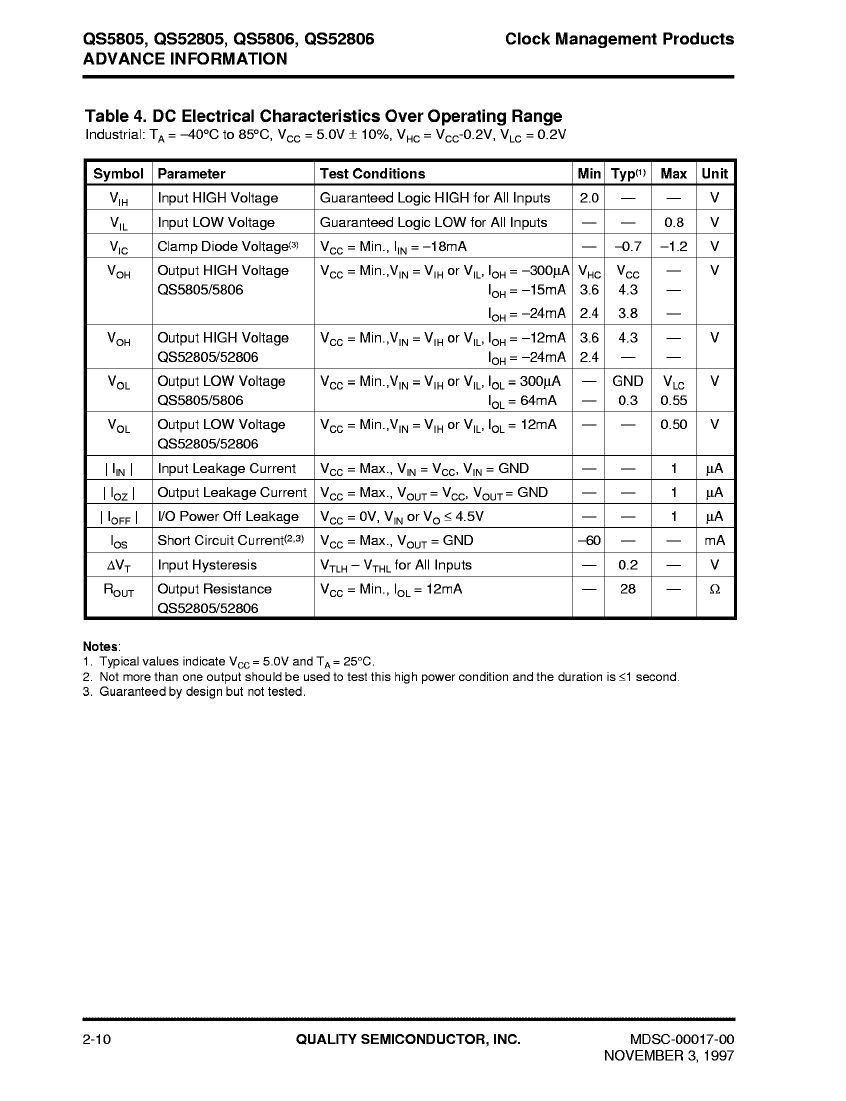

MaximumI(ol)	0.012 A
Number of functions	2
Number of inverted outputs	5
Number of terminals	20
Actual output times
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	SERIES-RESISTOR
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE

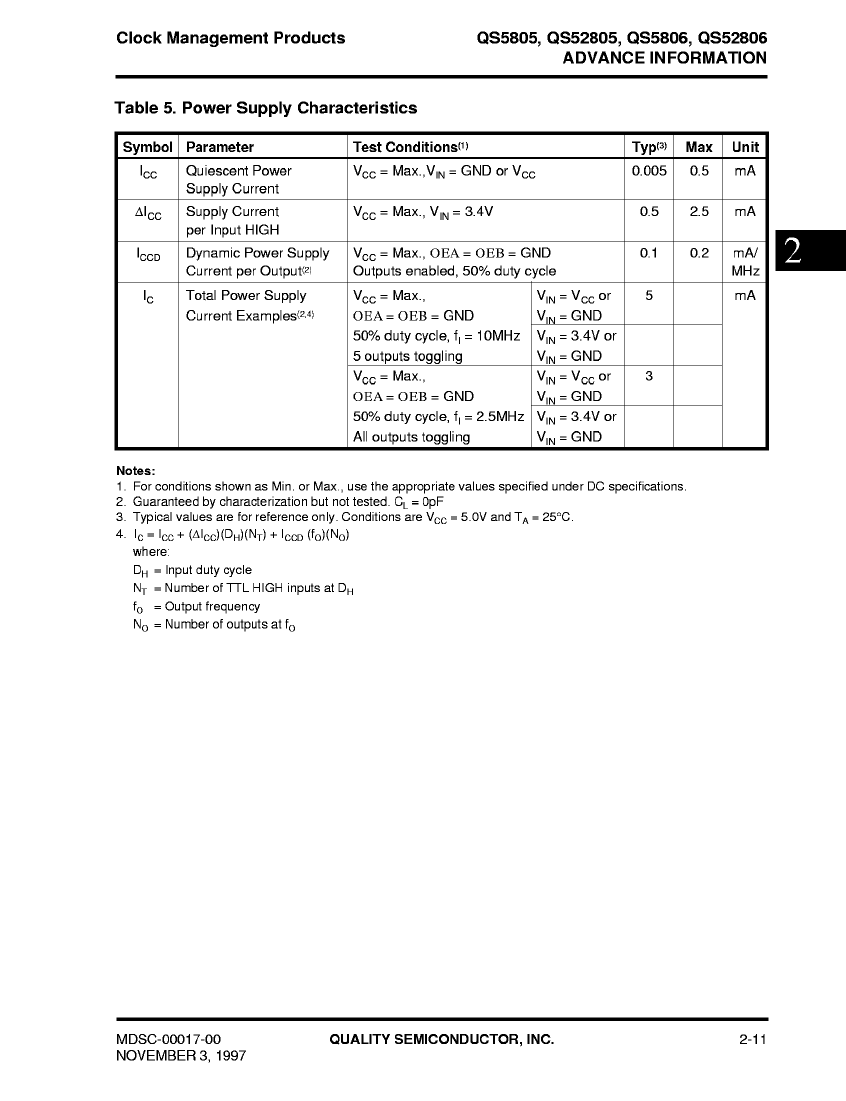

power supply	5 V
Prop。Delay @ Nom-Sup	5.6 ns
propagation delay (tpd)	5.6 ns
Certification status	Not Qualified

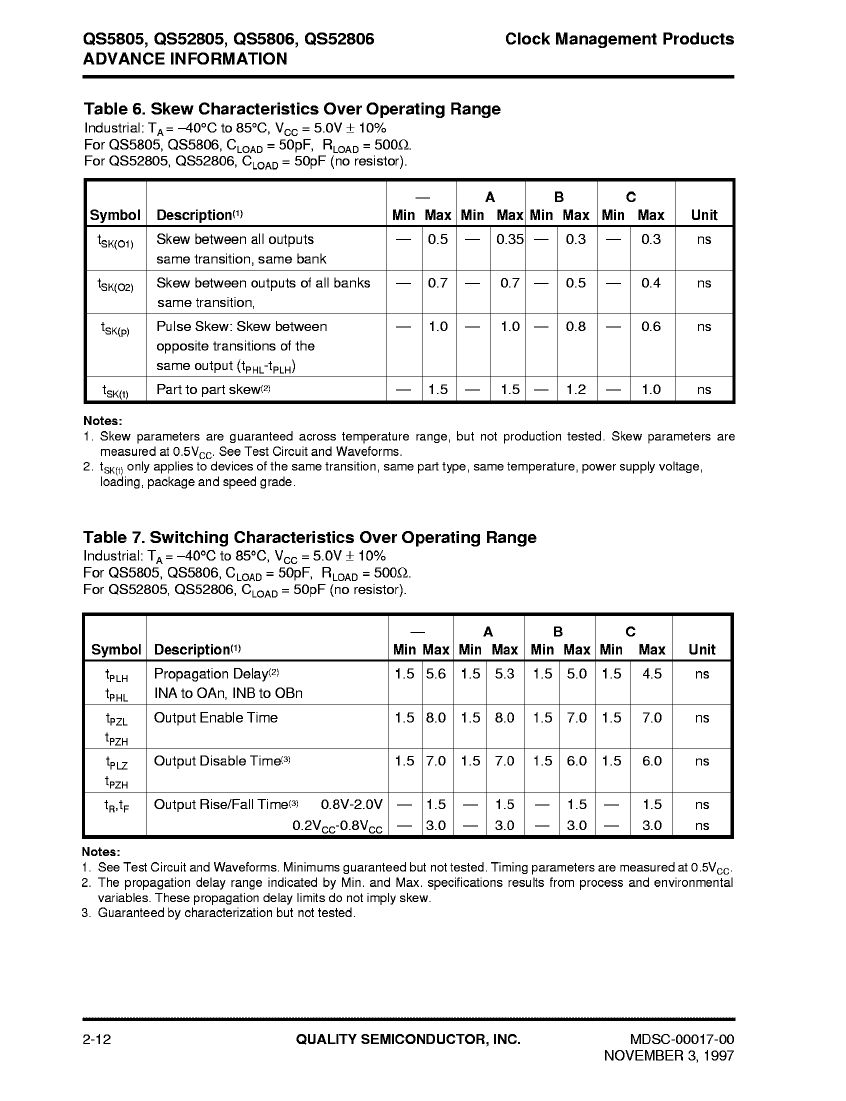

Same Edge Skew-Max（tskwd）	0.5 ns
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

	QS52806SO	QS52806Q
Description	Low Skew Clock Driver, QS5 Series, 0 True Output(s), 5 Inverted Output(s), CMOS, PDSO20, SOIC-20	Low Skew Clock Driver, QS5 Series, 0 True Output(s), 5 Inverted Output(s), CMOS, PDSO20, QSOP-20
Is it Rohs certified?	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	SOIC	QSOP
Contacts	20	20
Reach Compliance Code	not_compliant	_compli
series	QS5	QS5
Input adjustment	STANDARD	STANDARD
JESD-30 code	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e0	e0
Logic integrated circuit type	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER
MaximumI(ol)	0.012 A	0.012 A
Number of functions	2	2
Number of inverted outputs	5	5
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	SERIES-RESISTOR	SERIES-RESISTOR
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SSOP
Encapsulate equivalent code	SOP20,.4	SSOP20,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V
propagation delay (tpd)	5.6 ns	5.6 ns
Certification status	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.5 ns	0.5 ns
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.635 mm
Terminal location	DUAL	DUAL
