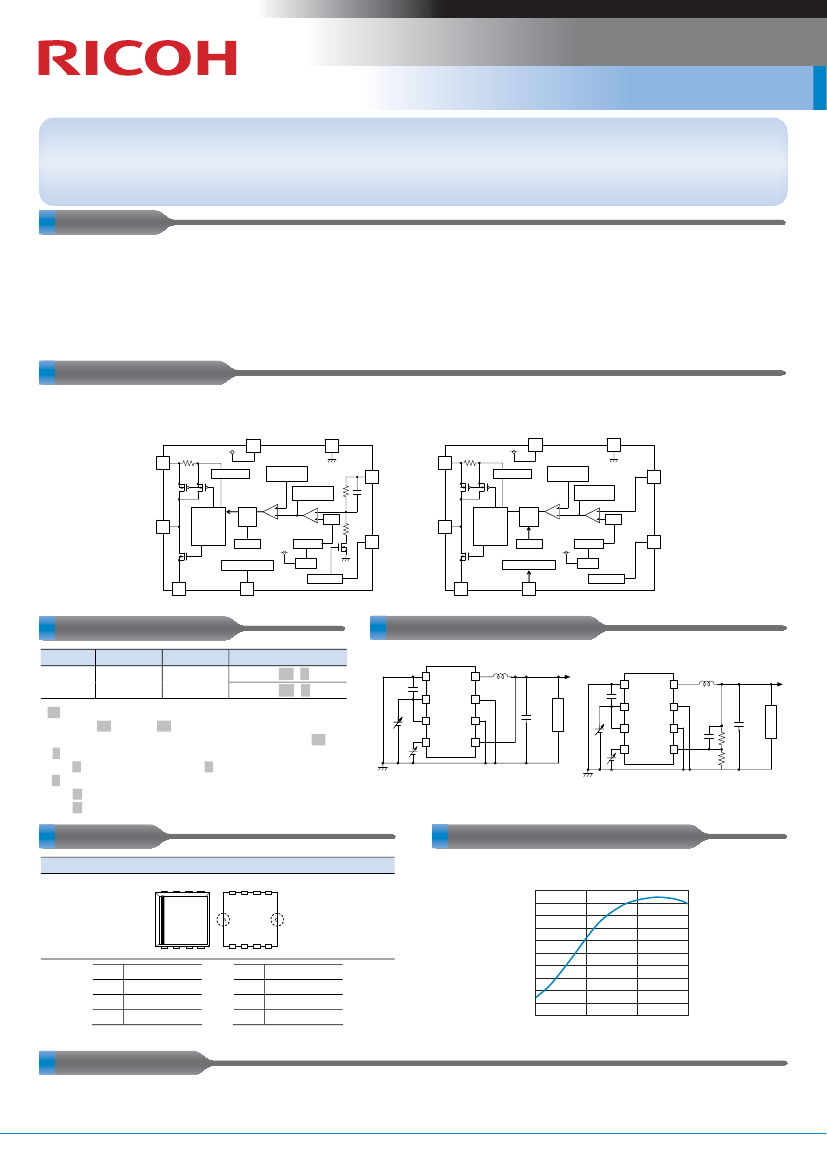

R1232D Series
PWM Step-down DC/DC Converter with Synchronous Rectifier
The R1232D Series are low supply current CMOS-based PWM step-down DC/DC converters with synchronous rectifier. R1232D
includes a soft start circuit, under-voltage lockout circuit (UVLO) and latch type protection circuit. By simply using an inductor, a
capacitor, and (resistors) as external components, a high-efficiency step-down DC/DC converter can be easily configured. R1232D
comes in two types: R1232Dxx1A/B with internally fixed output voltage and R1232D001C/D with adjustable output voltage with
external resistors.
FEATURES
•
Supply Current (I
DD
) ························ Typ. 140μA (1MHz), 240μA (2.25MHz) (No switching)
•
Standby Current (
I
standby
)·················· Max. 5μA (CE="L")
•
Input Voltage Range (V
IN
) ··············· 2.6V to 5.5V
•
Output Voltage Range (V
OUT
)·········· 0.9V to 3.3V (Internally fixed, R1232Dxx1A/B)
•
Output Voltage Accuracy ················± 2% (Feedback Voltage Accuracy :
±
16mV)
•
Oscillator Frequency (f
osc
)··············· 1MHz, 2.25MHz
•
Oscillator Maximum Duty Cycle (Maxduty) ····· Min. 100%
Externally adjustable (Feedback voltage : 0.8V, R1232D001C/D)
•
UVLO Detect Voltage (V
UVLO
) ·········Typ. 2.25V
•
Soft Start Time (t
start
) ·······················Typ. 1ms (1MHz)
•
•
•
•
Typ. 0.4ms (2.25MHz)
Coil-current Limit Circuit ················Current limit Typ. 1.4A
Latch Type Protection Circuit··········Delay time for protection
Typ. 2ms
Package··········································SON-8
Ceramic capacitors can be used. ···C
IN
=C
OUT
=10μF or more
BLOCK DIAGRAMS
R1232Dxx1A/B
(Internally fixed output voltage type)
V
DD
3
V
IN
2
Current Limit
Slope
Compensation
Phase
Compensation
Q
R
S
PWM
Comparator
Vref
Error
Amplifer
Soft Start
R1232D001C/D
(Externally adjustable output voltage type)
V
DD
3
V
IN
5
V
OUT
AGND
7
AGND
7
2
Current Limit
Slope
Compensation
Phase
Compensation
Q
R
S
PWM
Comparator
Error
Amplifer
Soft Start
Vref
5
V
FB
L
X
8
Output
Contorol
L
X
4
CE
“H” Active
8
Output
Contorol
Oscillator
Oscillator
4
CE
“H” Active
TEST Circuit
UVLO
Chip Enable
TEST Circuit
UVLO
Chip Enable
1
PGND
6
TEST
“L” or GND Fixed
1
PGND
6
TEST
“L” or GND Fixed
SELECTION GUIDE
Halogen Free
-
Package
SON-8
Part No.
R1232D.xx.1.
∗
-TR-F
3,000 pcs
R1232D.00.1.$.-TR-F
Q'ty per Reel
TYPICAL APPLICATIONS
R1232Dxx1A/B
L
1
PGND
R1232D001C/D
V
OUT
1
PGND
L
X
8
L
L
X
8
V
OUT
C
IN
2
V
IN
AGND
7
C
IN
LOAD
.xx.
: Specify the output voltage within the range of
0.9V (.09.) to 3.3V (.33.) in 0.1V steps.
For the externally adjustable output voltage type (.00.)
.
∗
.
: Select the oscillator frequency and output voltage type from
(.A.) 1MHz, internally fixed type or (.B.) 2.25MHz, internally fixed type.
.$.
: Select the oscillator frequency and output voltage type from
(.C.) 1MHz, externally adjustable type or
(.D.) 2.25MHz, externally adjustable type.
2
V
IN
AGND
7
3
V
DD
TEST
6
V
OUT
5
C
OUT
3
V
DD
TEST
6
C
OUT
Cb
R1
R2
4
CE
4
CE
V
FB
5
L=4.7μH, 2.2μH
C
IN
=10μF, C
OUT
=10μF
For V
OUT
=2.0V,
R1=33kΩ, R2=22kΩ, Cb=100pF
PACKAGE
SON-8
Top View
8
7
6
5
TYPICAL CHARACTERISTIC
R1232D331A Efficiency vs. Output Current
6
7
8
Bottom View
5
∗
1
2
3
4
4
3
2
1
1
2
3
4
PGND
V
IN
V
DD
CE
5
6
7
8
V
OUT
or V
FB
TEST
AGND
Lx
100
90
80
70
60
50
40
30
20
10
0
V
IN
=5.0V
Efficiency
η
(%)
∗)
The tab suspension leads are substrate level (GND).
1
10
100
Output Current I
OUT
(mA)
1000
APPLICATIONS
•
Power source for hand-held communication equipment, cameras, and VCRs
•
Power source for home appliances
EK-129-121001
•
Power source for battery-powered equipment
Step-down DC/DC Converter
