DLH-31-0004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DLH-31-0004

DLH-31-0004: DescriptionGeneral Purpose Inductor, 500uH, 15%, 2 Element, ROHS COMPLIANT; CategoryPassive components inductor; File Size251KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DLH-31-0004 Overview

General Purpose Inductor, 500uH, 15%, 2 Element, ROHS COMPLIANT

DLH-31-0004 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SCHURTER
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
DC Resistance	0.3 Ω
Nominal inductance(L)	500 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead length	3.5 mm
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	33 mm
Package length	31.5 mm
Package form	PCB Mount
Package width	18.5 mm
Maximum rated current	2 A
self resonant frequency	2 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Tolerance	15%

Preview

Download Datasheet

View All

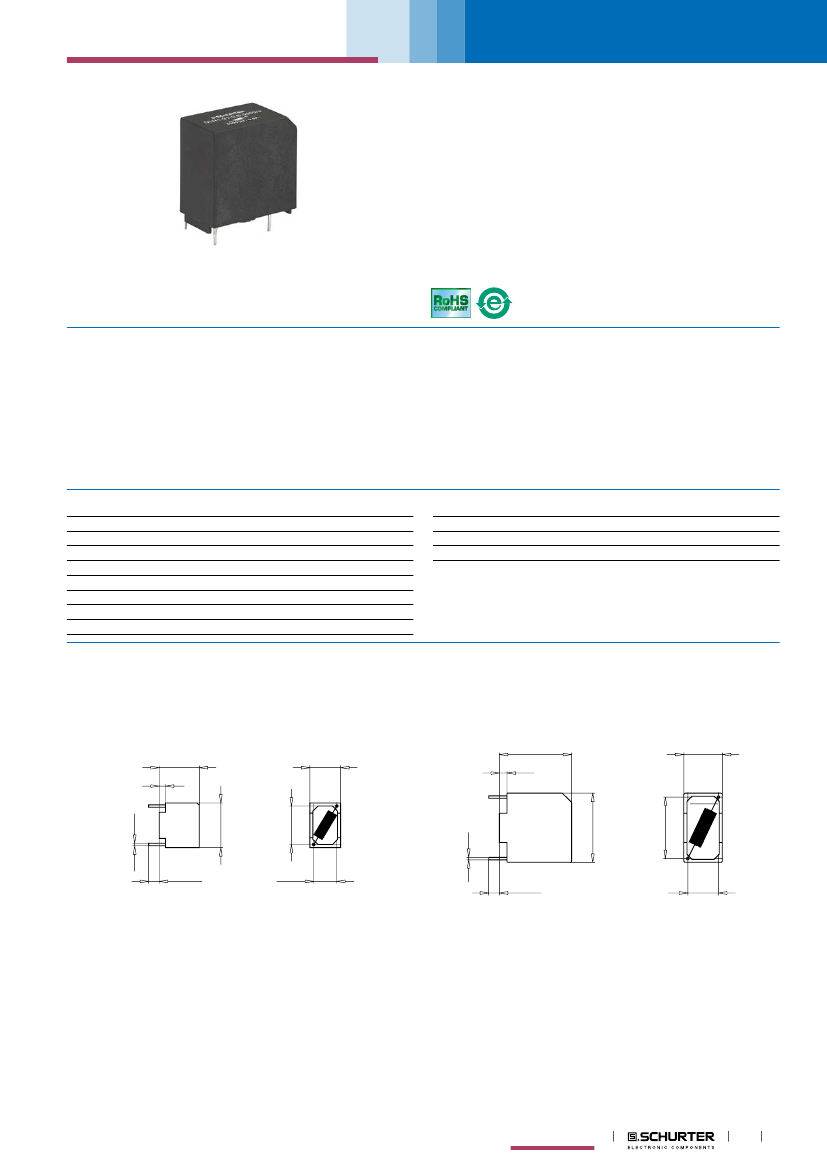

Suppression Chokes

www.schurter.com/PG81

Linear Choke, high design

DLH

Description

- Linear choke

- THT-terminals

- Inductor vertically positioned in housing

Applications

Standards

- EN 60938

Smoothing RFI suppression choke

RFI suppression choke

Chopper amplifiers

DC drives and stepper motor controls

Switching power supplies

Weblinks

pdf-datasheet, html-datasheet, General Product Information,

Approvals, CE declaration of conformity, RoHS, CHINA-RoHS, e-Shop,

SCHURTER-Stock-Check, Distributor-Stock-Check, Detailed request for

product

Technical Data

Rated voltage

Rated Current

Rated inductance

Power Operating Frequency

Terminal technic

Weight

Material: Housing

Sealing Compound

up to 600 VDC

0.45 - 7 A @ Ta 70 °C

0.02 - 5.5 mH, Tol. ±15%

up to 20 kHz

THT

4 - 38 g

UL 94V-0

Isolation Voltage

Climatic Category

Allowable Operation Temp.

2 kV eff., winding to ambient

40/125/21 acc. to IEC 60068-1

-40 °C to 125 °C

Dimension

Case 01-1

Case 09-1

13.5 max.

10.5 max.

24 max.

2.5

13 max.

15 max.

12.5

±0.2

23 max.

0.66 x 0.45

0.88 x 0.6

±0.2

3.5

-0.5

7.5

±0.2

3.5

-0.5

±0.2

EMC Products

DLH-31-0004 Related Products

	DLH-31-0004	DLH-31-0002	DLH-22-0003	DLH-31-0006
Description	General Purpose Inductor, 500uH, 15%, 2 Element, ROHS COMPLIANT	General Purpose Inductor, 2000uH, 15%, 2 Element, ROHS COMPLIANT	General Purpose Inductor, 500uH, 15%, 2 Element, 9151, ROHS COMPLIANT	General Purpose Inductor, 200uH, 15%, 2 Element, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
structure	Rectangular	Rectangular	Rectangular	Rectangular
DC Resistance	0.3 Ω	0.07 Ω	0.0003 Ω	0.109 Ω
Nominal inductance(L)	500 µH	2000 µH	500 µH	200 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Lead length	3.5 mm	3.5 mm	3.5 mm	3.5 mm
Number of functions	2	2	2	2
Number of terminals	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package height	33 mm	33 mm	24 mm	33 mm
Package length	31.5 mm	31.5 mm	23 mm	31.5 mm
Package form	PCB Mount	PCB Mount	Radial	PCB Mount
Package width	18.5 mm	18.5 mm	13 mm	18.5 mm
Maximum rated current	2 A	1 A	1 A	3.15 A
self resonant frequency	2 MHz	4 MHz	1 MHz	5 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO
surface mount	NO	NO	NO	NO
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	WIRE	WIRE	WIRE	WIRE
Tolerance	15%	15%	15%	15%
Maker	SCHURTER	-	SCHURTER	SCHURTER
