Printed-circuit board connector - MC 1,5/10-STF-3,5
BK7CNBDWH:NZ - 1711254
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB connector, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.5 mm,
connection method: Screw connection with tension sleeve, color: black, contact surface: Tin

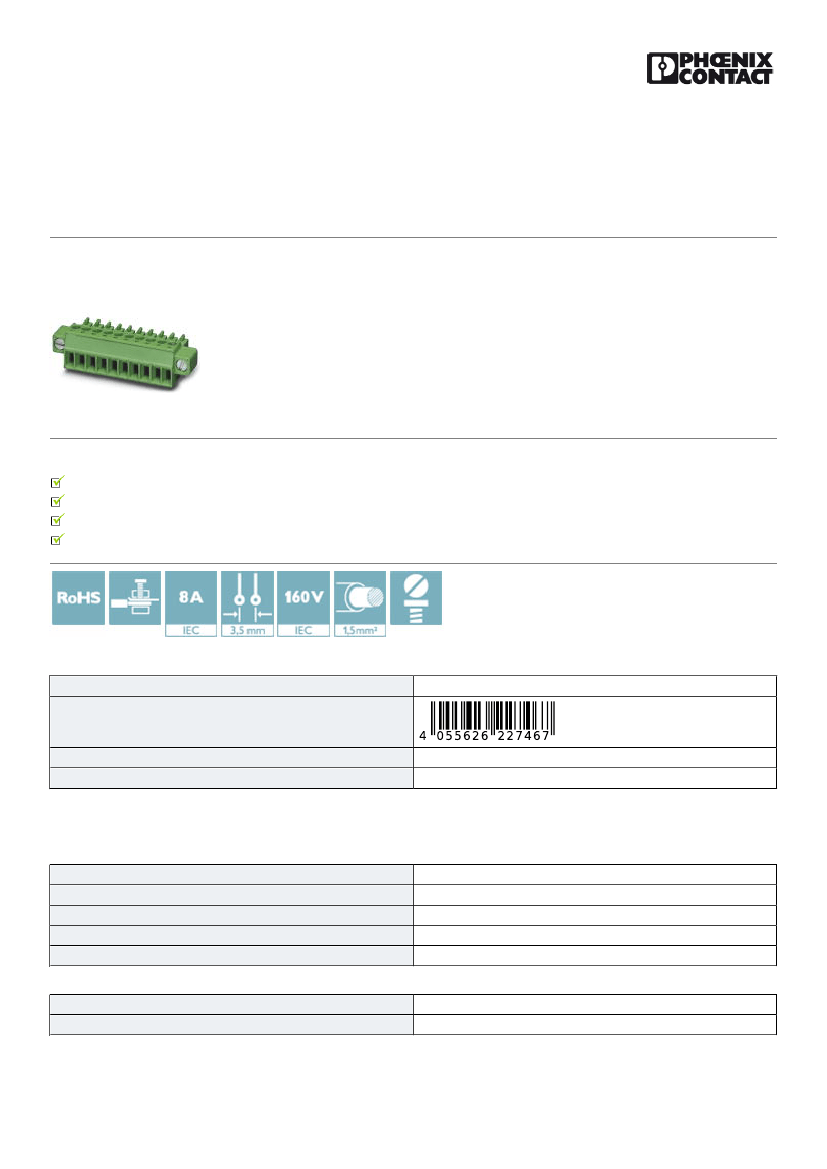

The figure shows a 10-position
version of the product
Your advantages
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Screwable flange for superior mechanical stability
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626227467
85366990
1
Technical data
Dimensions
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Dimension a
16.1 mm
17.3 mm
11.1 mm
3.5 mm
3.5 mm
General
Range of articles
Number of positions
MC 1,5/..-STF
10
01/14/2019 Page 1 / 3
https://www.phoenixcontact.com/in/products/1711254
Printed-circuit board connector - MC 1,5/10-STF-3,5
BK7CNBDWH:NZ - 1711254
Technical data
General
Connection method
Insulating material group
Rated voltage (III/2)
Nominal current I
N
Nominal cross section
Flammability rating according to UL 94
Screw thread
Screw connection with tension sleeve
I
160 V
8A
1.5 mm²
V0
M2
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27260700
27260700
27440309
27440309
27440309
ETIM
ETIM 5.0
ETIM 6.0
EC002638
EC002638
Approvals
Approvals
Approvals
CSA / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
01/14/2019 Page 2 / 3
https://www.phoenixcontact.com/in/products/1711254
Printed-circuit board connector - MC 1,5/10-STF-3,5
BK7CNBDWH:NZ - 1711254
Approvals
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
300 V
8A
28-16
http://www.csagroup.org/services-industries/product-listing/
B
300 V
8A
28-16
13631
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.iecee.org/
DE1-60987-B1B2
160 V
8A
0.2-1.5
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
160 V
8A
0.2-1.5
40011723
EAC
D
300 V
8A
30-14
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20110128
B
300 V
8A
30-14
