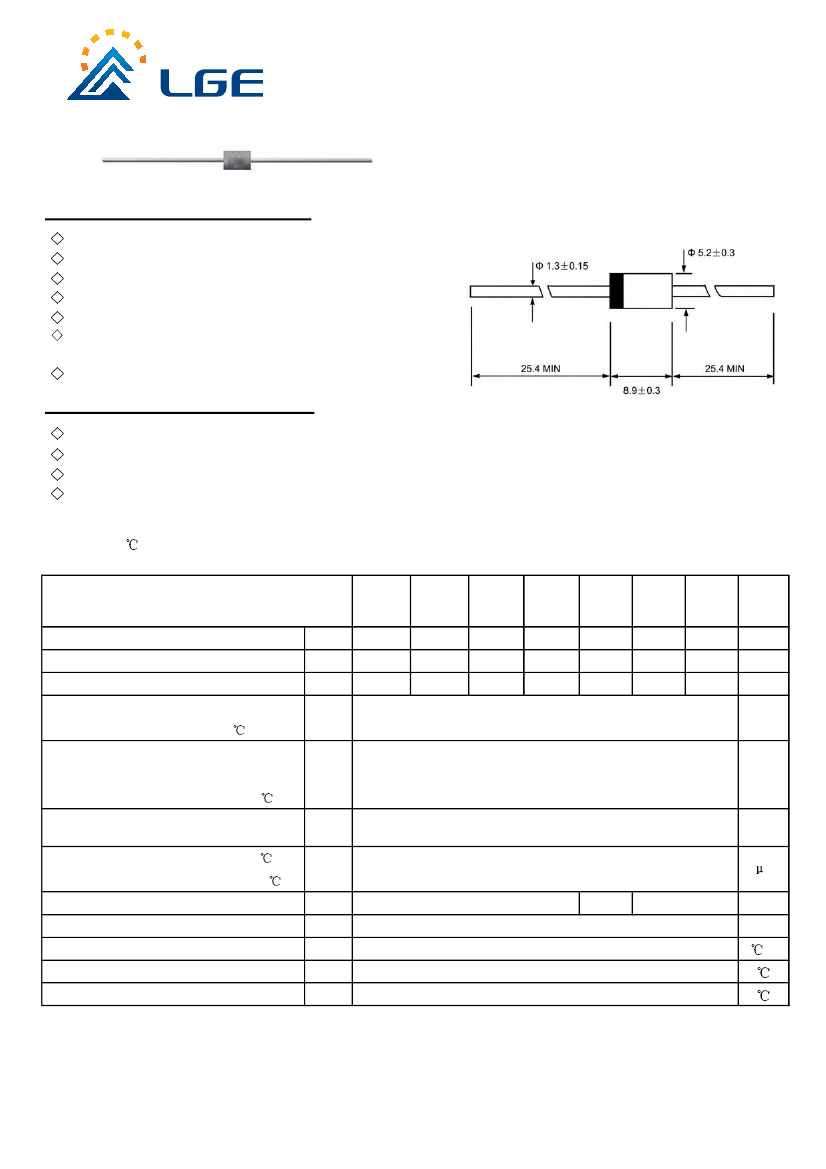

FR601S-FR607S
Fast Recovery Rectifiers
VOLTAGE RANGE: 50 --- 1000 V
CURRENT: 6.0 A
Features
Low cost
Diffused junction
Low leakage
Low forward voltage drop
High current capability
Easily cleaned with Freon,Alcohol,Isopropanol
and similar solvents
The plastic material carries U/L recognition 94V-0
DO - 27
Mechanical Data
Case:JEDEC
DO-27,molded
plastic
Polarity: Color band denotes cathode
Weight:0.041
unces,1.15 grams
Mounting position: Any
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
ambient temperature unless otherwise specified.
Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%.
FR
601S
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forw ard rectified current
9.5mm lead length,
@T
A
=75
FR
602S
100
70
100
FR
603S
200
140
200
FR
604S
400
280
400
6.0
FR
605S
600
420
600
FR
606S
800
560
800
FR
607S
1000
700
1000
UNITS
V
V
V
A
V
RRM
V
RMS
V
DC
I
F(AV)
50
35
50
Peak forw ard surge current
8.3ms single half-sine-w ave
superimposed on rated load
@T
J
=125
I
FSM
300.0
A
Maximum instantaneous forw ard voltage
@ 6.0 A
Maximum reverse current
at rated DC blocking voltage
@T
A
=25
@T
A
=100
V
F
I
R
t
rr
C
J
R
θ
JA
T
J
T
STG
150
1.3
10.0
200.0
250
150
12
- 55---- +150
- 55---- + 150
500
V
A
ns
pF
／Ｗ
Maximum reverse recovery time (Note1)
Typical junction capacitance
Typical thermal resistance
(Note2)
(Note3)
Operating junction temperature range
Storage temperature range
NOTE:1. Measured with I
F
=0.5A, I
R
=1A, I
rr
=0.25A.
2. Measured at 1.0MHz and applied rev erse v oltage of 4.0V DC.
3. Thermal resistance f rom junction to ambient.
http://www.luguang.cn
mail:lge@luguang.cn
FR601S-FR607S
Fast Recovery Rectifiers
Ratings AND Charactieristic Curves
FIG.1 -- REVERSE RECOVERY TIME CHARACTERISTIC AND TEST CIRCUIT DIAGRAM
50
N.1.
10
N.1.
t
rr
+0.5A
D.U.T.
(+)
50VDC
(APPROX)
(-)
1
N.1.
( - )
0
PULSE
GENERATOR
(NOTE2)
OSCILLOSCOPE
(NOTE 1)
( + )
-0.25A
-1.0A
1cm
NOTE
S:1.RISETIM =7ns M INP IM E
E
AX. UT P DANCE
=1M .22pF
2.RISETIM =10ns M SOURCEIM E
E
AX.
P DANCE
=5O
SE TIM BASEFOR 50/100 ns /cm
T E
FIG.2 --FORWARD DERATING CURVE
PEAK FORWARD SURGE CURRENT
AMPERES
FIG.3 --PEAK FORWARD SURGE CURRENT
AVERAGE FORWARD CURRENT
AMPERES
8
7
6
5
4
3
2
1
0
0
25
50
75
10 0
12 5
15 0 17 5
Single Phase
H alf W ave 60H
Z
R esistive or
Inductive Load
500
400
300
T
J
=125
8.3ms Single Half
Sine-Wave
200
100
0
1
10
100
AMBIENT TEMPERATURE,
FIG.4--TYPICAL FORWARD CHARACTERISTIC
INSTANTANEOUS FORWARD CURRENT
AMPERES
JUNCTION CAPACITANCE,pF
NUMBER OF CYCLES AT 60 Hz
FIG.5--PEAK JUNCTION CAPACITANCE
100
10
4
2
1.0
0.4
0.2
0.1
0.06
0.04
0.02
0.01
0.6 0.8
1.0 1.2
1.4
1.6
1.8
2.0
T
J
=25
Pulse Width=300
µ
S
200
160
140
120
110
100
40
20
10
.1
.2
TJ=25
f=1MHz
.4
1.0
2
4
10
20
40
100
INSTANTANEOUS FORWARD VOLTAGE,VOLTS
REVERSE VOLTAGE,VOLTS
http://www.luguang.cn
mail:lge@luguang.cn
