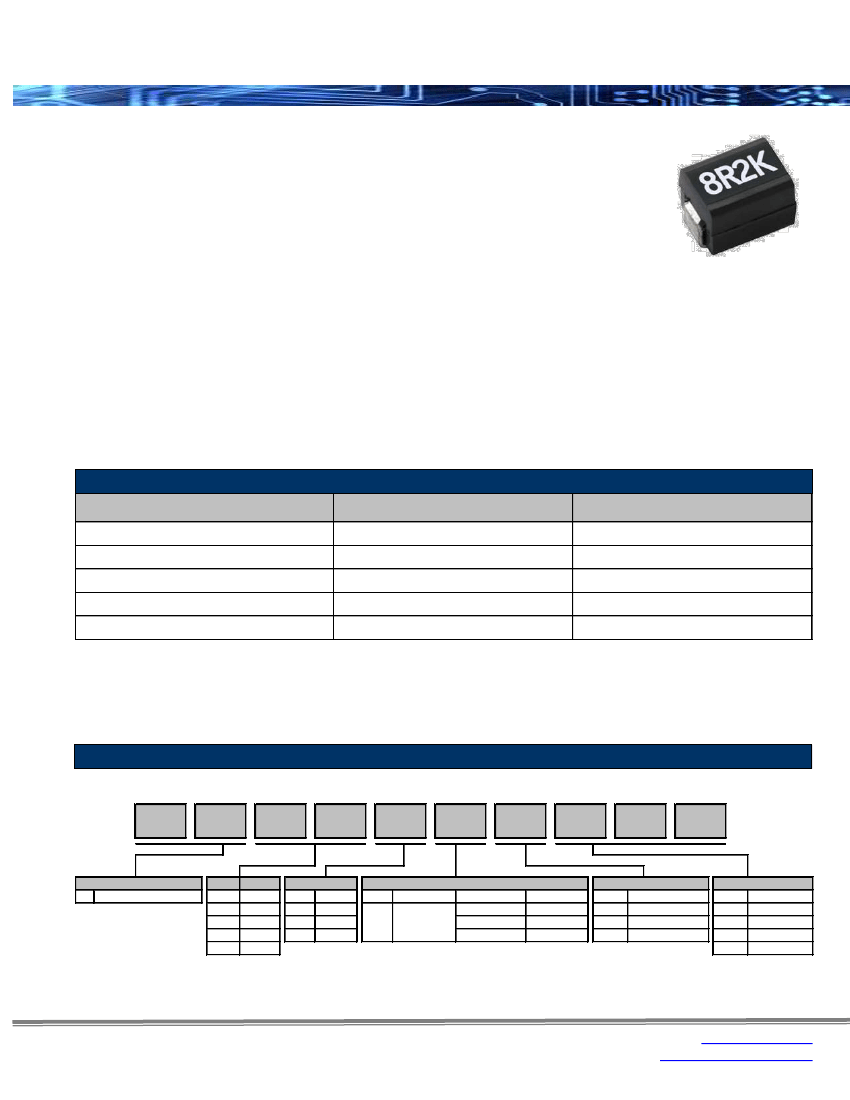

NL Series
Ferrite Wirewound Inductor
Features:
•
•
•
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
Wirewound on ferrite core design
Shows high reliability under mechanical and environmental stress
Robust termination for outstanding mechanical strength
Provides exceptional Q values characteristics
High current option available
Contact factory for inductance values outside those listed in the
datasheet
Find Frequency Curves, Environmental and Packaging
Specifications in related supplemental documents
Micro televisions
Liquid crystal televisions
Video Cameras
Portable VCRs
Car Radios
Mobile telephones
Radio and other electronic devices
Applications:
•
•
•
•
•
•
•
Inductance and Current Ranges
Type
NL05
NL08
NL10
NL12
NL20
Inductance (μH)
0.11 ~ 39
0.12 ~ 330
0.18 ~ 150
0.18 ~ 820
1 ~ 1000
Current Ranges (mA)
2000 ~ 100
2600 ~ 80
770 ~ 65
1050 ~ 30
1800 ~ 25
How to Order
1
2
3
4
5
6
7
8
9
10
N
L
0
5
K
T
C
R
1
0
Product Series
Wirewound Inductor
NL
Code
05
08
10
12
20
EIA
0805
1008
1210
1812
2220
Tolerance
Tol
Code
±5%
J
±10%
K
±20%
M
Code Description
T
Packaging
Size
05, 08, 10
Tape and
12
Reel
20
Quantity
2,000
500
1,000
Code
C
L
Design
Design
Standard
High Current
Low Profile
Inductance
Code Inductance
R12
120nH
R27
270nH
2R7
2700nH
100
10μH
Rev Date: 09/03/2013
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
NL Series
Ferrite Wirewound Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions

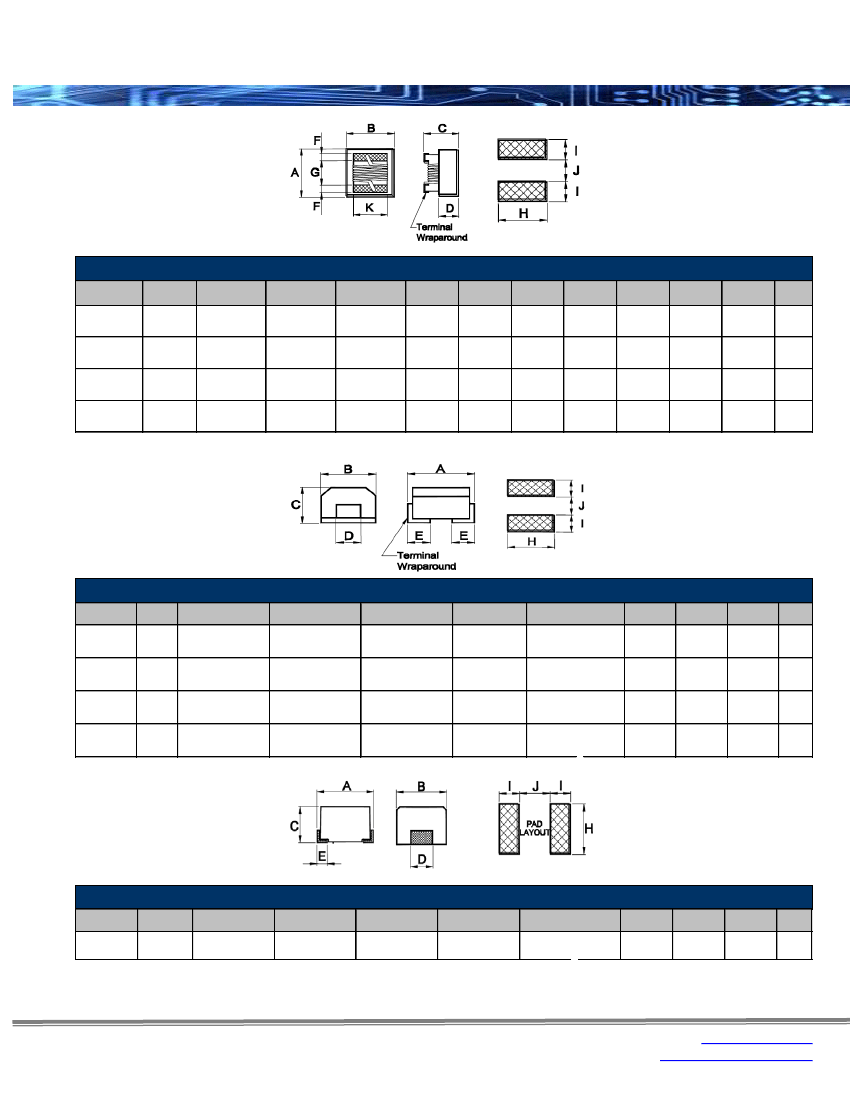

Mechanical Specifications - NL05(L), NL08(C)
Type/Code
NL05
NL05(L)
NL08
NL08(C)
Size
0805
0805
1008
1008
A
0.094 max
2.40 max
0.090 max
2.29 max
0.115 max
2.92 max
0.115 max
2.92 max
B
0.067 max
1.71 max
0.068 max
1.73 max
0.110 max
2.79 max
0.110 max
2.79 max
C
0.057 max
1.45 max
0.039 max
1.00 max
0.083 max
2.10 max
0.083 max
2.10 max
D
0.026
0.65
0.020
0.51
0.047
1.20
0.051
1.30
F
0.017
0.44
0.017
0.44
0.018
0.45
0.018
0.45
G
0.040
1.02
0.040
1.02
0.060
1.52
0.060
1.52
H
0.070
1.78
0.070
1.78
0.100
2.54
0.100
2.54
I
0.040
1.02
0.040
1.02
0.040
1.02
0.040
1.02
J
0.030
0.76
0.030
0.76
0.050
1.27
0.050
1.27
K
0.050
1.27
0.050
1.27
0.080
2.03
0.080
2.03
Unit
inches
mm
inches
mm
inches
mm
inches
mm
Mechanical Specifications - NL10, NL12(C), NL20
Type/Code
NL10
NL12
NL12(C)
NL20
Size
1210
1812
1812
2220
A
0.126 ± 0.016
3.20 ± 0.40
0.177 ± 0.012
4.50 ± 0.30
0.177 ± 0.012
4.50 ± 0.30
0.220 ± 0.012
5.60 ± 0.30
B
0.098 ± 0.008
2.50 ± 0.20
0.126 ± 0.008
3.20 ± 0.20
0.126 ± 0.008
3.20 ± 0.20
0.197 ± 0.008
5.00 ± 0.20
C
0.087 ± 0.008
2.20 ± 0.20
0.126 ± 0.008
3.20 ± 0.20
0.126 ± 0.008
3.20 ± 0.20
0.157 ± 0.012
4.00 ± 0.30
D
E
H
0.055
1.40
0.063
1.60
0.063
1.60
0.177
4.50
I
0.039
1.00
0.059
1.50
0.059
1.50
0.079
2.00
J
0.071
1.80
0.087
2.20
0.087
2.20
0.157
4.00
Unit
inches
mm
inches
mm
inches
mm
inches
mm
0.039 ± 0.008 0.024 - 0 / + 0.012
0.60 - 0 / + 0.30
1.00 ± 0.20
0.047
1.20
0.047
1.20
0.157 ± 0.008
4.00 ± 0.20
0.039 - 0 / + 0.012
1.00 - 0 / + 0.30
0.039 - 0 / + 0.012
1.00 - 0 / + 0.30
0.028 ± 0.008
0.70 ± 0.20
Mechanical Specifications - NL20(C)
Type/Code
NL20(C)
Size
2220
A
0.220 ± 0.012
5.60 ± 0.30
B
0.197 ± 0.008
5.00 ± 0.20
C
0.157 ± 0.012
4.00 ± 0.30
D
0.157 ± 0.008
4.00 ± 0.20
E
0.028 ± 0.008
0.70 ± 0.20
H
0.177
4.50
I
0.079
2.00
J
0.157
4.00
Unit
inches
mm
Rev Date: 09/03/2013
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
NL Series
Ferrite Wirewound Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications – NL05 Standard
Part Number
NL05…R11
NL05... R12
NL05... R15
NL05... R18
NL05... R22
NL05... R27
NL05... R33
NL05... R39
NL05... R47
NL05... R56
NL05... R62
NL05... R68
NL05... R82
NL05... R91
NL05... 1R0
NL05... 1R2
NL05... 1R5
NL05... 1R8
NL05... 2R2
NL05... 2R7
NL05... 3R3
NL05... 3R9
NL05... 4R7
NL05... 5R6
NL05... 6R8
NL05... 8R2
NL05... 100
NL05... 120
NL05... 150
NL05... 180
NL05... 220
NL05... 270
NL05... 330
NL05... 390
Inductance
(μH)
0.11
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.62
0.68
0.82
0.91
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
Tolerance
(%)
±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
Test Freq
(MHz)
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
Q
Min
25
20
20
20
20
20
20
20
20
20
30
20
20
30
15
15
15
15
15
15
15
15
15
15
15
15
10
16
16
16
16
16
16
15
SRF
(MHz) Min
1200
700
900
600
550
550
550
420
350
300
640
300
300
500
280
280
250
120
110
70
60
55
45
40
36
33
30
37
30
23
20
19
18
16
DCR
(Ω) Max
0.05
0.18
0.18
0.20
0.25
0.38
0.35
0.35
0.45
0.45
0.45
0.60
0.55
0.55
0.80
0.90
1.05
1.00
1.10
1.20
1.50
1.75
2.10
2.30
2.70
3.30
4.50
2.80
3.80
4.48
6.30
6.85
7.60
8.20
IDC
(mA) Max
2000
1100
1100
800
700
700
650
600
600
550
980
500
500
900
450
400
350
350
320
320
300
300
200
250
200
180
180
220
200
180
160
140
120
100
Electrical Specifications – NL05(L) Low Profile
Part Number
NL05... L1R0
NL05... L3R3
NL05... L4R7
NL05… L6R8
NL05... L100
NL05... L150
NL05... L220
Inductance
(μH)
1.0
3.3
4.7
6.8
10.0
15.0
22.0
Tolerance
(%)
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
Test Freq
(MHz)
L:7.96 / Q:25.2
7.96
7.96
7.96
7.96
7.96
7.96
Q
Min
15
13
15
15
14
12
10
SRF
(MHz) Min
115
70
65
41
31
28
25
DCR
(Ω) Max
0.90
1.40
1.90
2.40
2.70
5.00
6.00
IDC
(mA) Max
450
450
400
400
400
300
250
Rev Date: 09/03/2013
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
NL Series
Ferrite Wirewound Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications – NL08 Standard
Part Number
NL08... R12
NL08... R18
NL08... R20
NL08... R22
NL08... R27
NL08... R33
NL08... R39
NL08... R47
NL08... R56
NL08... R62
NL08... R68
NL08... R75
NL08... R82
NL08... R91
NL08... 1R0
NL08... 1R2
NL08... 1R5
NL08... 1R8
NL08... 2R2
NL08... 2R7
NL08... 3R3
NL08... 3R9
NL08... 4R7
NL08... 5R6
NL08... 6R8
NL08... 8R2
NL08... 100
NL08... 120
NL08... 150
NL08... 180
NL08... 220
NL08... 270
NL08... 330
NL08... 390
NL08... 470
NL08... 560
NL08... 680
NL08... 820
NL08... 101
Inductance
(μH)
0.12
0.18
0.20
0.22
0.27
0.33
0.39
0.47
0.56
0.62
0.68
0.75
0.82
0.91
1.00
1.20
1.50
1.80
2.20
2.70
3.30
3.90
4.70
5.60
6.80
8.20
10.00
12.00
15.00
18.00
22.00
27.00
33.00
39.00
47.00
56.00
68.00
82.00
100.00
Tolerance
(%)
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
Test Freq
(MHz)
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
1.00
Q
Typical
26
30
30
27
29
30
30
30
30
30
30
30
30
30
25
25
25
25
25
25
25
25
25
25
25
25
20
15
15
15
15
15
15
15
14
14
14
14
8
SRF
(MHz) Typical
800
600
735
600
425
400
375
350
325
460
300
420
260
400
245
230
182
135
105
70
55
48
43
42
39
36
33
28
24
20
18
17
16
15
13
10
8
8
7
DCR
(Ω) Max
0.30
0.30
0.30
0.40
0.42
0.42
0.45
0.50
0.55
0.55
0.55
0.65
0.65
0.65
0.60
0.74
0.85
0.92
1.10
1.22
1.37
1.66
1.68
1.75
1.85
2.00
2.32
2.99
3.42
4.65
5.12
5.76
6.44
6.85
9.94
10.70
12.80
18.30
19.60
IDC
(mA) Max
1000
960
960
880
900
900
700
900
850
900
800
880
700
840
600
600
550
500
500
350
350
310
300
300
300
250
250
200
200
180
180
160
120
120
110
90
90
80
120
Rev Date: 09/03/2013
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
NL Series
Ferrite Wirewound Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications – NL08(C) High Current
Part Number
NL08... CR22
NL08... CR47
NL08... CR68
NL08... CR82
NL08... C1R0
NL08... C1R2
NL08... C1R5
NL08... C1R8
NL08... C2R2
NL08... C2R7
NL08... C3R3
NL08... C3R9
NL08... C4R7
NL08... C5R6
NL08... C6R8
NL08... C8R2
NL08... C100
NL08... C120
NL08... C150
NL08... C180
NL08... C220
NL08... C330
NL08... C470
NL08... C101
NL08... C221
NL08... C331
Inductance
(μH)
0.22
0.47
0.68
0.82
1.00
1.20
1.50
1.80
2.20
2.70
3.30
3.90
4.70
5.60
6.80
8.20
10
12
15
18
22
33
47
100
220
330
Tolerance
(%)
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
Test Freq
(MHz)
25.20
25.20
25.20
25.20
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
1.00
1.00
1.00
Q
Typical
35
35
35
35
22
25
25
25
22
25
22
25
22
22
22
22
20
20
20
20
20
20
23
13
13
13
SRF
(MHz) Typical
800
460
400
360
245
230
182
135
105
70
55
50
45
42
40
36
35
30
24
20
18
16
17
4
3
2
DCR
(Ω) Max
0.15
0.20
0.30
0.35
0.35
0.40
0.45
0.55
0.60
0.70
0.75
0.80
0.90
1.05
1.05
1.30
1.55
2.10
2.38
2.60
2.92
4.10
7.80
13.20
26.50
32.50
IDC
(mA) Max
2600
2400
2200
1800
800
550
550
550
500
500
450
450
400
400
400
350
300
280
250
200
200
180
350
200
140
110
Electrical Specifications – NL10 Standard
Part Number
NL10... R18
NL10... R22
NL10... R27
NL10... R33
NL10... R39
NL10... R47
NL10... R56
NL10... R68
NL10... R82
NL10... 1R0
NL10... 1R2
NL10... 1R5
NL10... 1R8
NL10... 2R2
NL10... 2R7
NL10... 3R3
NL10... 3R9
NL10... 4R7
NL10... 5R6
NL10... 6R8
NL10... 8R2
Inductance
(μH)
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.00
1.20
1.50
1.80
2.20
2.70
3.30
3.90
4.70
5.60
6.80
8.20
Tolerance
(%)
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
Test Freq
(MHz)
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
25.20
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
Q
Min
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
SRF
(MHz) Min
400
350
320
300
250
220
180
160
140
120
100
85
80
75
70
60
55
50
45
40
35
DCR
(Ω) Max
0.28
0.32
0.36
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.75
0.85
0.90
1.00
1.10
1.20
1.30
1.50
1.60
1.80
2.00
IDC
(mA) Max
450
450
450
450
450
450
450
450
450
400
390
370
350
320
290
260
250
220
200
180
170
Rev Date: 09/03/2013
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
5
www.seielect.com
marketing@seielect.com
京公网安备 11010802033920号
EEWORLD
