5338-T004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 5338-T004

5338-T004: DescriptionData Line Filter, 1 Function(s), ROHS COMPLIANT PACKAGE-5; CategoryAnalog mixed-signal IC filter; File Size75KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

5338-T004 Overview

Data Line Filter, 1 Function(s), ROHS COMPLIANT PACKAGE-5

5338-T004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
ECCN code	EAR99
filter type	DATA LINE FILTER
high	10.5 mm
Maximum insertion loss	3.1 dB
length	7 mm
Manufacturer's serial number	FB
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	100000 OHM Ω
physical size	L7.0XB7.2XH10.5 (mm)/L0.276XB0.283XH0.413 (inch)
width	7.2 mm

Preview

Download Datasheet

View All

Filter Coils < Pin Type: FB Series>

Type:

FB-6G

◆

Product Description

・7.0×7.2mm

Max.(L×W), 10.5mm Max. Height.

・Operating

frequency:500kHz Max.

・In

addition to the reference versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆

Feature

・Variable

shielded type.

・Two

built-in capacitors are available in one coil.

・Ideally

used as Audio Filters(LPF, BPF, Delay Line)

・RoHS

Compliance

◆

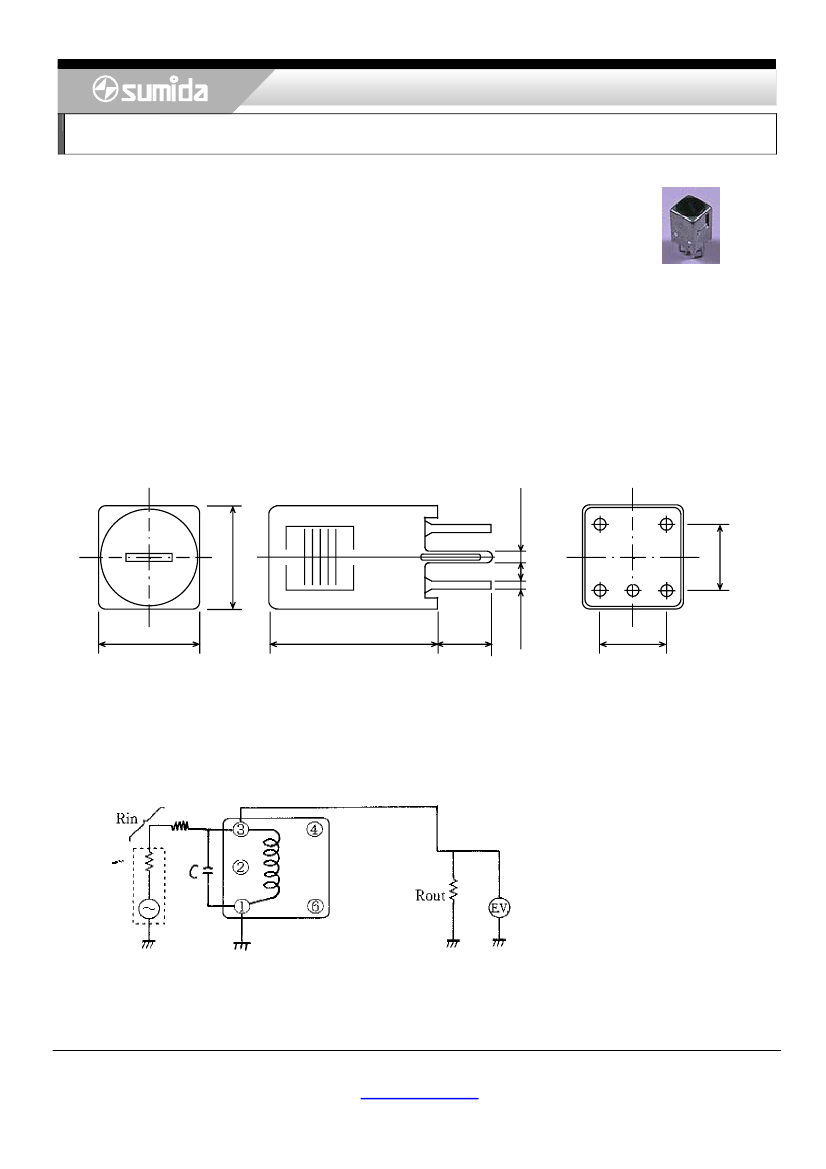

Dimensions (mm)

1.0±0.2

7.0 MAX.

6.8±0.4

10.5 MAX.

3.0

−0.5

＋1.0

＋0.1

φ0.5

−0.05

4.0±0.2

＊

Dimension does not include solder used on coil.

＊

Pin pitch should be measured at the root of terminals.

◆

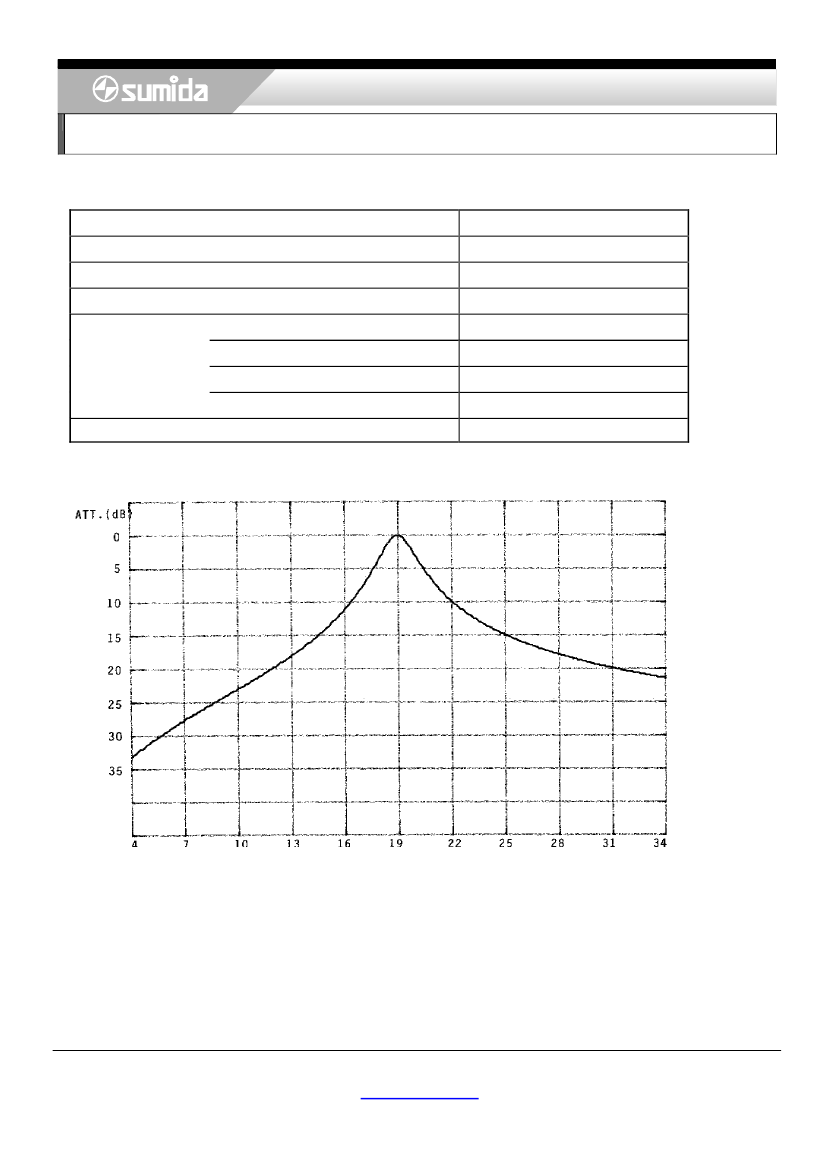

Testing Circuit

R in=Rg+R1=39kΩ

Rout=100kΩ

C=4700pF±50pF

Please refer to the sales offices on our website for a representative near you

www.sumida.com

4.0±0.2

1/1
