DINLR-F3196SFW1-L: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Plug; CategoryThe connector The connector; File Size516KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

DINLR-F3196SFW1-L Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Plug

DINLR-F3196SFW1-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.413 inch
subject depth	0.72 inch
body length	3.701 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	CENTRONIC
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	IVORY
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DINL
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Termination type	SOLDER
Total number of contacts	96

Preview

Download Datasheet

View All

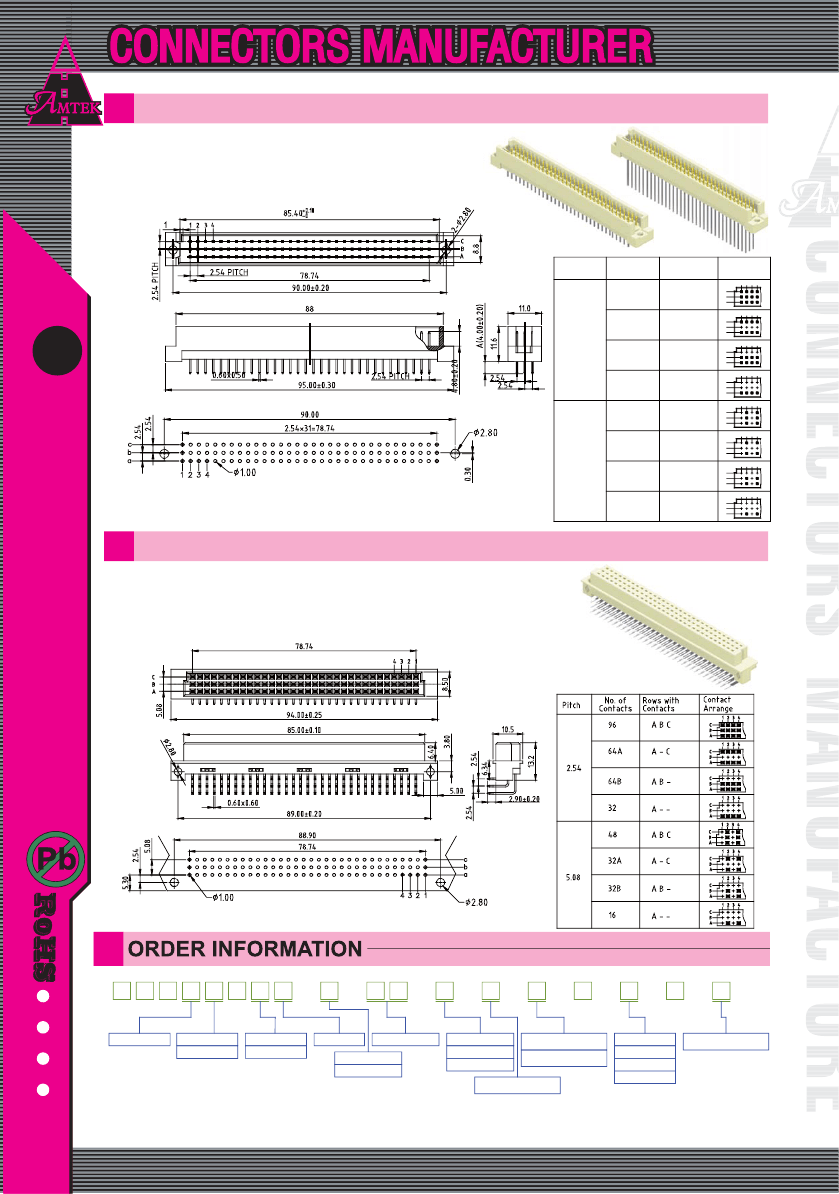

DIN 41612 Long Body R Type Male

Specificatios

Current Rate:2 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:30mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-55°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PBT

Terminal:Copper Alloy

Plating:Selective Gold Plating

D

IN 41612 Conn. Series

D

Part No.:DINLS-M3XX-L

DIN 41612 Long Body R Type Female

Specificatios

Current Rate:2 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:30mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-55°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PBT

Terminal:Copper Alloy

Plating:Selective Gold Plating

Part No.:DINLR-F3XX-L

I N L X

R :R ig h t A ngle

S :S traight

- X 3

M :M ale

F :F em ale

X

3 :3 Row s

X X

N o . o f Contacts

X

W

S :S e le ctive

S F :S e le ctive 15"

S D :S e le ctive 30u"

X

-

X

1 :D im . A = 4 .0

2 :D im . A = 2 .5

3:D im . A = 13.0

F or D IN L S -M 3X X X O nly

-

L

L :R o H S + P B T

L :L o n g B ody

1 :W /O B oa rd lock

2 :W ith B oa rdlock

1 :P itch 2.54m m

2 :P itch 5.08m m

W :Ivo ry Insulator

Standard Recommended

9-3
