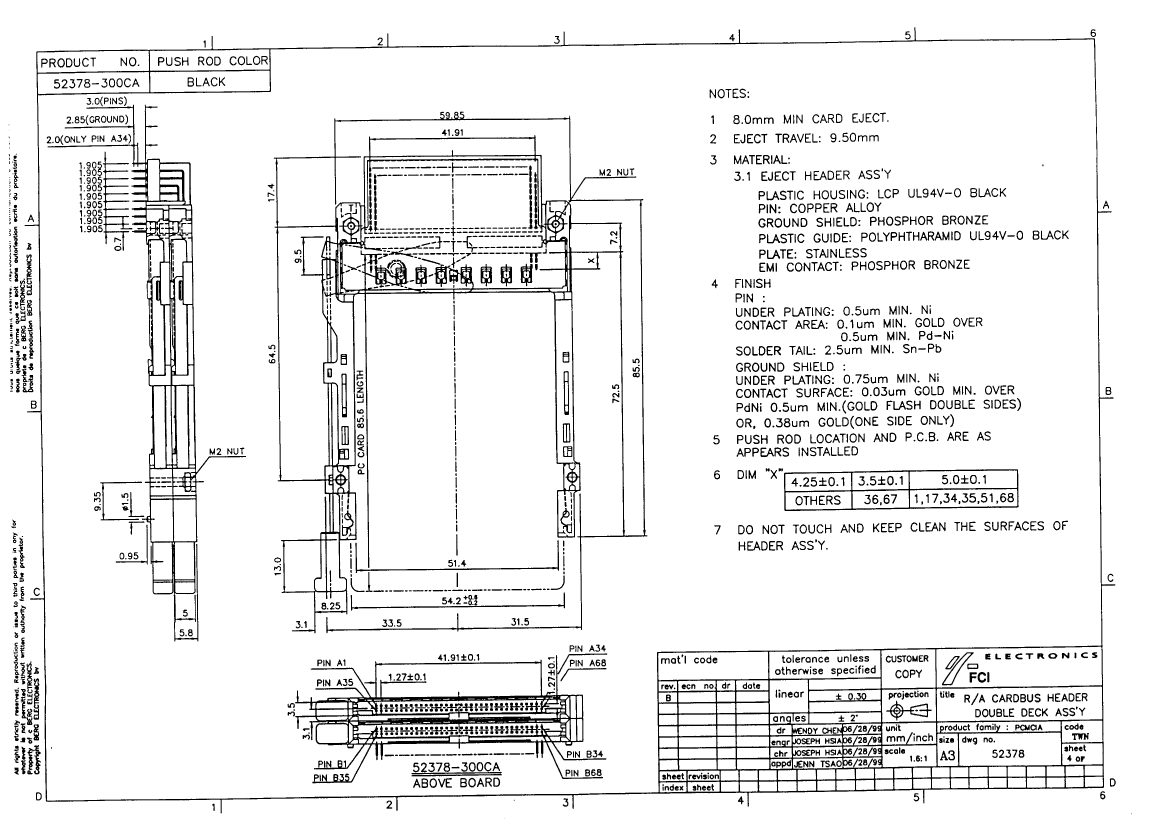

52378-300CA datasheet, PDF - EEWORLD Datasheet

52378-300CA: DescriptionPCMCIA Connector, 168 Contact(s), 6 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size562KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

52378-300CA Overview

PCMCIA Connector, 168 Contact(s), 6 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	32 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROWS
Connector type	PCMCIA CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	52378
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	6
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	168
UL Flammability Code	94V-0

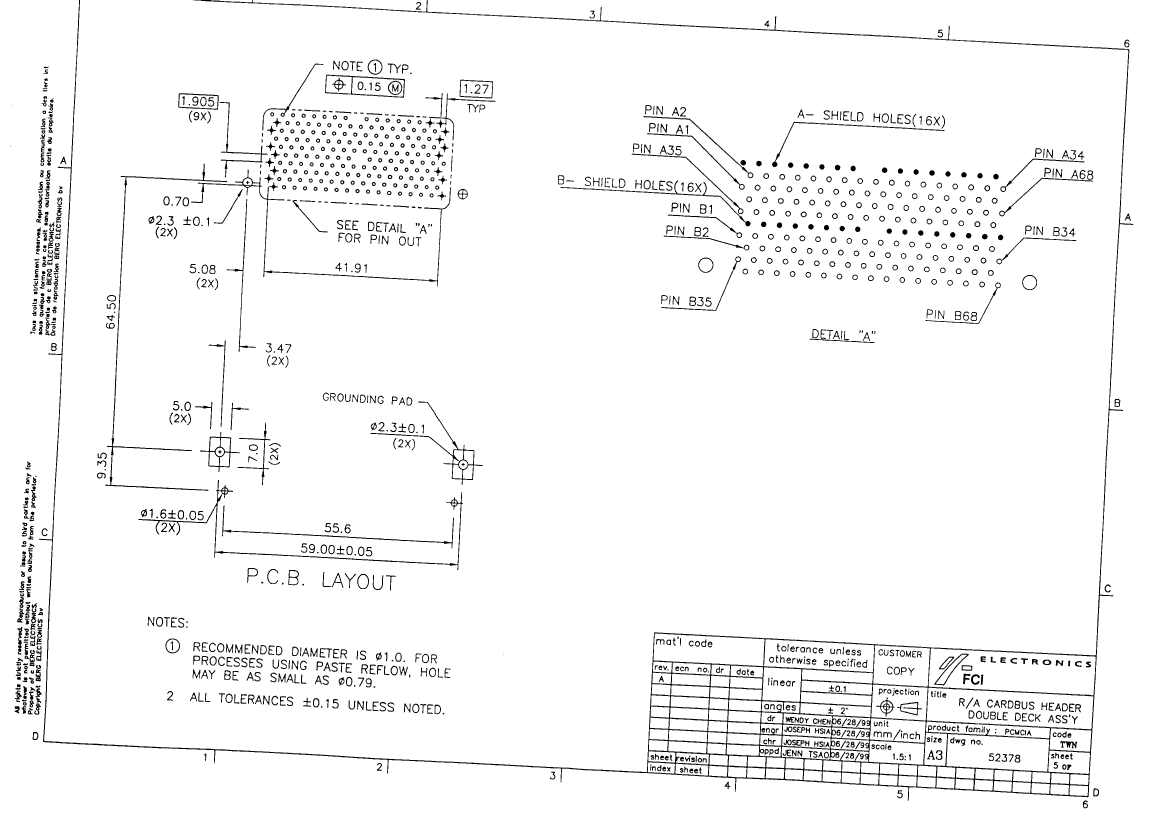

PDM: Rev:B

STATUS:

Released

Printed: Oct 12, 2010

.

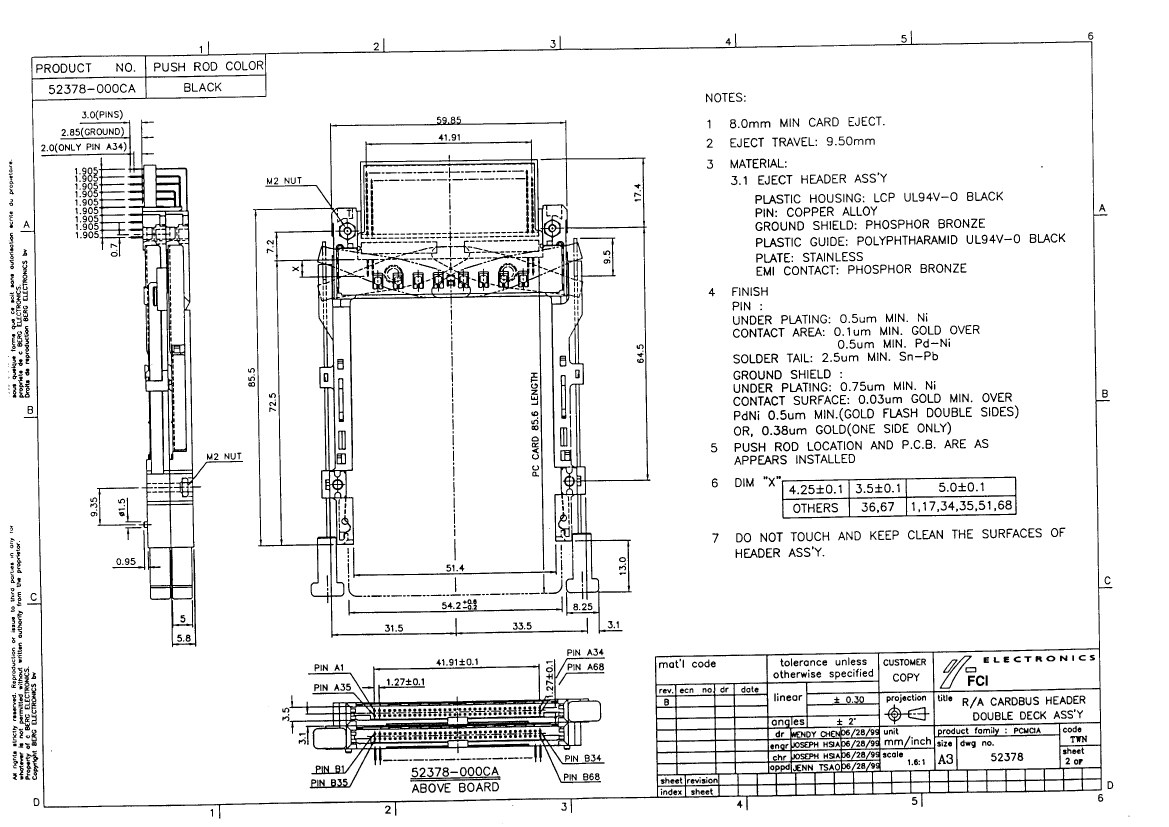

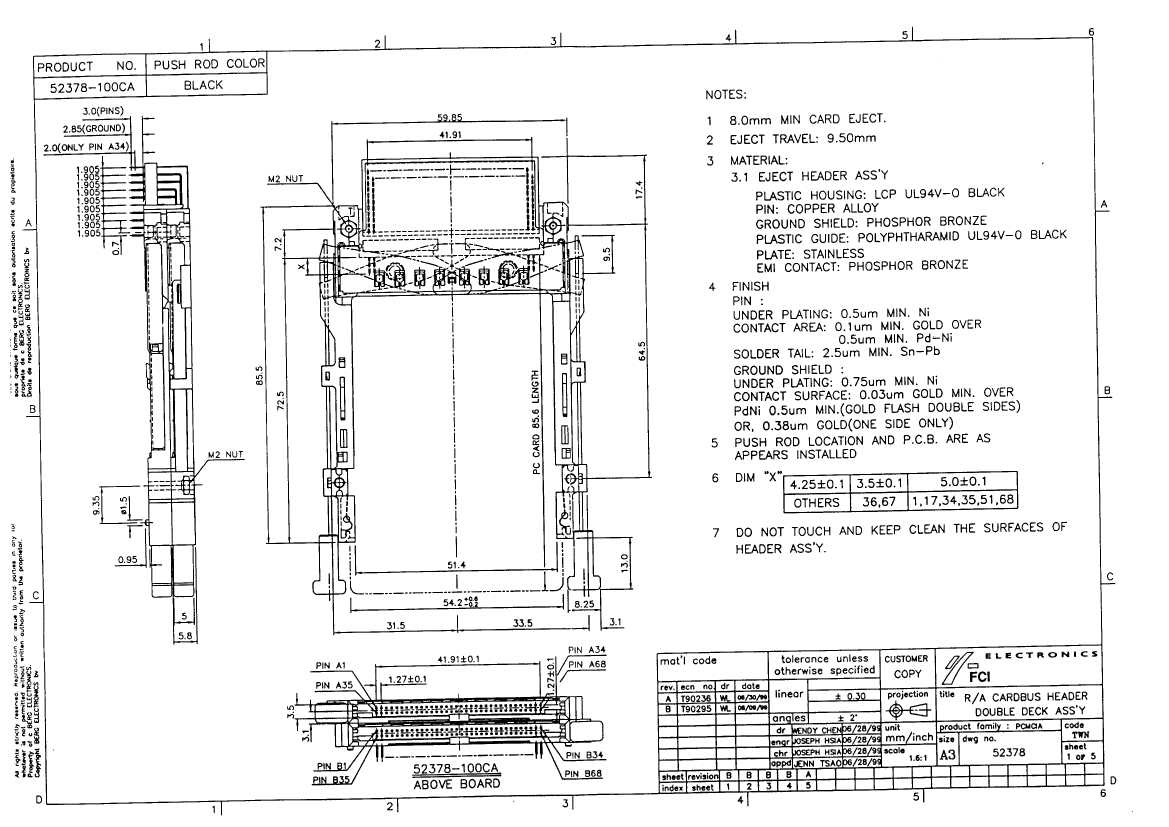

	52378-300CA	52378-000CA	52378-100CA	52378-200CA
Description	PCMCIA Connector, 168 Contact(s), 6 Row(s), Male, Right Angle, Solder Terminal	PCMCIA Connector, 168 Contact(s), 6 Row(s), Male, Right Angle, Solder Terminal	PCMCIA Connector, 168 Contact(s), 6 Row(s), Male, Right Angle, Solder Terminal	PCMCIA Connector, 168 Contact(s), 6 Row(s), Male, Right Angle, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	unknown	compliant
Other features	32 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROWS	32 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROWS	32 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROWS	32 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROWS
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	52378	52378	52378	52378
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	6	6	6	6
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	168	168	168	168
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
