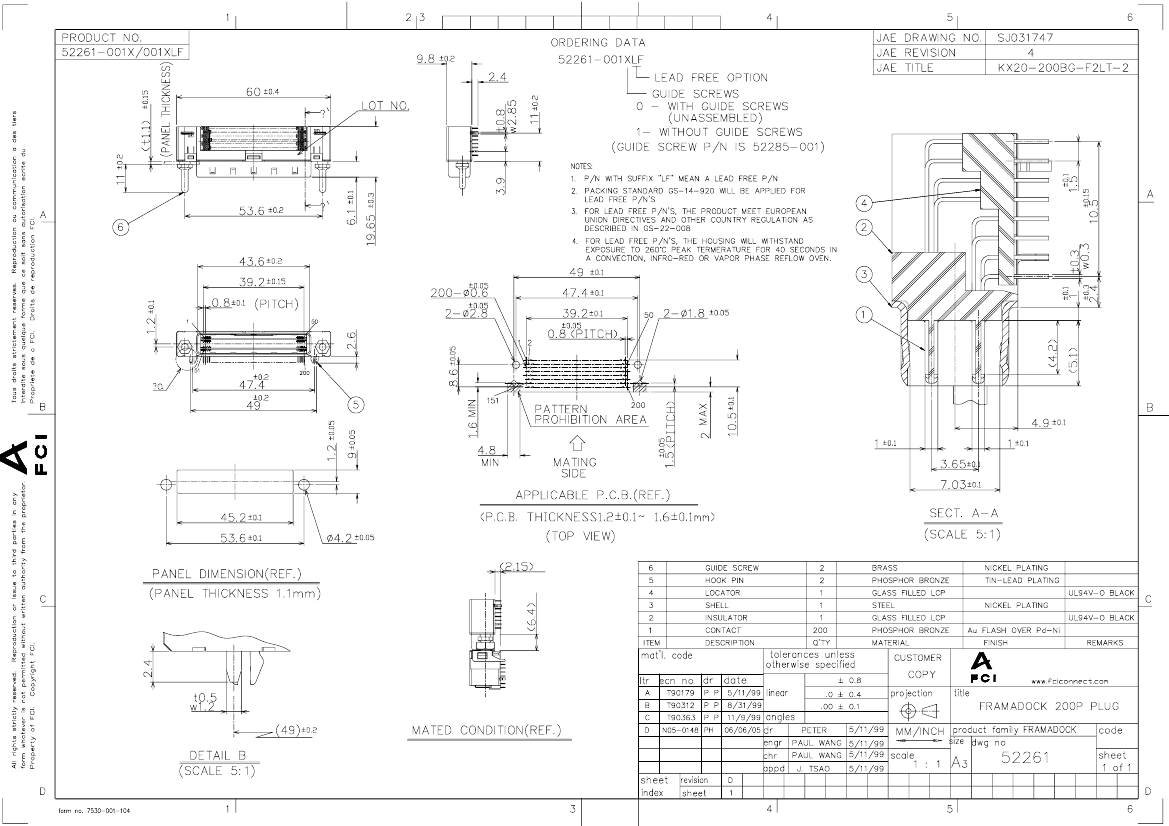

Preview

52261-0011: DescriptionPCMCIA Connector, 200 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Plug; CategoryThe connector The connector; File Size131KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

52261-0011 Overview

PCMCIA Connector, 200 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Plug

52261-0011 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
Body/casing type	PLUG
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER PALLADIUM NICKEL
Contact completed and terminated	GOLD FLASH OVER PALLADIUM NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	52261
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SOLDER
Total number of contacts	200
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Jul 22, 2010

.

52261-0011 Related Products

	52261-0011	52261-0010LF	52261-0010	52261-0011LF
Description	PCMCIA Connector, 200 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Plug	PCMCIA Connector, 200 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Plug, LEAD FREE	PCMCIA Connector, 200 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Plug	PCMCIA Connector, 200 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Plug, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	unknown	unknown	compliant
Other features	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER PALLADIUM NICKEL	GOLD FLASH OVER PALLADIUM NICKEL	GOLD FLASH OVER PALLADIUM NICKEL	GOLD FLASH OVER PALLADIUM NICKEL
Contact completed and terminated	GOLD FLASH OVER PALLADIUM NICKEL	GOLD FLASH OVER PALLADIUM NICKEL	GOLD FLASH OVER PALLADIUM NICKEL	GOLD FLASH OVER PALLADIUM NICKEL
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	52261	52261	52261	52261
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	200	200	200	200
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	-	EAR99	EAR99
