801-13-007-40-002000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-13-007-40-002000

801-13-007-40-002000: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size249KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

801-13-007-40-002000 Overview

Board Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT

801-13-007-40-002000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	GOLD (10)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	801
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	7

Preview

Download Datasheet

View All

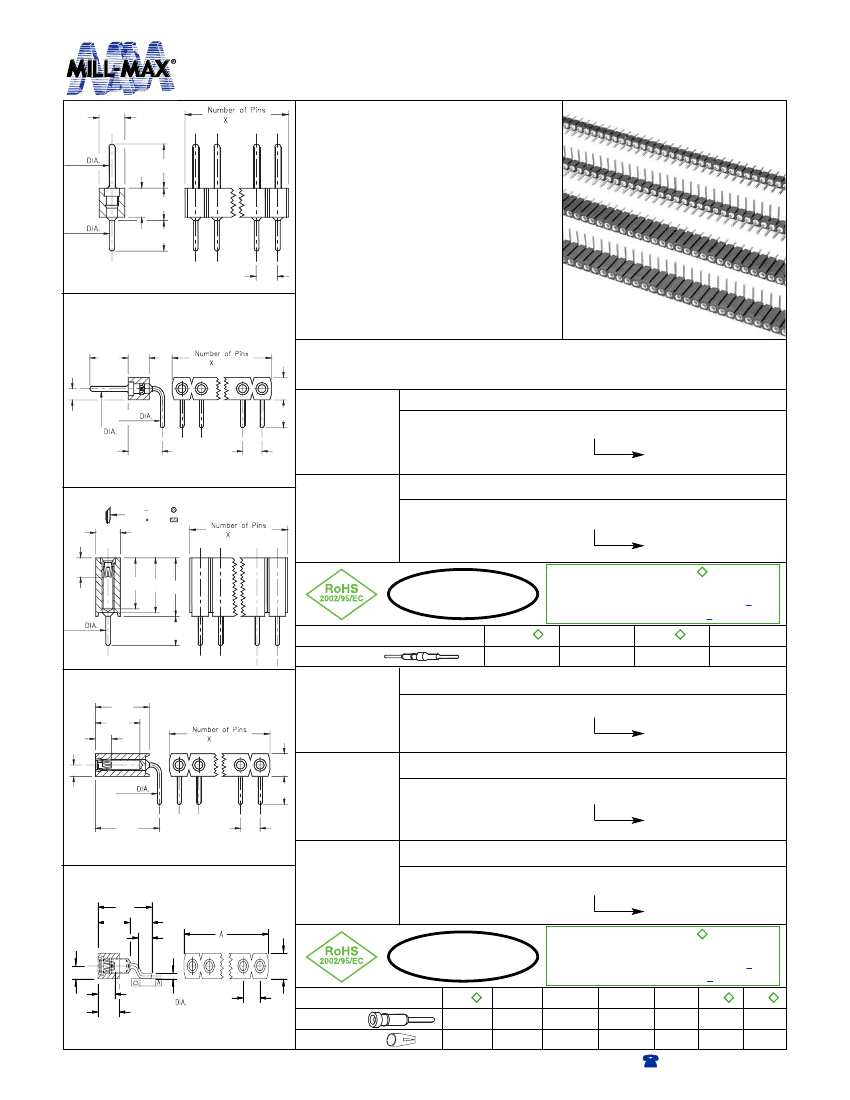

INTERCONNECTS

0,76 dia. Pins, Straight and Right Angle

Single Row

2,54

Series 800, 801

0,76

4,95

•

Receptacles accept 0,76

diameter and 0,64 square pins

such as Series 890 and 892

pin headers.

•

Pin interconnects available with

straight (MM# 7007) or right angle

(MM# 5005) solder tails. (See page

173 for details)

2,79

0,61

3,18

3,0

Fig. 1

2,54

•

Sockets are available with straight

(MM# 1304) or right angle (MM#

1305) solder tails. (See pages

146 & 147 for details)

4,95

2,79

2,54

Ordering Information

3,2

1,27

0,61

0,76

4,5

2,54

Series 800...10-001

Straight Pin Header

01-64

Right Angle Pin Header

02-64

Fig. 1

Fig. 2

800-XX-0_ _-10-001000

Specify # of pins

Series 800...20-001

0,64

2,54

0,94

0,64

2,54

Fig. 2

800-XX-0 _ _-20-001000

Specify # of pins

XX= Plating Code

See Below

2,24

6,1

6,6

7,01

0,61

For RoHS compliance, select plating code.

For the gold option (XX=10) also change

part number from 80X-XX-0XX-10-002000

to 80X-10-0XX-10-002100

5,08µm Sn/Pb

5,08µm Sn

3,0

SPECIFY PLATING CODE XX=

0,25µm Au

Fig. 3

Pin Plating

Series 801...10-001

7,01

6,1

2,24

2,54

0,61

3,2

Straight Socket

01-50

Fig. 3

801-XX-0_ _-10-001000

Specify # of pins

Series 801...20-001

Right Angle Socket

801-XX-0 _ _-20-001000

Specify # of pins

01-50

1,27

Fig. 4

8,31

2,54

Fig. 4

Fig. 5

7,09

4,19

1,78

2,54

0,13

Series 801...40-002

SMT Right Angle Socket

801-XX-0 _ _-40-002000

Specify # of pins

XX= Plating Code

See Below

2,9

A = Number of Pins (2-10) x 2,54

02-10

1,27

2,24

2,79

0,56

2,54

For RoHS compliance, select plating code.

For the all gold option (XX=13) also change

part number from 80X-XX-0XX-10-0X2000

to 80X-13-0XX-10-0X2100

SPECIFY PLATING CODE XX=

0,76µm Au

10µ” Au

Sleeve (Pin)

0,25µm Au

200µ” Sn/Pb

5,08µm Sn/Pb 5,08µm Sn/Pb

200µ”Sn

5,08µm Sn 5,08µm Sn

0,76µm Au 5,08µm Sn/Pb

10µ” Au

0,76µm Au 5,08µm Sn

Fig. 5

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000

801-13-007-40-002000 Related Products

	801-13-007-40-002000	801-13-002-40-002000	801-13-004-40-002000	801-13-005-40-002000	801-13-006-40-002000	801-13-010-40-002000
Description	Board Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT	Board Connector, 2 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT	Board Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT	Board Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT	Board Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT	Board Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	GOLD (10)	GOLD (10)	GOLD (10)	GOLD (10)	GOLD (10)	GOLD (10)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	801	801	801	801	801	801
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	7	2	4	5	6	10
